Product Description

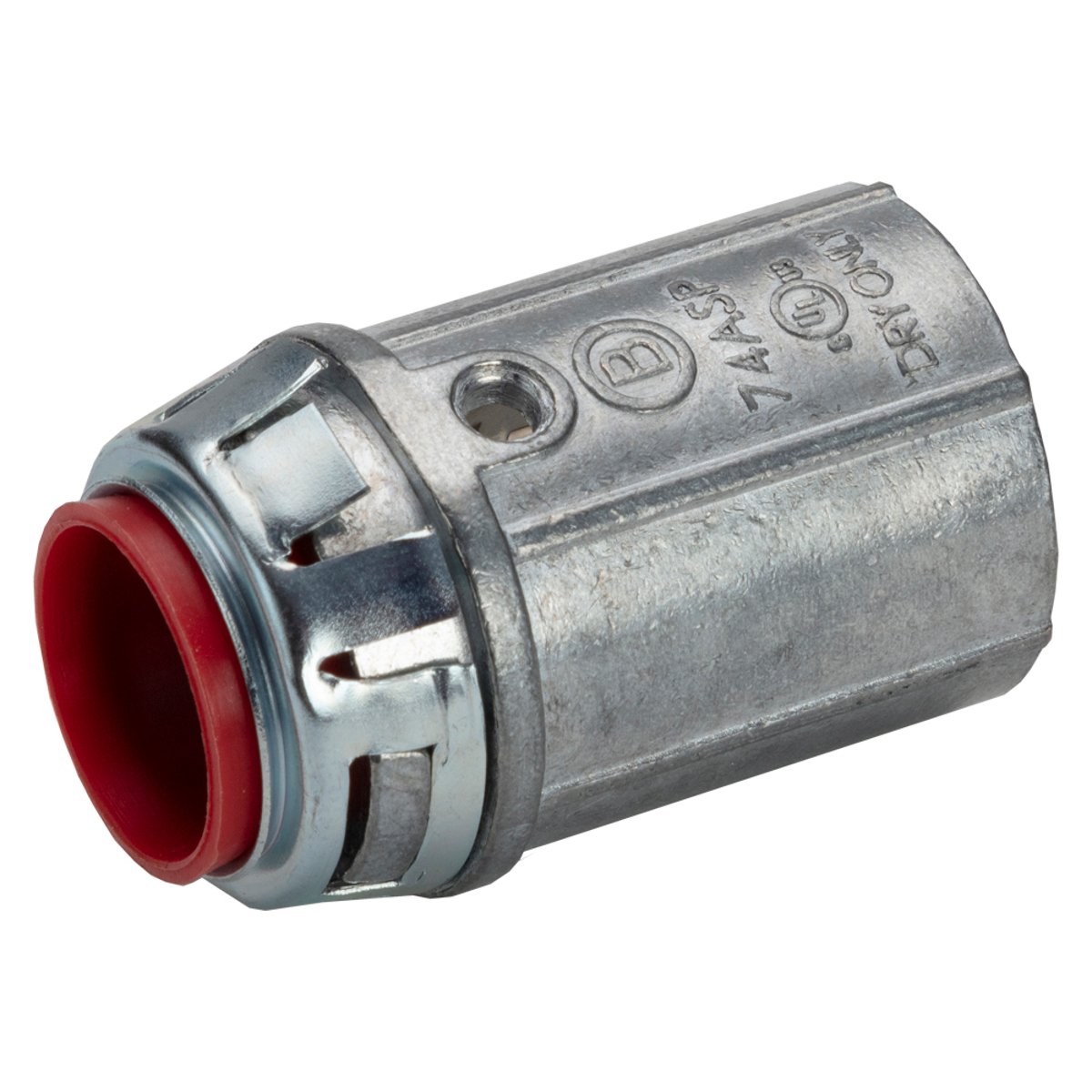

The Bridgeport 74ASP is a 3/4 E-Z LOCK Snap-in Connector designed for reliable and easy cable connections. This connector is suited for a variety of applications within electrical systems. With its robust construction, it ensures secure attachment for a stable electrical connection.
- Designed for cables sized 8/3 to 6/3
- Made of durable zinc die cast material
- UL514B compliant for safety standards
Product Highlights
The 74ASP connector allows for quick connections with minimal effort. Simply snap cables into the connector, and then snap the assembly into the electrical box for secure installation.
Product Information
Standard Information
-
Catalog Number: 74ASP
-
Manufacturer: Bridgeport Fittings, LLC
Technical Specifications
-
Conductor Range: Recommended cable types 8/3 to 6/3 (.73-.85 Dia.) Steel or Aluminum AC/AC90/ACG90/MC/MCI-A/HCF/HCFMCI-A
-
Material: Zinc Die Cast
-
Special Features: Integral internal spring steel locking tabs fasten cable or conduit
-
Standard: UL514B
-
Country of Origin: China
-
UPC: 781747085924
