Bridgeport 685-DC2 Cable Strap Connector 1-1/2 Inch Replacement MPN

Product Description

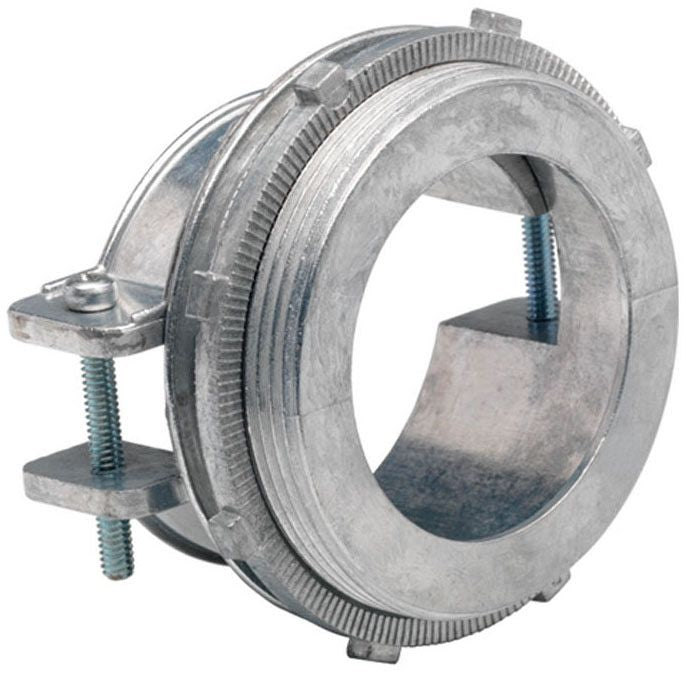

Bridgeport 685-DC2 is a cable strap connector designed for armored and metal clad cables. This model accommodates cable sizes from two zero to three conductor as well as one zero to four conductor. It is suitable for knockouts of one and a half inches.

• ROHS compliant
• Single cable opening
• UL approved with standard installation

Product Highlights

This cable strap connector provides a secure connection for metal clad cables. The design incorporates a threaded mount for durability and is made from die cast zinc for optimal strength.

Product Information

Standard Information

• Manufacturer: Bridgeport Fittings
• Material: Die Cast Zinc

Technical Specifications

• Approval: UL 514B
• Cable Opening: Single
• Cable/Conduit Type: Armored/Metal Clad Cable
• Cord Size: (4) 2 AWG to (3) 2/0 AWG
• Installation: (2) Screw, Strap
• Knockout Size: 1-1/2 inches
• Standard Package: 25
• Throat Type: Non-Insulated
• Type: Straight
