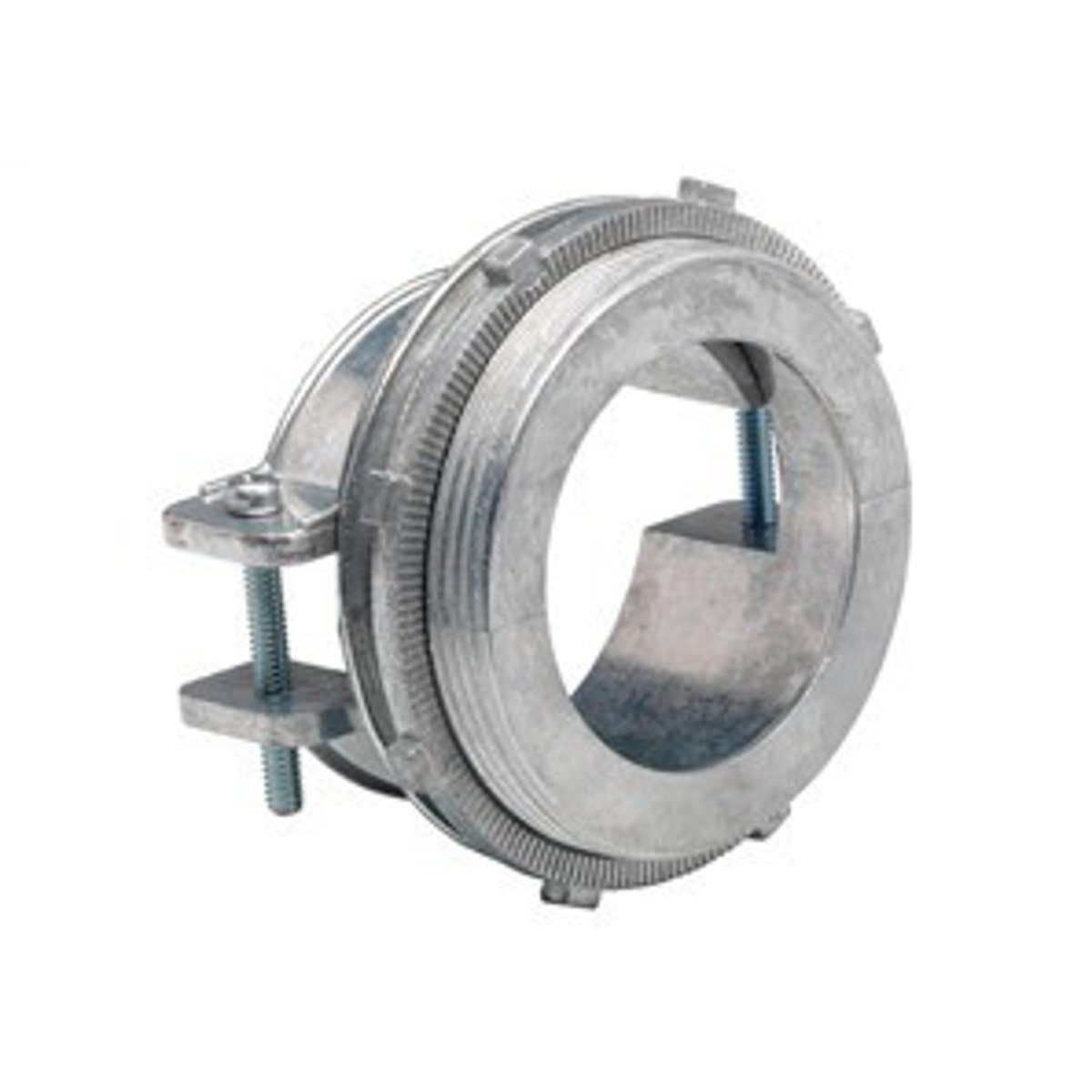

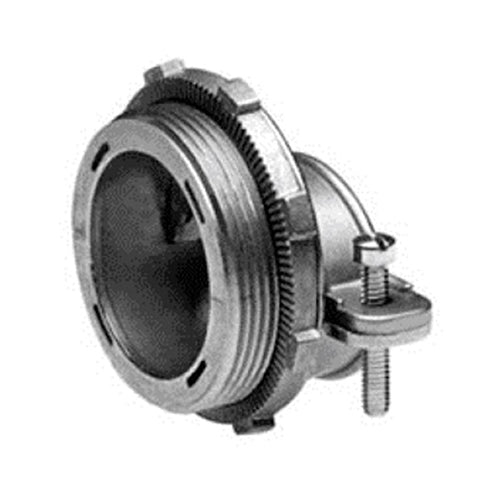

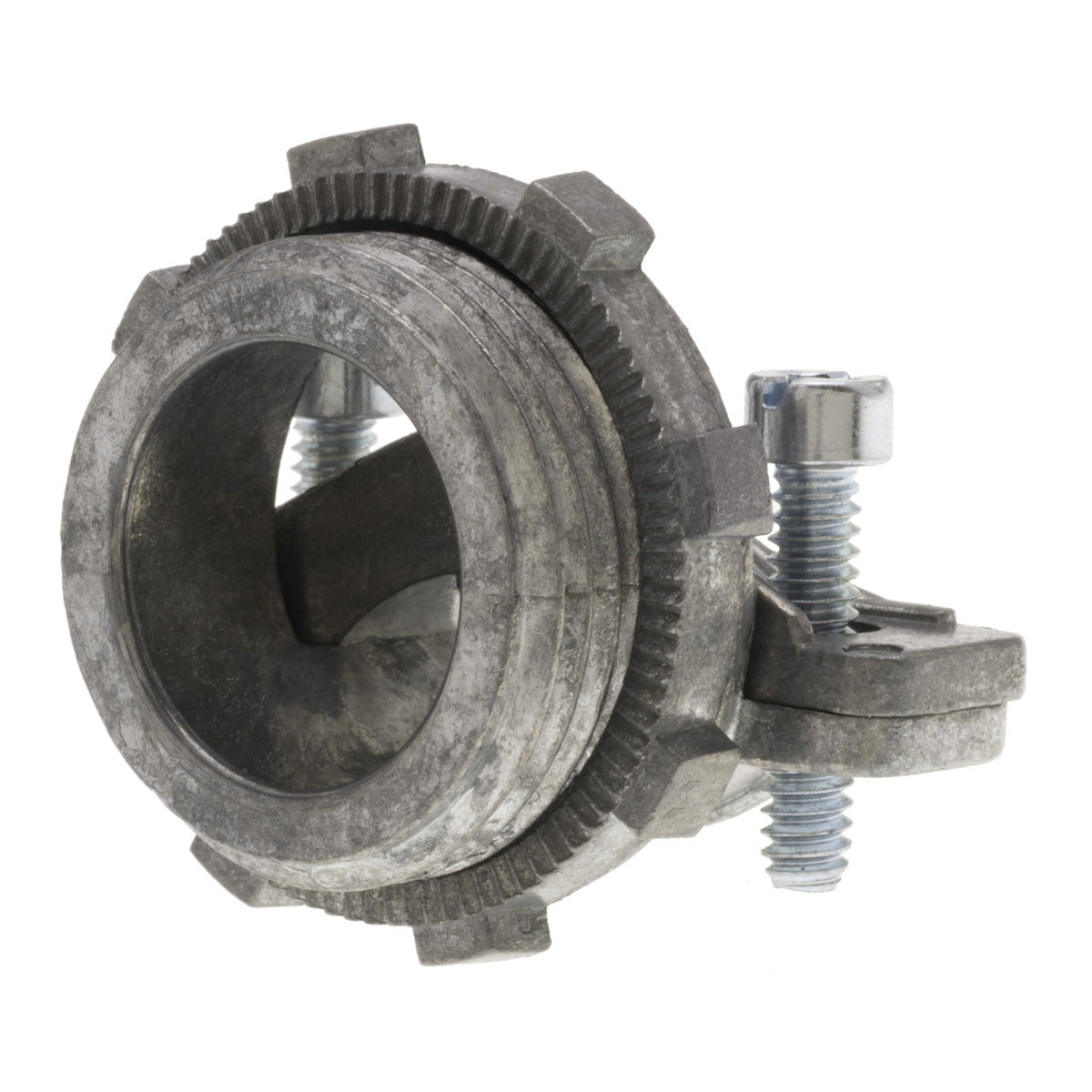

Bridgeport 683-DC2 Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1 Inch

Product Description

The BRIDGEPORT 683-DC2 is a connector, strap, two screw, made from zinc die cast with a 1 inch K.O. size. Recommended for use with steel or aluminum interlocked Metal Clad cable .875" to 1.04" (6/4 to 4/3). It ensures a secure connection when installing MC cable into a box or enclosure.

• Recommended cable types for use with steel or aluminum interlocked Metal Clad cable .875" to 1.04" (6/4 to 4/3)
• Fitted with two screws, this strap type connector ensures a high quality, secure connection
• Corrosion resistant die cast zinc connectors have a precise fit and finish for a trouble-free performance and ease of assembly

Product Highlights

This Bridgeport two-screw strap type connector promotes quality workmanship and installs quickly. It is corrosion resistant and ensures a secure connection.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 683-DC2
• Country of Origin: United States

Technical Specifications

• Catalog Number: 683-DC2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: United States
• Made in USA: Yes
• Application: Recommended cable types for use with steel or aluminum interlocked Metal Clad cable .875" to 1.04" (6/4 to 4/3)
• Conductor Range: 6/4 - 4/3
• Finish: Ball Burnished Mirror Smooth
• Material: Zinc Die Cast
• Number of Conductors: 1 Cable
• Standard: UL
• UPC: 781747156839
• GTIN: 00781747156839
• Item Type: Connector
• Size: 1 in
• Type: Straight
• Trade Size: 1 Inch
• Knockout Size: 1 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored/Metal Clad Cable
• Cord Size: (4) 6 AWG to (3) 4 (Metal Clad Cable)
• Length: 1-3/16 Inch
• Installation: (2) Screw, Strap
• Throat Type: Non-Insulated
• Approval: UL 514B
• ROHS Compatible: ROHS Compatible
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1

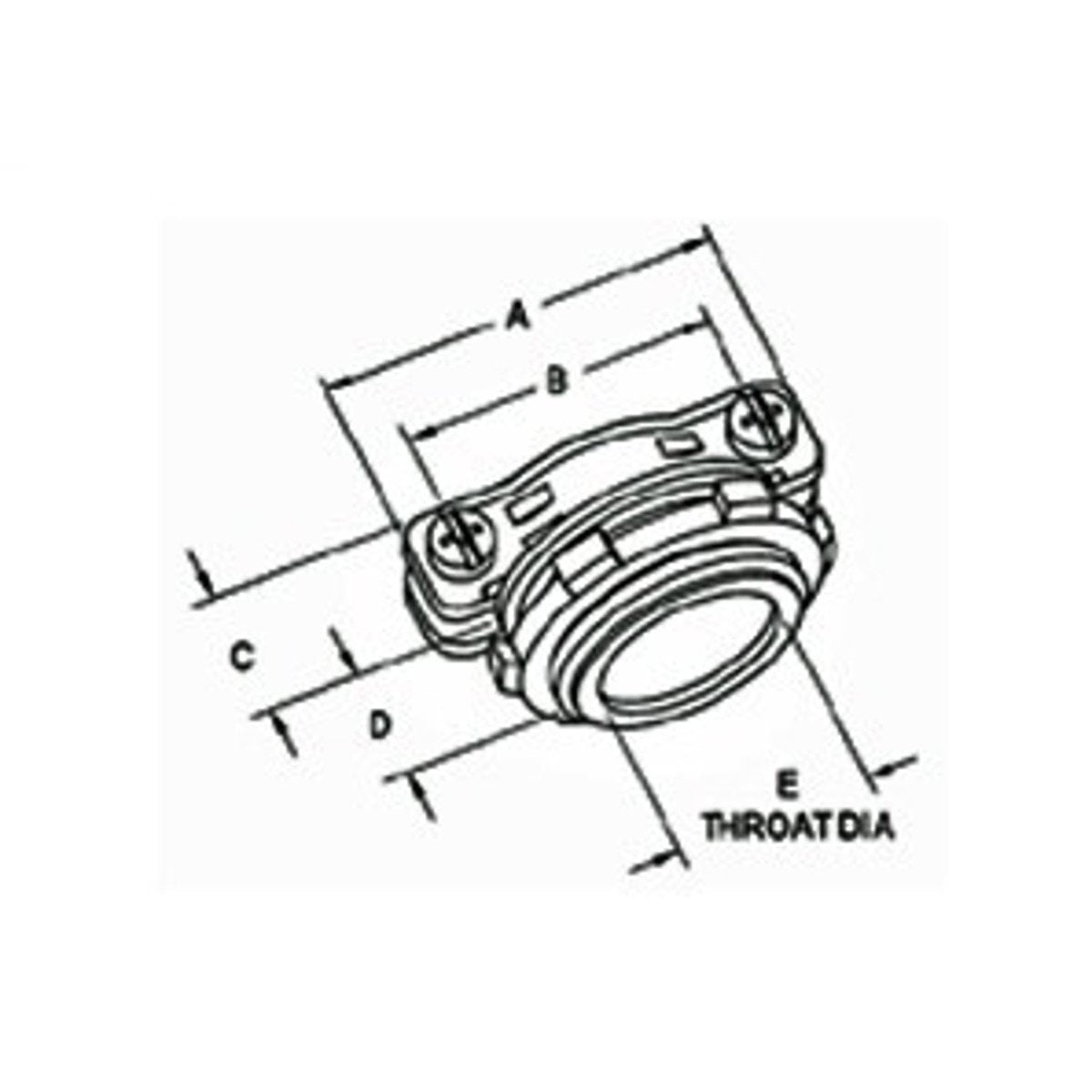

• Throat Size: 7/8 Inch Dia
• Angle: 180 Deg
• Connector Type: Large Size, Strap Type
• Ul Standard: UL-514B
