Product Description

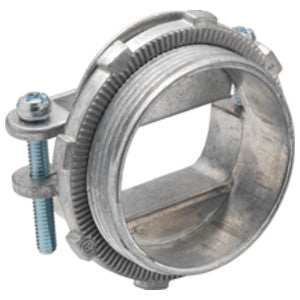

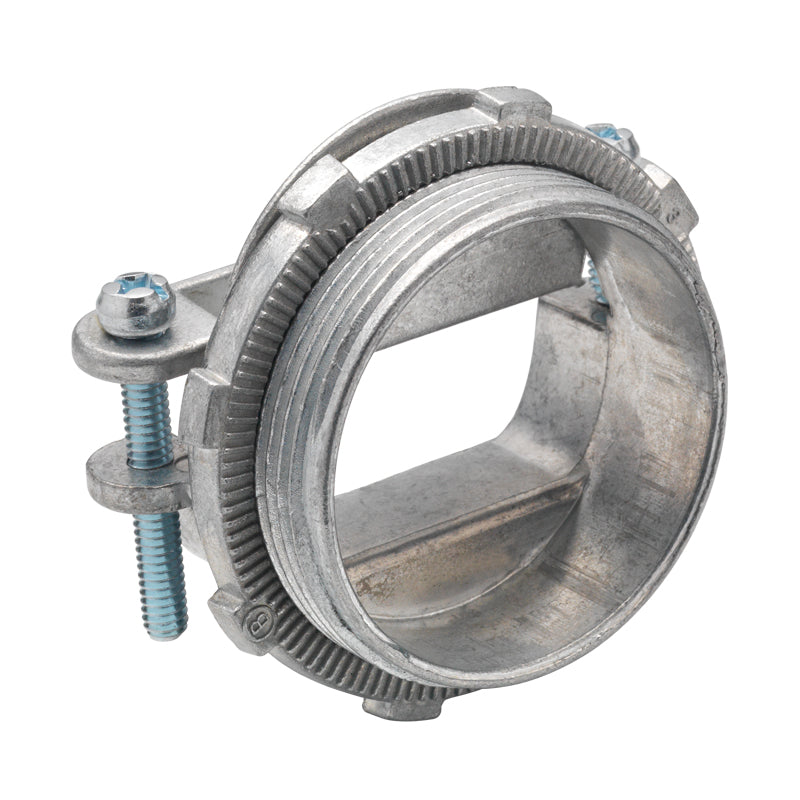

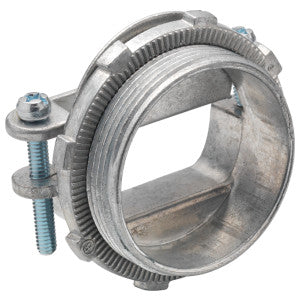

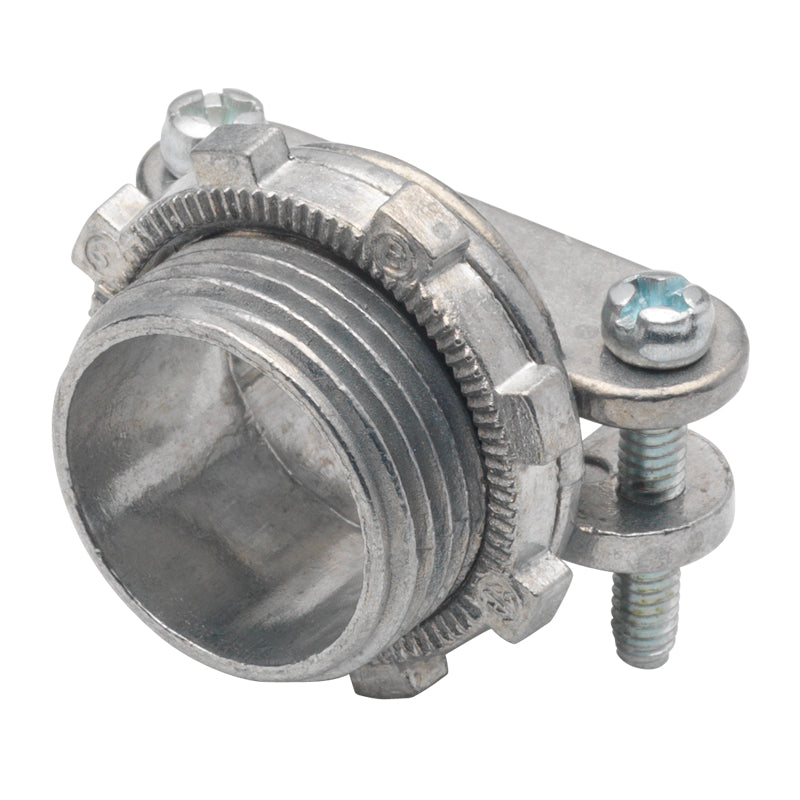

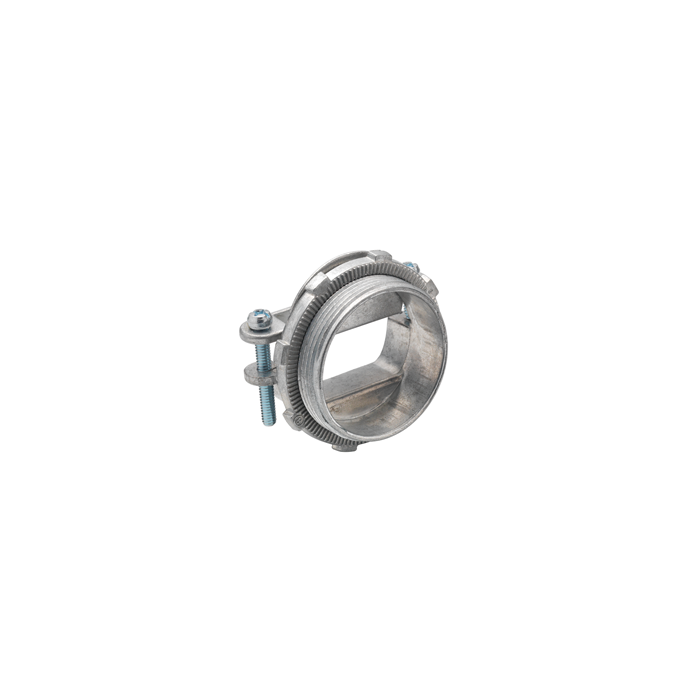

The Bridgeport 676DC2 Zinc Die Cast Service Entrance Oval Cable Connector is designed to securely connect oval service entrance cable to a box or enclosure. This 2-inch strap-type connector, made from a zinc alloy, ensures a proper electrical connection. It is furnished with a 2-way Phillips/Slotted head screw for easy installation and features a ball burnished mirror smooth finish. It is suitable for non-metallic/SJO oval cable with cable openings from 1.062 to 1.625 inches.
- Maintains secure electrical connection between oval cable and a box or enclosure.
- Features a two-screw strap design for secure cable connection.
- Constructed with a die-cast zinc body for corrosion resistance.
Product Highlights
Securely connects oval service entrance cable to enclosures, featuring a corrosion-resistant die-cast zinc body and a 2-way Phillips/Slotted head screw.
Product Information
Standard Information
-
Brand: BRIDGEPORT FITTINGS
-
Manufacturer Part Number: 676DC2
-
Country of Origin: United States
Technical Specifications
-
Finish: Ball Burnished Mirror Smooth
-
UL Standard: UL-514B
-
Material: Zinc Alloy
-
UNSPSC: 39121419
-
EAN/UCC-13: 0781747156761
-
GTIN: 30781747156748
-
Prop 65 Flag: No
-
UPC: 781747156761
-
Manufacturer: BRIDGEPORT FITTINGS
-
Suitable For Use With: Non-Metallic/SJO Oval Cable
-
Cable Openings: 1.062 to 1.625 in
-
Angle: 180 deg
-
Diameter: 2-5/8 in
-
Length: 3-1/2 in
-
Trade Size: 2 in
-
Applications: For connecting nonmetallic cable to box or enclosure.
-
Connector Type: Two-Screw, Strap Type
-
Type: Connector
-
ECCN: EAR99
-
Color Family: Metallic
