Bridgeport 670DC2 3/4 in Strap-Type Conn. Box of 25

Product Description

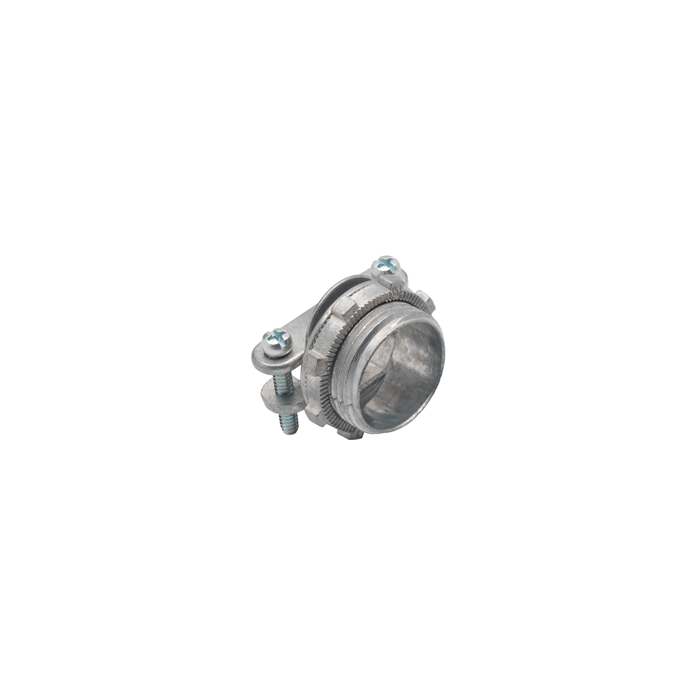

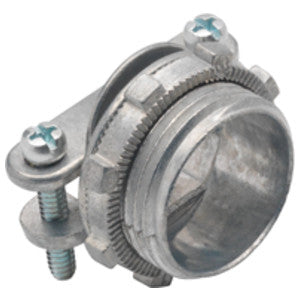

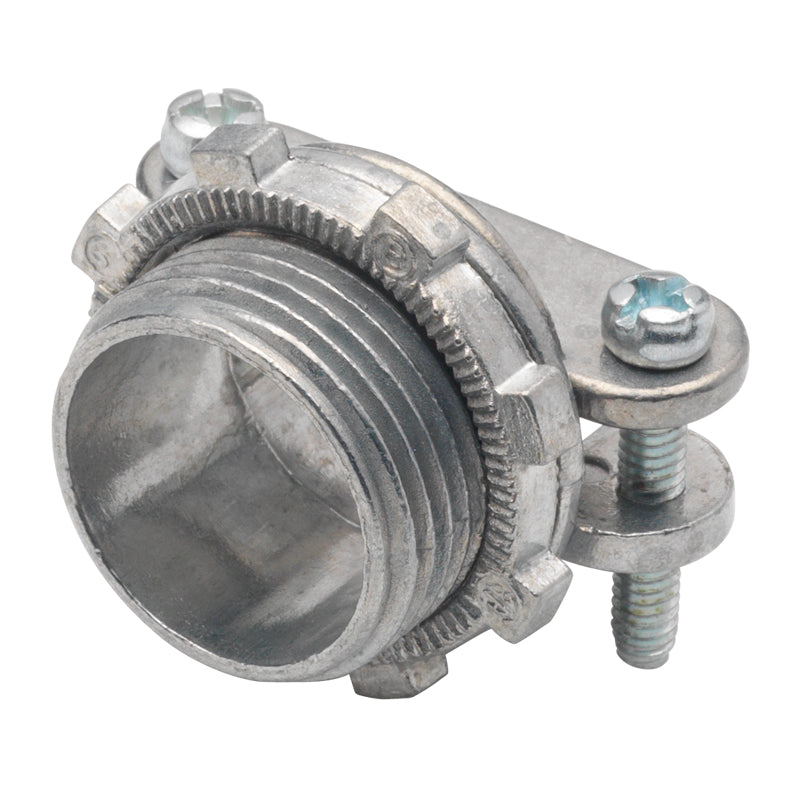

The Bridgeport 670DC2 Zinc Die Cast Service Entrance Oval Cable Connector securely connects oval service entrance cable to a box or enclosure. This 3/4 inch connector is made from zinc die cast with a ball burnished mirror smooth finish, ensuring corrosion resistance. It is furnished with a 2-way Phillips/Slotted head screw for secure installation.

• Maintains a proper electrical connection between oval cable and a box or enclosure.
• Features a two-screw strap for secure connection of oval service entrance cable.
• Constructed from die-cast zinc for natural corrosion resistance and long-term durability.

Product Highlights

Securely connects 3/4 inch oval service entrance cable to electrical enclosures using a corrosion-resistant zinc die-cast body and a 2-way Phillips/Slotted head screw.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 670DC2
• Country of Origin: US - United States

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• Standards: UL 514B, NEMA FB-1, CSA LR39354 Certified, Federal Specification A-A-50552
• Material: Zinc Die Cast
• UNSPSC: 39121419
• UPC: 781747156709
• Series: 670
• Compatible Cable Type: Non-Metallic Cable, Oval Service Entrance Cable
• Nominal Size: 3/4 Inch
• Connection Type: 2-Screw Strap-Type, Phillips/Slotted Head Screw
• Angle: 180 deg
• Throat Diameter: 0.812 in
• ECCN: EAR99
• Country of Origin: US - United States
• Application: For connecting nonmetallic cable to box or enclosure.
