Bridgeport 657-DC2 1 inches FMC Two Screw Strap Type Connector, Zinc Die Cast

Product Description

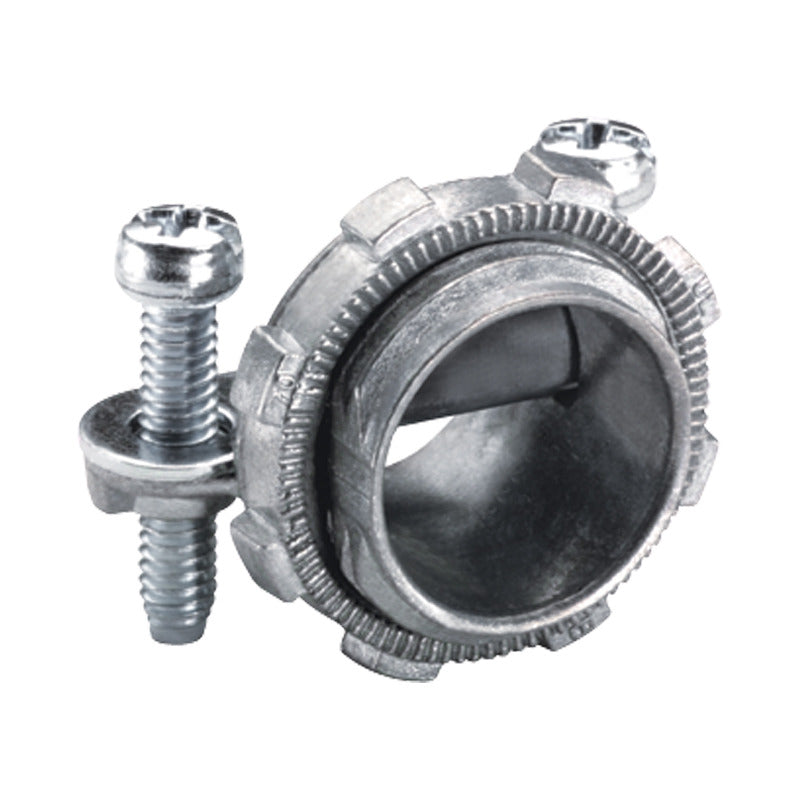

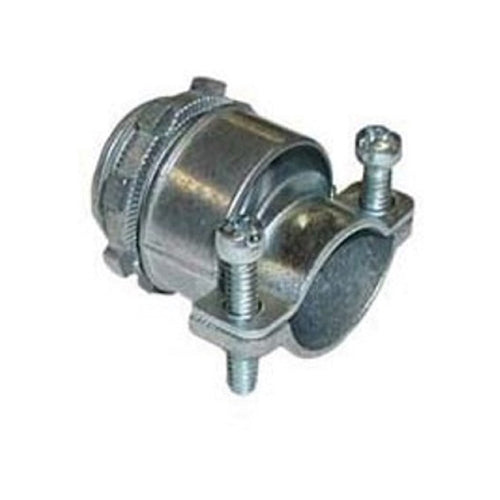

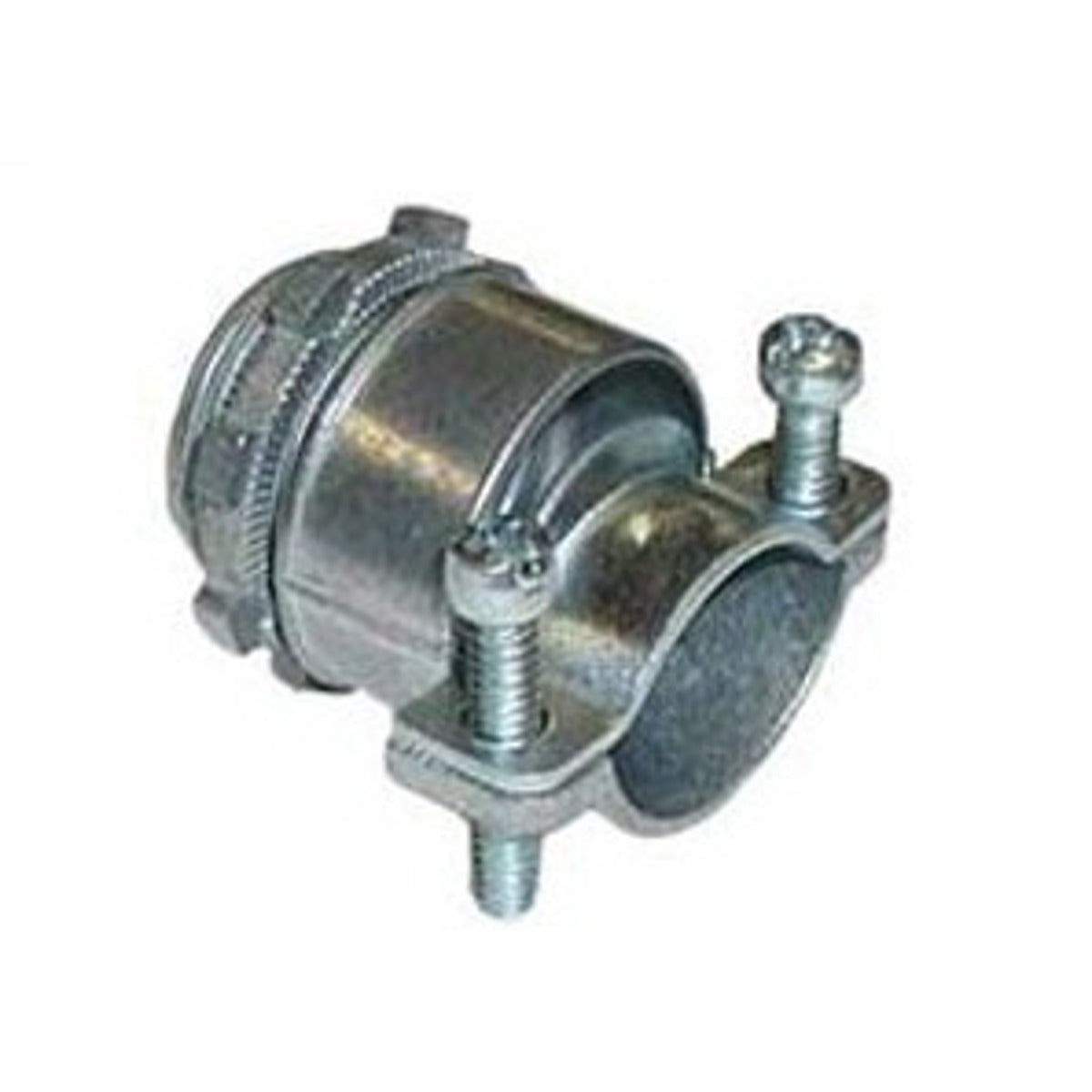

The BRIDGEPORT 657-DC2 is a two screw strap type connector used to connect AC/MC and FMC to a box or enclosure. It is designed for use with 1" flexible metal conduit or HCF cable when installing into a 1" knockout. The connector accommodates conductor ranges from 4/3 to 1/3.

• Connects AC/MC/FMC to box or enclosure
• Constructed from zinc die cast material with a ball burnished finish
• Features a two-screw strap for secure installation

Product Highlights

This Bridgeport connector ensures a reliable connection for armored/metal clad cable and flexible metal conduit applications.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 657-DC2
• Country of Origin: CHN

Technical Specifications

• Catalog Number: 657-DC2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: China
• Made in USA: No
• Application: Two screw strap type connector used to connect AC/MC/FMC to box or enclosure. 4/3 (1.03" 0 min) to 1/3 (1.31" 0 max)
• Conductor Range: 4/3 - 1/3
• Finish: Ball Burnished
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Number of Conductors: 1 Cable
• Special Features: HCF
• Standard: UL
• Item Type: Connector
• Size: 1 in
• Type: Straight
• Trade Size: 1 Inch
• Knockout Size: 1 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored/Metal Clad Cable, Flexible Metal Conduit
• Cord Size: (3) 4 AWG to (3) 1 AWG (Armored/Metal Clad Cable)
• Installation: (2) Screw, Strap
• Approval: UL 514B
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1

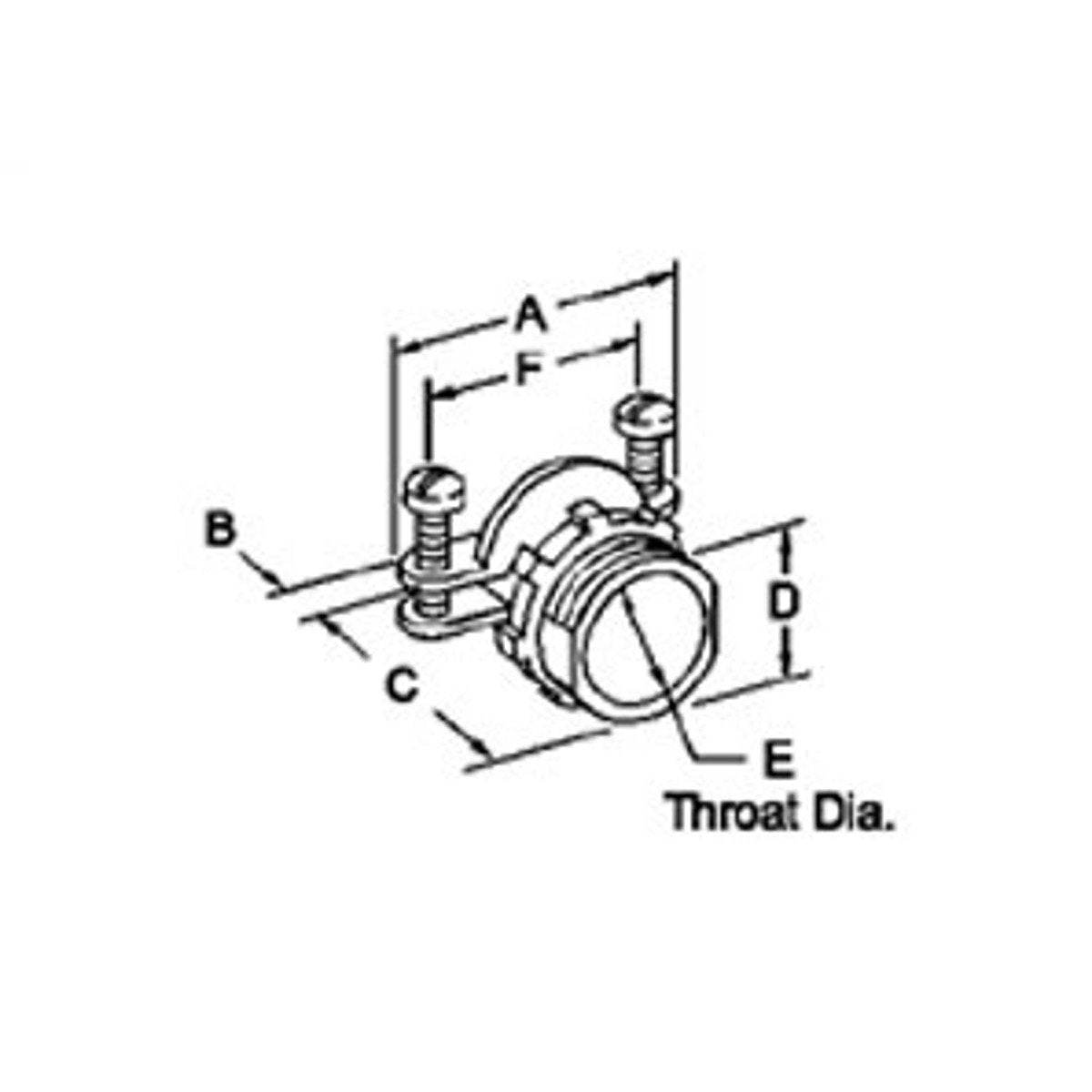

• Throat Size: 1 Inch Dia
• Angle: 180 Deg
• 12-Digit UPC: 781747156570
• Ul Standard: UL-514B
• Cable Openings: 1.03 to 1.31 in
• Diameter: 1-3/4 in
• Suitable For Use With: 4/3 to 1/3 AWG AC/MC/HCF Cable and 1 in Flexible Metal Conduit
