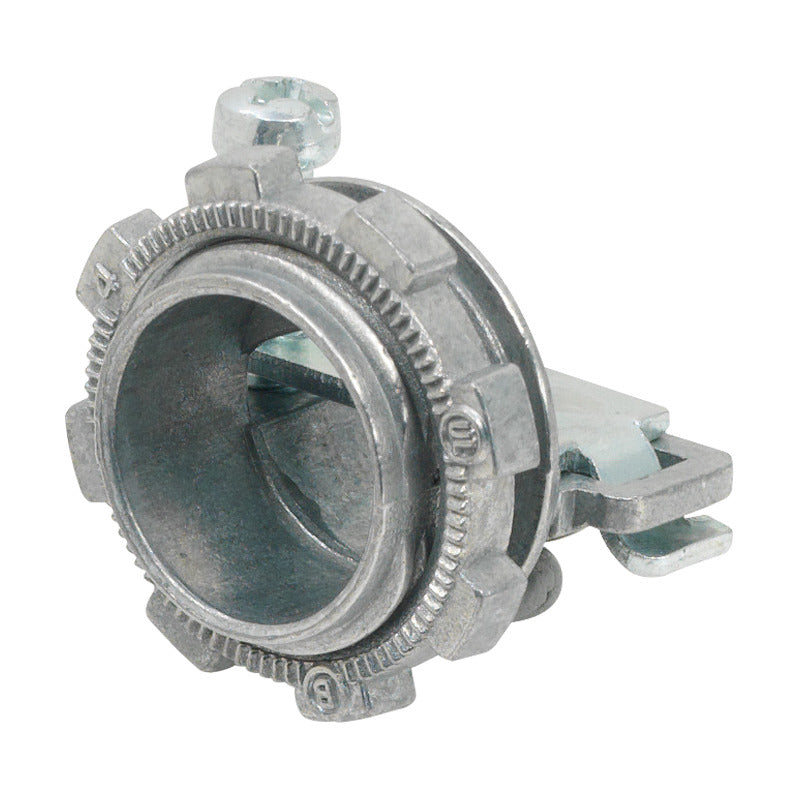

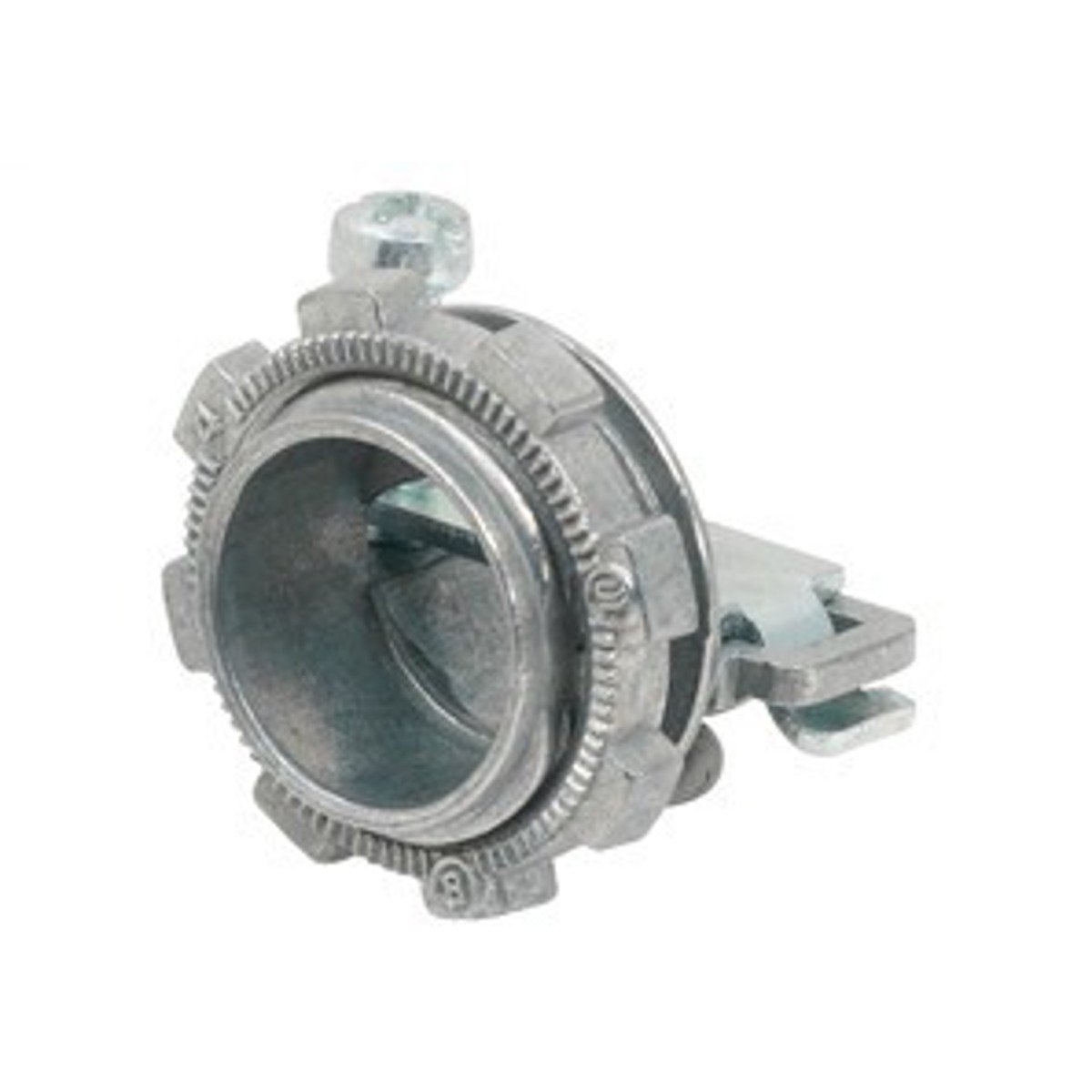

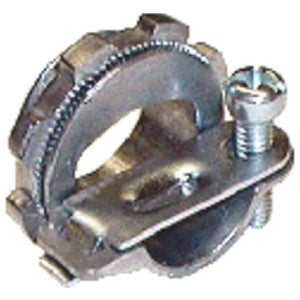

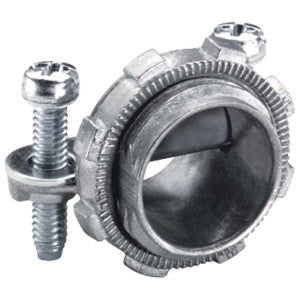

Bridgeport 651-DC2 Connector, Strap, Single Screw, Zinc Die Cast, Oval Cable, Size K.O. 1/2 Inch

Product Description

The BRIDGEPORT 651-DC2 is a connector designed for connecting nonmetallic cable to a box or enclosure, accommodating one or two cables. Constructed from zinc die cast with a ball burnished finish, this connector features a 2-way Phillips/Slotted Head Screw. It is suitable for use with NM or SJO cables.

• Connects nonmetallic cable to box or enclosure
• Accommodates one or two cables
• Features a 2-way Phillips/Slotted Head Screw

Product Highlights

Zinc die cast construction ensures durability. Ball burnished finish provides a smooth surface. UL listed for safety.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 651-DC2
• Country of Origin: China

Technical Specifications

• Catalog Number: 651-DC2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: China
• Made in USA: No
• Application: For connecting nonmetallic cable to box or enclosure. It can be used for one or two cables.
• Finish: Ball Burnished
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Special Features: Furnished with 2-way Phillips/Slotted Head Screw
• Standard: UL
• UPC: 781747156518
• GTIN: 00781747156518
• Item Type: Connector
• Trade Size: 1/2 Inch
• Cable Type: Non-Metallic Cable/SJO Cable
• Cable Size: (2) 14 to 12 AWG or (2) 14 to (3) 10 AWG (Non-Metallic Cable), (3) 18 to 12 AWG (SJO Cord Cable)
• Throat Type: Insulated
• Knockout Size: 3/8 Inch
• Approval: UL 514B
• ROHS Compliant: True
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1
• Throat Diameter: 5/8 Inch
• ECCN: EAR99
• UNSPSC: 39121419
• Connection Type: Single Screw
• Type: Strap
• Lug Type: Oval Cable
• Standards: UL-514B
