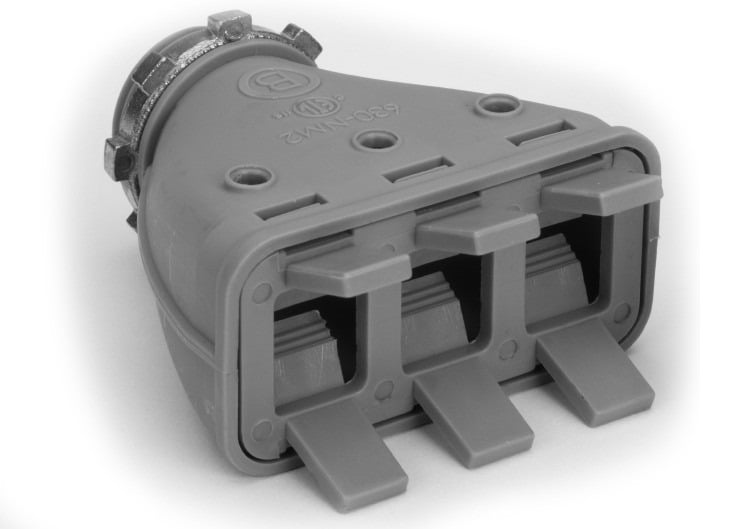

Bridgeport 630-NM2 Mighty-Merge Transition Fittings 3/4 Multi-NM Connector

Product Description

The Bridgeport 630-NM2 is designed to allow multiple nonmetallic cables to be connected into a single three-quarter knockout. It enables easy installation or removal of cables by simply squeezing the tabs. This fitting is ideal for the prefabrication of cable bundles, offering significant labor savings compared to traditional junction boxes and fitting assemblies.

• Each port accommodates one ten AWG through fourteen AWG cable
• Can hold two oval cables ranging from ten AWG to fourteen AWG
• Patented design enhances efficiency during installation

Product Highlights

This connector provides a streamlined solution for efficient cable management in various installations.

Product Information

Standard Information

• Brand: Bridgeport
• Catalog Number: 630-NM2

Technical Specifications

• Manufacturer: Bridgeport Fittings, LLC
• Material: Plastic
• Conductor Range: 10/3 through 14/2 AWG
• NEMA Rating: FB-1
• Country of Origin: China
• UPC: 781747406309
• GTIN: 00781747406309
• Item Type: Connector
• Application: Allows for multiple cable installations in a single knockout
