Product Description

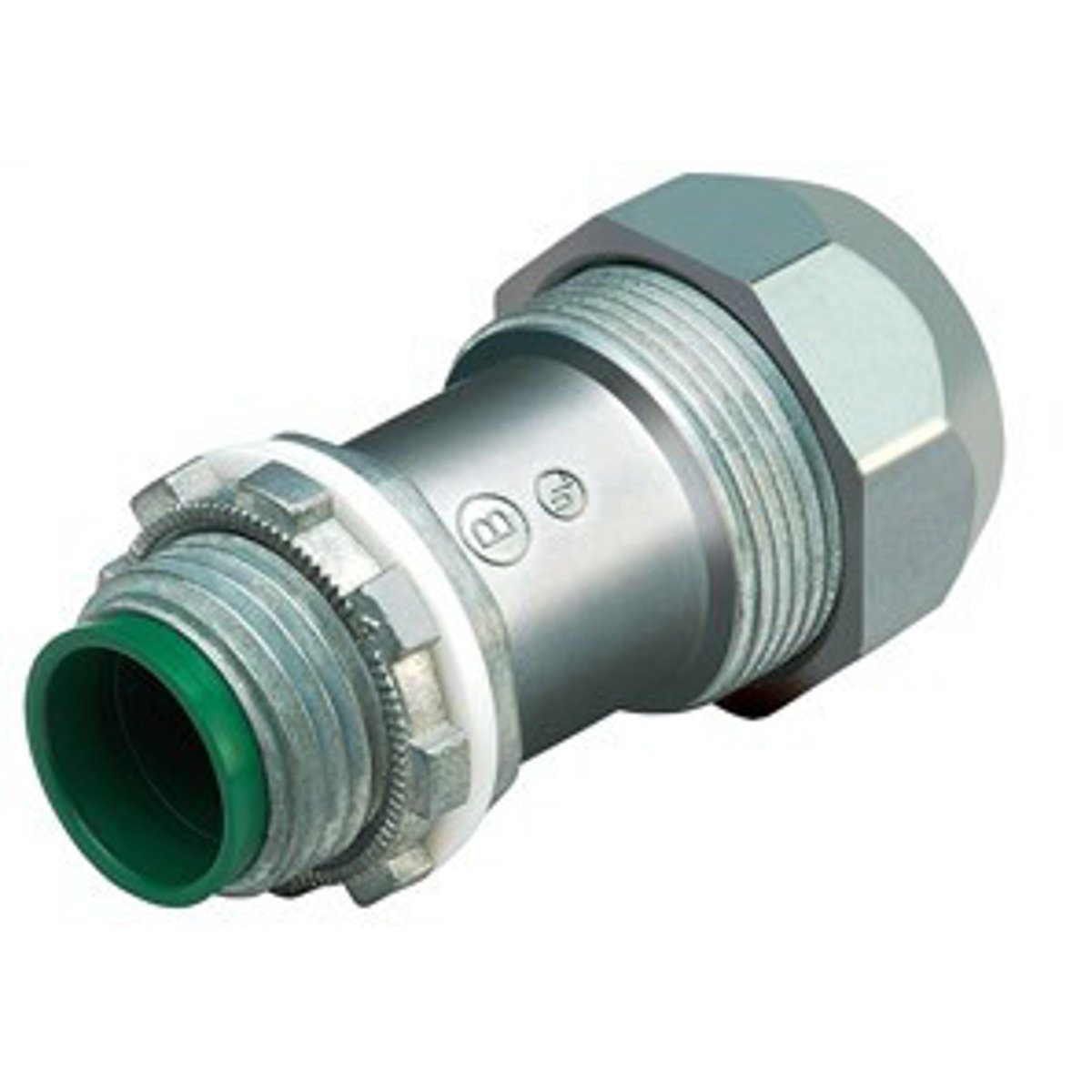

The Bridgeport 595-DCI2 is a Mighty-Seal Jacketed MC cable connector designed for safe and effective connections in various electrical applications. This connector accommodates cable diameters from .50 to .61 inches and is suitable for wire sizes between 12/2 and 10/3 PVC jackets. The product features a RainTight and ConcreteTight design, making it ideal for outdoor and concrete encased installations.
- Compatible with 12/2 to 10/3 PVC Jacket MC Cable.
- Construction: Zinc Die Cast with insulated throat.
- Rated for 90 Degrees Celsius temperature.
Product Highlights
Durable zinc die cast construction, designed for reliability and safety in electrical installations.
Product Information
Standard Information
-
Manufacturer: Bridgeport Fittings, LLC
-
Country of Origin: China
Technical Specifications
-
Catalog Number: 595-DCI2
-
UPC: 781747165954
-
GTIN: 00781747165954
-
Material: Zinc Die Cast
-
Finish: Ball Burnished
-
NEMA Rating: FB-1
-
Conductor Range: 12/2 to 10/3
-
Special Features: JMC/TECK90
-
Application: RainTight and ConcreteTight
-
Number of Conductors: 1 Cable
-
Temperature Rating: 90 Degrees C
-
Standard: cULus
