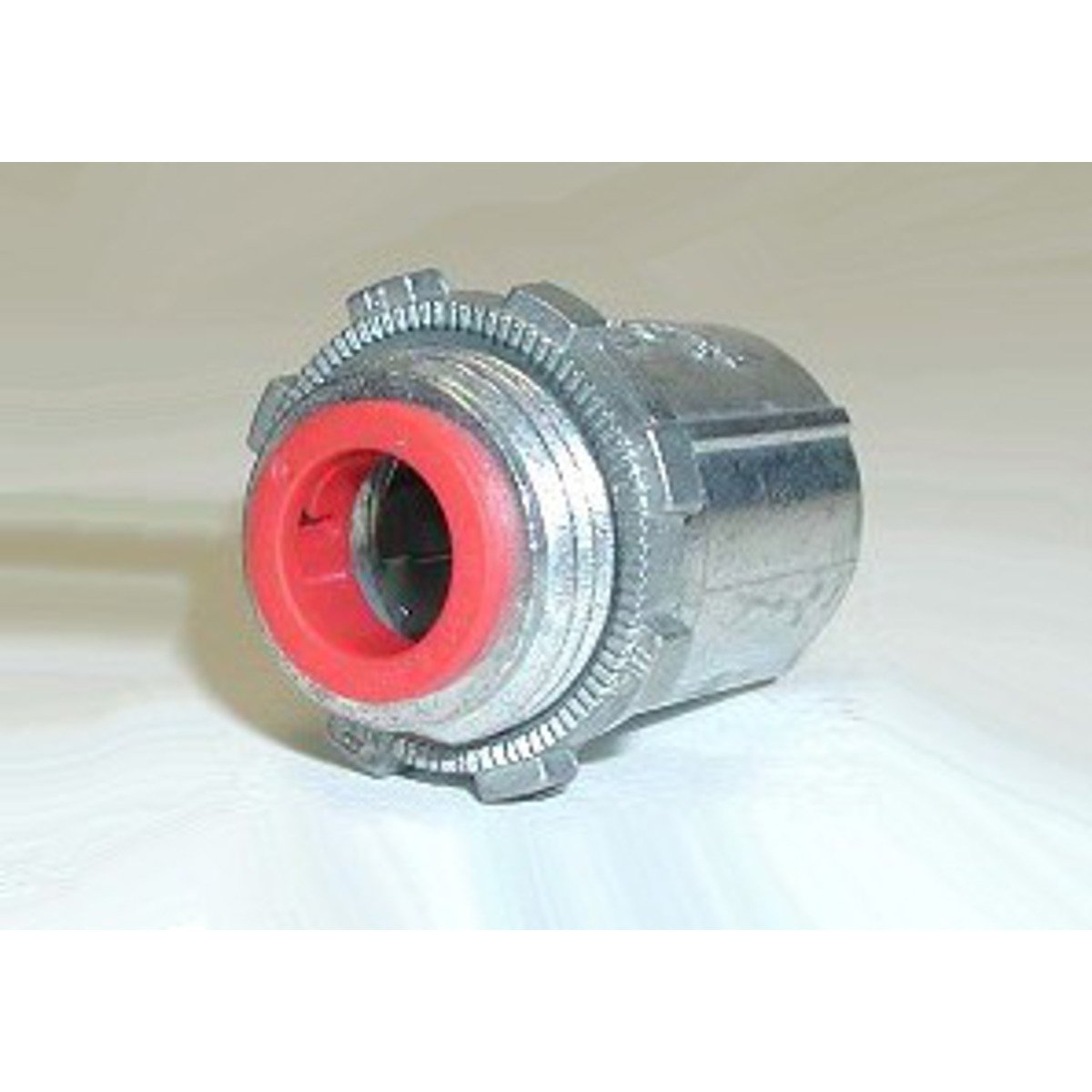

Bridgeport 590-DCI2 AC/MC Snap Type Connector Insulated 3/8 in

Product Description

The Bridgeport 590-DCI2 is an AC/MC Snap Type Connector designed for easy and secure connections in electrical fittings. This connector is suitable for use with various cable types, including Steel or Aluminum 14/2 to 10/3 AC or MC Cable, and can also accommodate 3/8 Flexible Metal Conduit to a box or enclosure.

• Ideal for Steel or Aluminum AC or MC cable connections
• Allows for secure attachment to flexible metal conduits
• Made in the United States with durable materials

Product Highlights

This connector is made using zinc die cast with a spring steel inner locking ring for enhanced durability. It is equipped with a ball burnished finish for better corrosion resistance.

Product Information

Standard Information

• Catalog Number: 590-DCI2
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Material: Zinc Die Cast with Spring Steel Inner Locking Ring
• Conductor Range: 14/2 (.43 0 min) to 10/3 (.61 0 max)
• Application: AC or MC Cable connections and metal conduit installations
• NEMA Rating: FB-1
• Number of Conductors: 1 Cable
• Size: 3/8 in
• Temperature Rating: 105 Degrees C
• Country of Origin: United States
