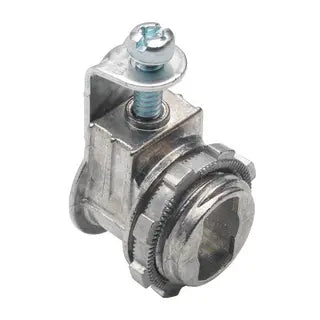

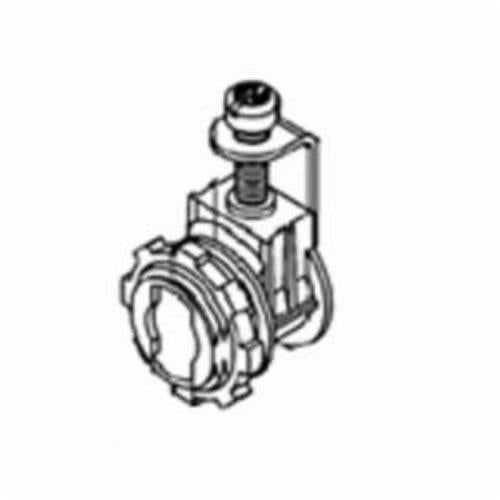

Bridgeport 560-DC2 Single-Screw Strap-Type Die Cast Connector, 3/8 in

Product Description

The Bridgeport 560-DC2 is a single-screw strap-type die-cast connector. This connector has a trade size of three-eighths of an inch. It is designed for use with various cable types, including AC, MC, and NM cables. This connector is suitable for connecting cables to electrical boxes or enclosures.

• Compatible with cable openings from zero point four four inches to zero point six one inches
• Constructed with zinc die-cast for durability
• Standard applications include MC, AC, and flexible metal conduit

Product Highlights

The 560-DC2 connector features a single screw for secure installation. Ideal for electrical installations, it ensures a reliable connection for multiple types of cable. This connector is compliant with UL and CSA standards.

Product Information

Standard Information

• Manufacturer: Bridgeport Fittings, LLC
• Trade Size: 3/8 inches

Technical Specifications

• Material: Zinc Die Cast
• Dimensions: 1-1/8 inches high
• Cable Openings: 0.44 to 0.61 inches
• Angle: 180 degrees
• Number of Conductors: 1 Cable
• Finish: Ball Burnished
• Standard: UL, CSA
• Country of Origin: USA
