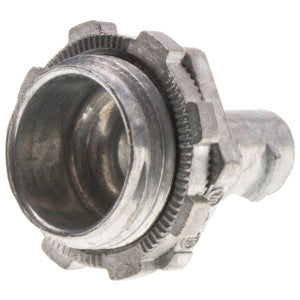

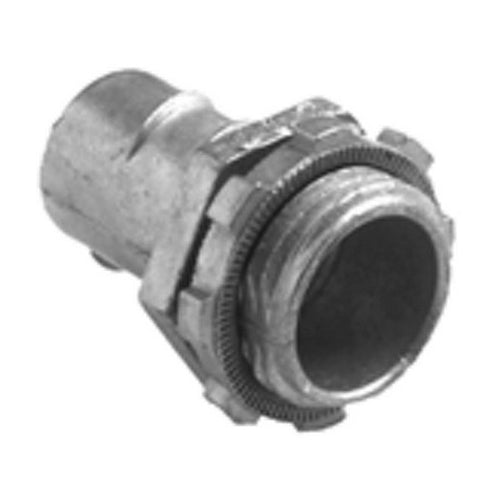

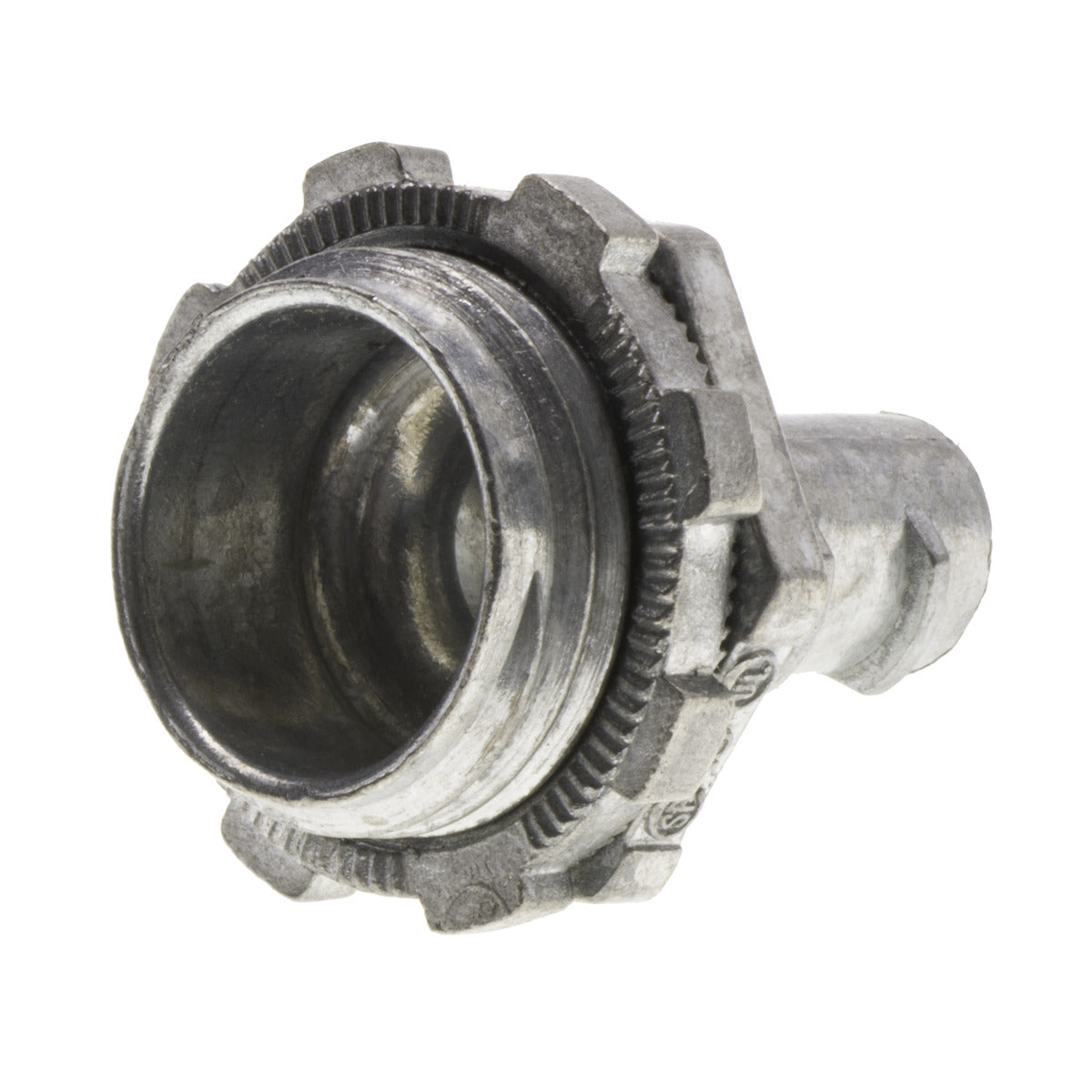

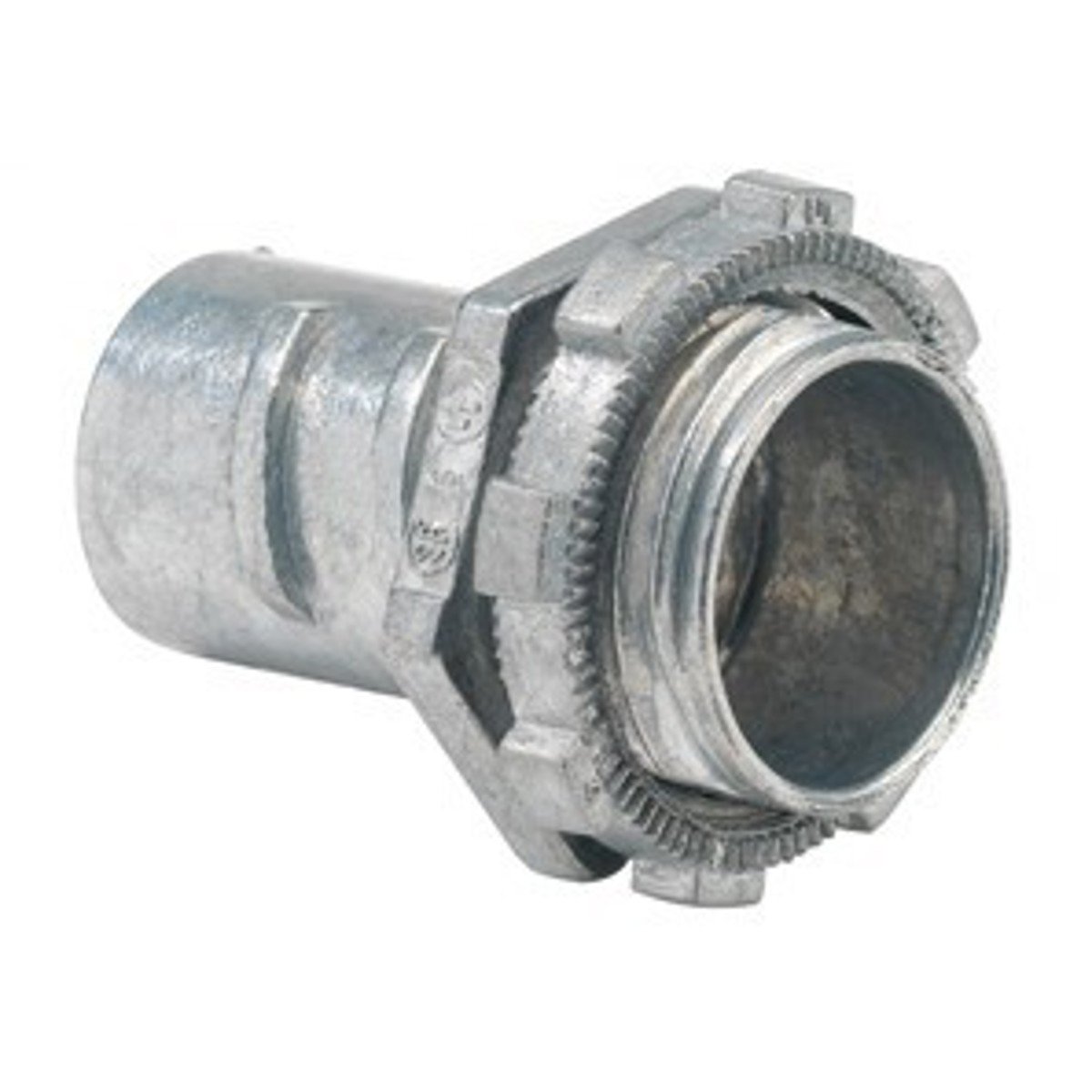

Bridgeport 525-DC2 Connector, Screw-In, Zinc Die Cast, Flex Size 2 Inch

Product Description

The BRIDGEPORT 525-DC2 is a screw-in connector used to connect flexible metal conduit to a box or enclosure. Constructed from zinc die cast with a ball burnished finish. This straight type connector features a 2 inch trade size and knockout size, with a single cable opening. It is UL listed and ROHS compliant.

• Connects flexible metal conduit to box or enclosure
• Made from zinc die cast with a ball burnished finish
• Features a screw-in design for quick installation

Product Highlights

This Bridgeport screw-in connector provides a reliable connection between flexible metal conduit and electrical boxes, ensuring secure and efficient installations.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 525-DC2
• Country of Origin: United States

Technical Specifications

• Catalog Number: 525-DC2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: United States
• Made in USA: Yes
• Application: Used to connect flexible metal conduit to box or enclosure.
• Finish: Ball Burnished
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Standard: UL
• UPC: 781747155252
• GTIN: 00781747155252
• Item Type: Connector
• Size: 2 in
• Type: Straight
• Trade Size: 2 Inch
• Knockout Size: 2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Flexible Metal Conduit
• Installation: Screw-In
• Throat Type: Non-Insulated
• Approval: UL 514B
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1
• Throat Size: 1.962 Inch Dia
• Country Of Origin: USA
• Angle: 180 Deg
• Applications: Used to connect flexible metal conduit to box or enclosure.
• Connector Type: Screw-In
• Connection Type: Screw-In
• Use With: Flexible Metallic Conduit
• Diameter: 2 in
• Ul Standard: UL-514B
• UNSPSC: 39121419
• EAN: 0781747155252
