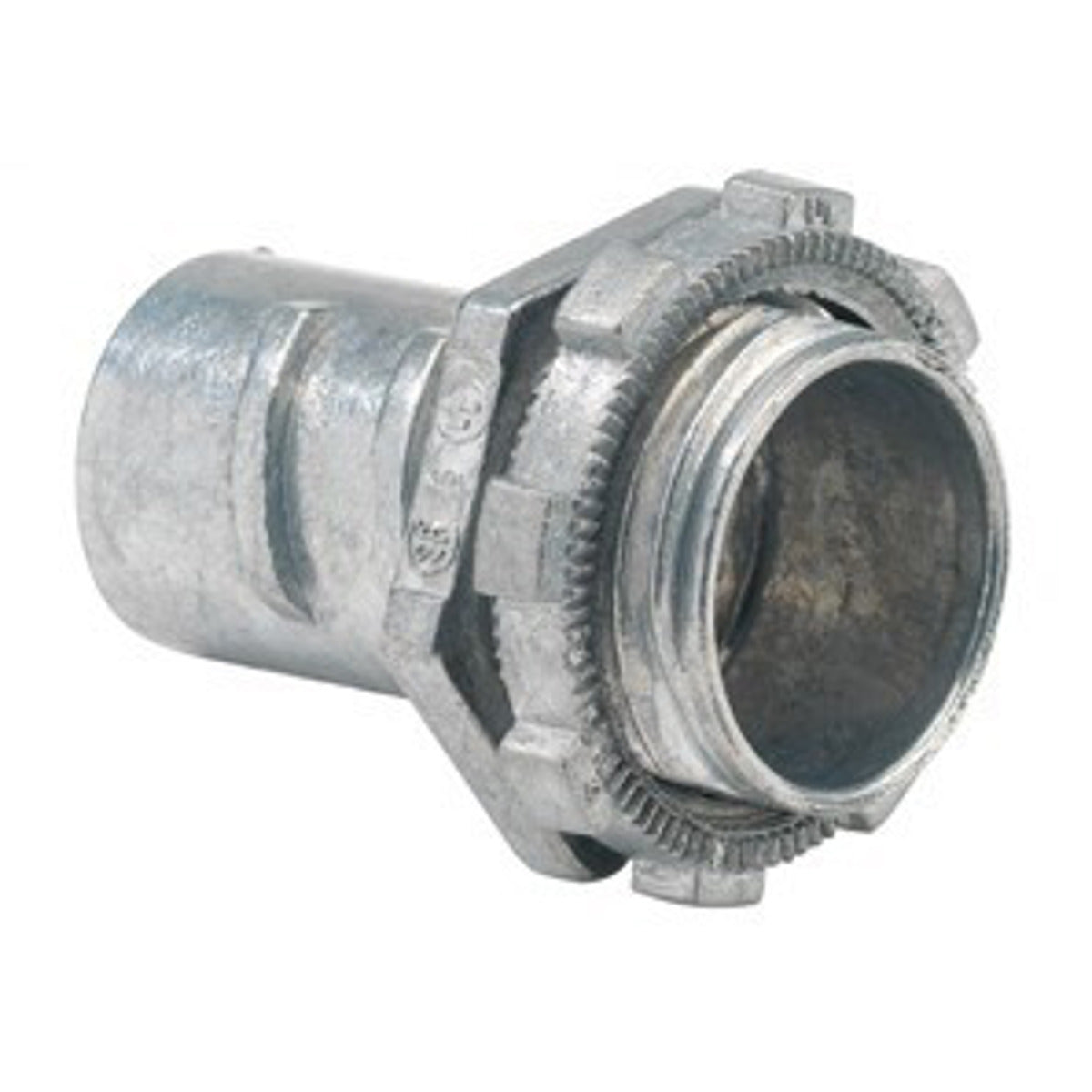

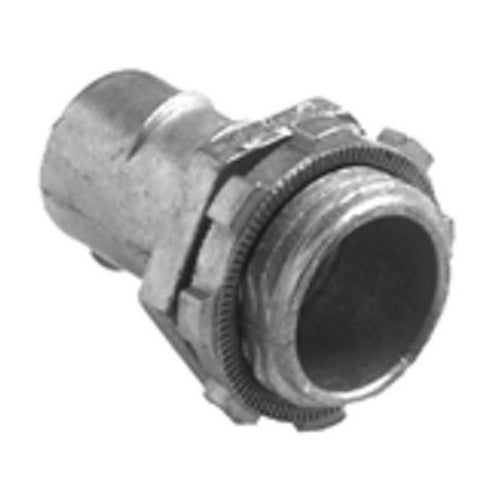

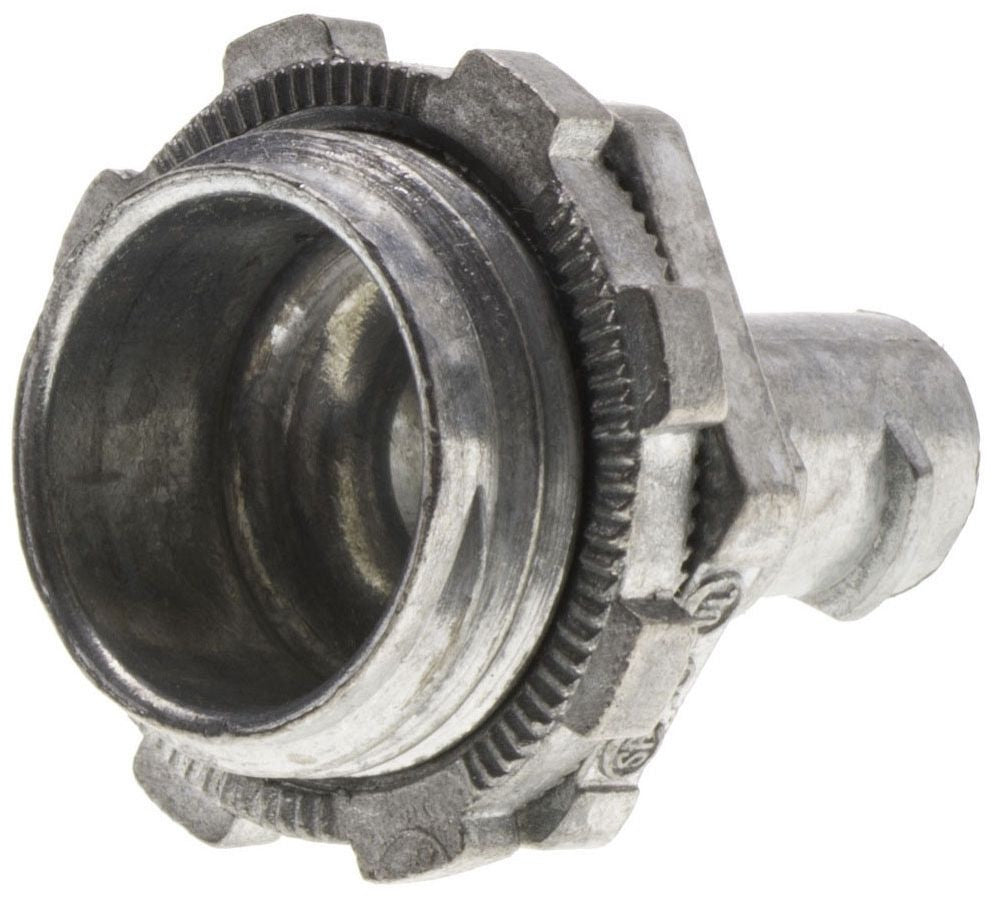

Bridgeport 523-DC2 Connector, Screw-In, Zinc Die Cast, Flex Size 1-1/4 Inch

Product Description

The BRIDGEPORT 523-DC2 is a screw-in connector used to connect flexible metal conduit to a box or enclosure. Constructed from zinc die cast with a ball burnished finish. This straight type connector has a trade size and knockout size of 1-1/4 Inch. It conforms to UL 514B and NEMA FB-1 standards.

• Connects flexible metal conduit to box or enclosure
• Made from ball burnished mirror smooth die-cast zinc
• Features a non-insulated throat type

Product Highlights

The Bridgeport 523-DC2 is a reliable connector for flexible metal conduits, ensuring secure and compliant connections in various applications.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 523-DC2
• Country of Origin: United States

Technical Specifications

• Catalog Number: 523-DC2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: United States
• Made in USA: Yes
• Application: Used to connect flexible metal conduit to box or enclosure.
• Finish: Ball Burnished
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Standard: UL
• UPC: 781747155238
• GTIN: 00781747155238
• Item Type: Connector
• Size: 1 1/4 in
• Type: Straight
• Trade Size: 1-1/4 Inch
• Knockout Size: 1-1/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Flexible Metal Conduit
• Installation: Screw-In
• Throat Type: Non-Insulated
• Approval: UL 514B
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1
• Throat Size: 1.191 Inch Dia
• Angle: 180 Deg
• Connection Type: Screw-In
• Use With: Flexible Metallic Conduit
• ECCN: EAR99
• UNSPSC: 39121419
