Bridgeport 389-DC40 Bushing, Insulated, Grounding, Zinc Die Cast, Size 3 1/2 Inch

Product Description

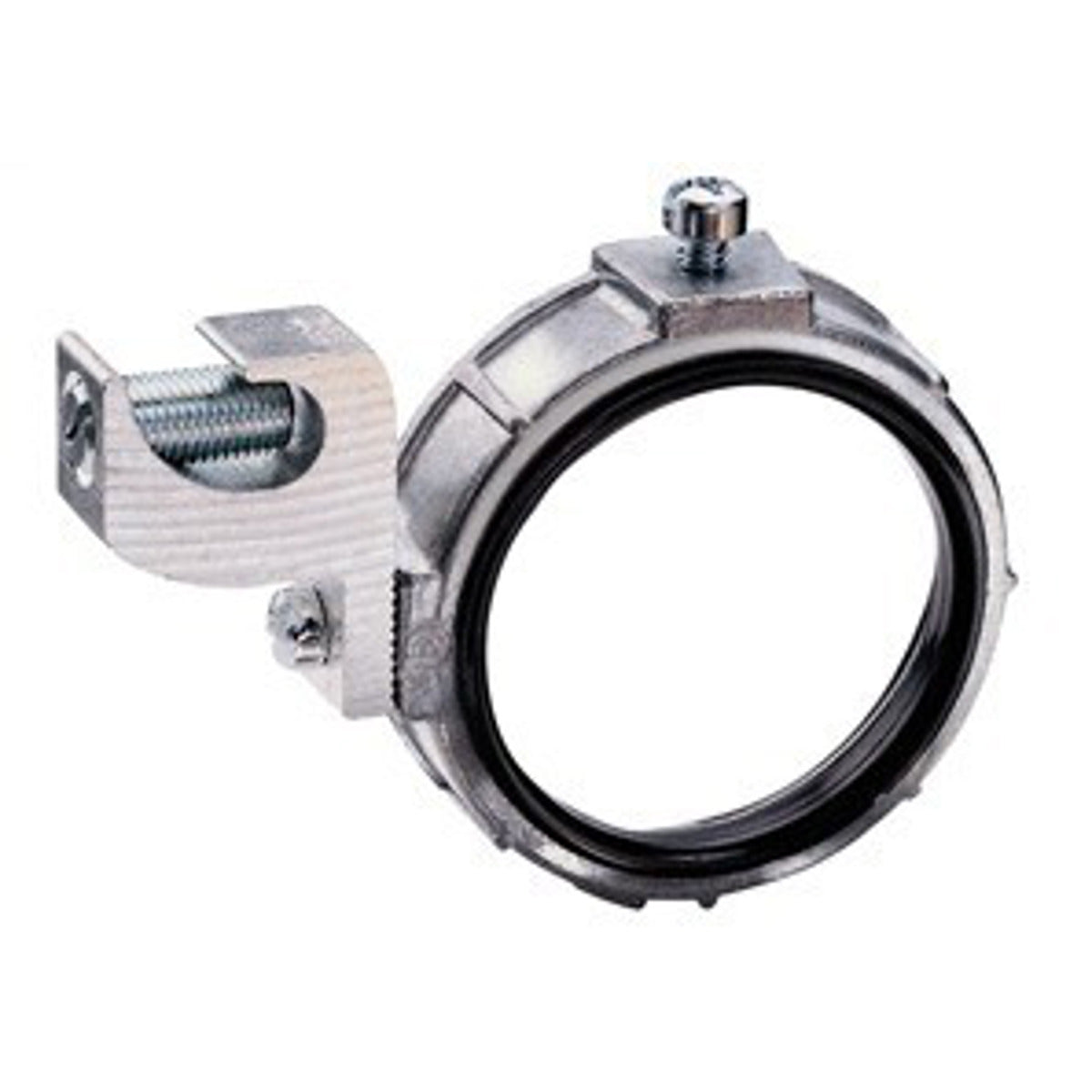

The Bridgeport 389-DC40 is a grounding bushing made from zinc die-cast material. This bushing measures three and a half inches and is designed for use with a locknut to terminate service conduit to a cabinet. It features a grounding lug made of aluminum alloy suitable for wire sizes from six to two hundred fifty MCM.

• Used with locknut to end service conduit to cabinet.
• Includes a lug for bonding jumper to neutral busbar.
• Rated for a temperature of up to 150 degrees Celsius.

Product Highlights

This bushing is particularly useful for ensuring a secure electrical connection and provides physical protection to wiring. The plastic metal liner prevents damage to wire insulation during installation.

Product Information

Standard Information

• Brand: Bridgeport
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Catalog Number: 389-DC40
• Application: Connects service conduit to cabinet; designed for grounding.
• Material: Zinc Die Cast
• Color: Gray; Black Insulator
• Finish: Ball Burnished
• NEMA Rating: FB-1
• Temperature Rating: 150 Degrees C
• Trade Size: 3-1/2 IN
• Country of Origin: China
• UPC: 781747938947
