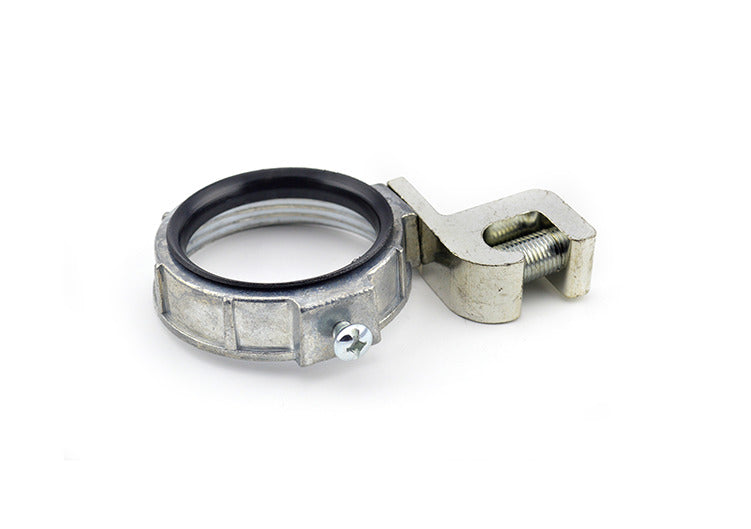

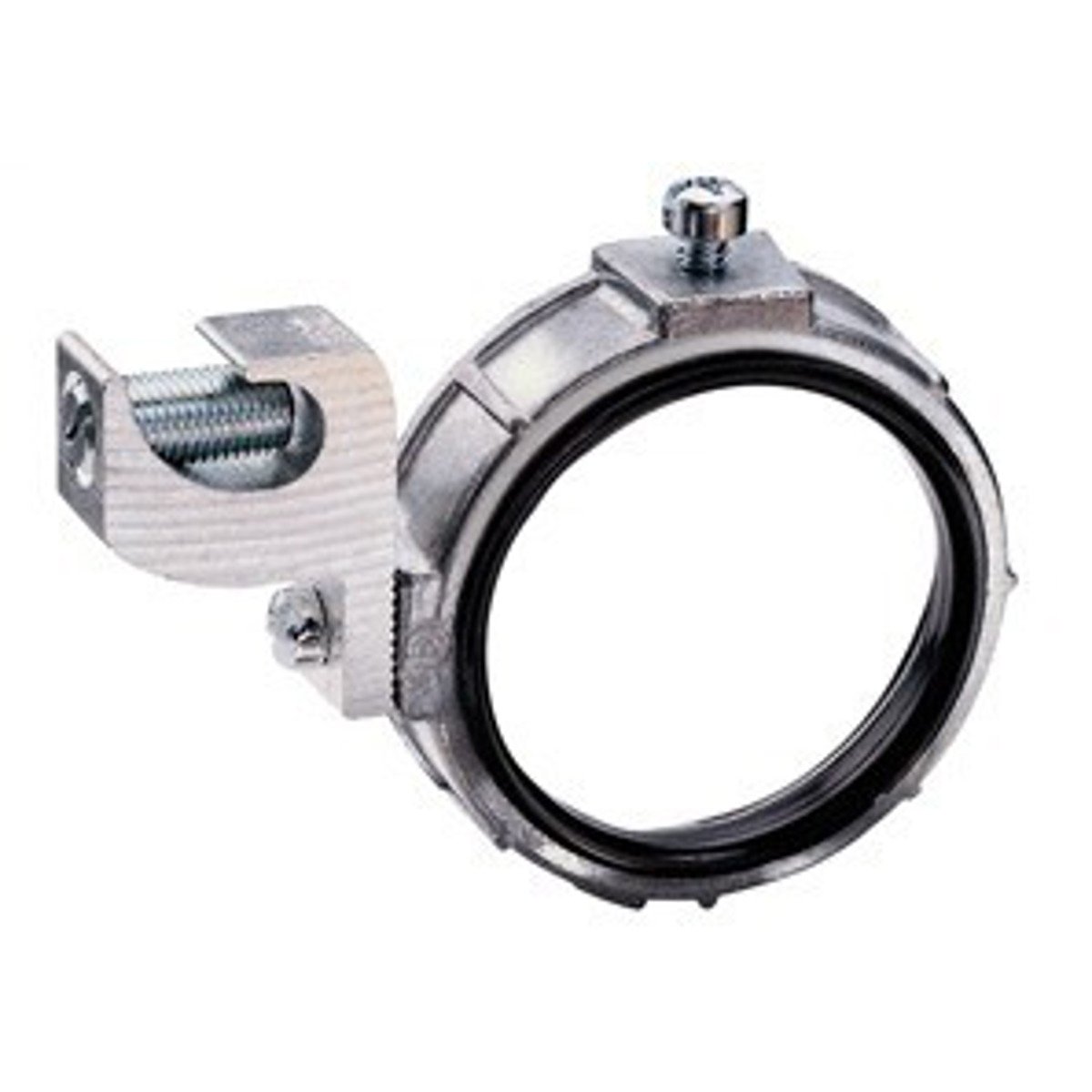

Bridgeport 387-DC40 Bushing, Insulated, Grounding, Zinc Die Cast, Size 2-1/2 Inch, 6-250 Lug

Product Description

The BRIDGEPORT 387-DC40 bushing is used with a locknut to terminate service conduit to a cabinet. It features a lug for bonding a jumper to a neutral busbar. This grounding lug is made from aluminum alloy 6061-T6 and includes a plastic metaliner to prevent damage to wire insulation. It is rated to 150 degrees C.

• Used with locknut to terminate service conduit to cabinet.
• Lug provided for bonding jumper to neutral busbar.
• Grounding lug; aluminum alloy 6061-T6.
• Plastic metaliner prevents damage to wire insulation.
• Rated 150 degree C.

Product Highlights

The BRIDGEPORT 387-DC40 grounding bushing is for terminating service conduit. It is made from zinc die cast and features a grounding lug and insulated throat.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 387-DC40
• Country of Origin: China

Technical Specifications

• Catalog Number: 387-DC40
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: China
• Made in USA: No
• Application: Used with locknut to terminate service conduit to cabinet. Lug provided for bonding jumper to neutral busbar. Grounding lug; aluminum alloy 6061-T6. Plastic metaliner prevents damage to wire insulation. Rated 150 degree C.
• Finish: Ball Burnished
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Special Features: Grounding Lug Wire Capacity #6 - #250 MCM
• Standard: cULus
• Item Type: Bushing
• Size: 2 1/2 in
• Temperature Rating: 150 Degrees C
• Trade Size: 2-1/2 IN
• Type: Threaded
• Wire Size: 6 AWG Solid to 250 KCMIL Stranded
• Lug Type: Tin Electroplated 6061-T6 Aluminum Alloy
• Throat Type: Insulated
• Diameter: 3-3/16 Inch
• Height: 13/16 Inch
• Approval: UL 514B, UL (Canada and US)
• Used On: IMC/Rigid Conduit
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50553, NEMA FB-1
• Insulator Material: Nylon
• Insulation Temperature: 150 Deg C
• Ul Standard: UL-514B & UL467
• 12-Digit UPC: 781747938749
• Product UPC: 78174793874
