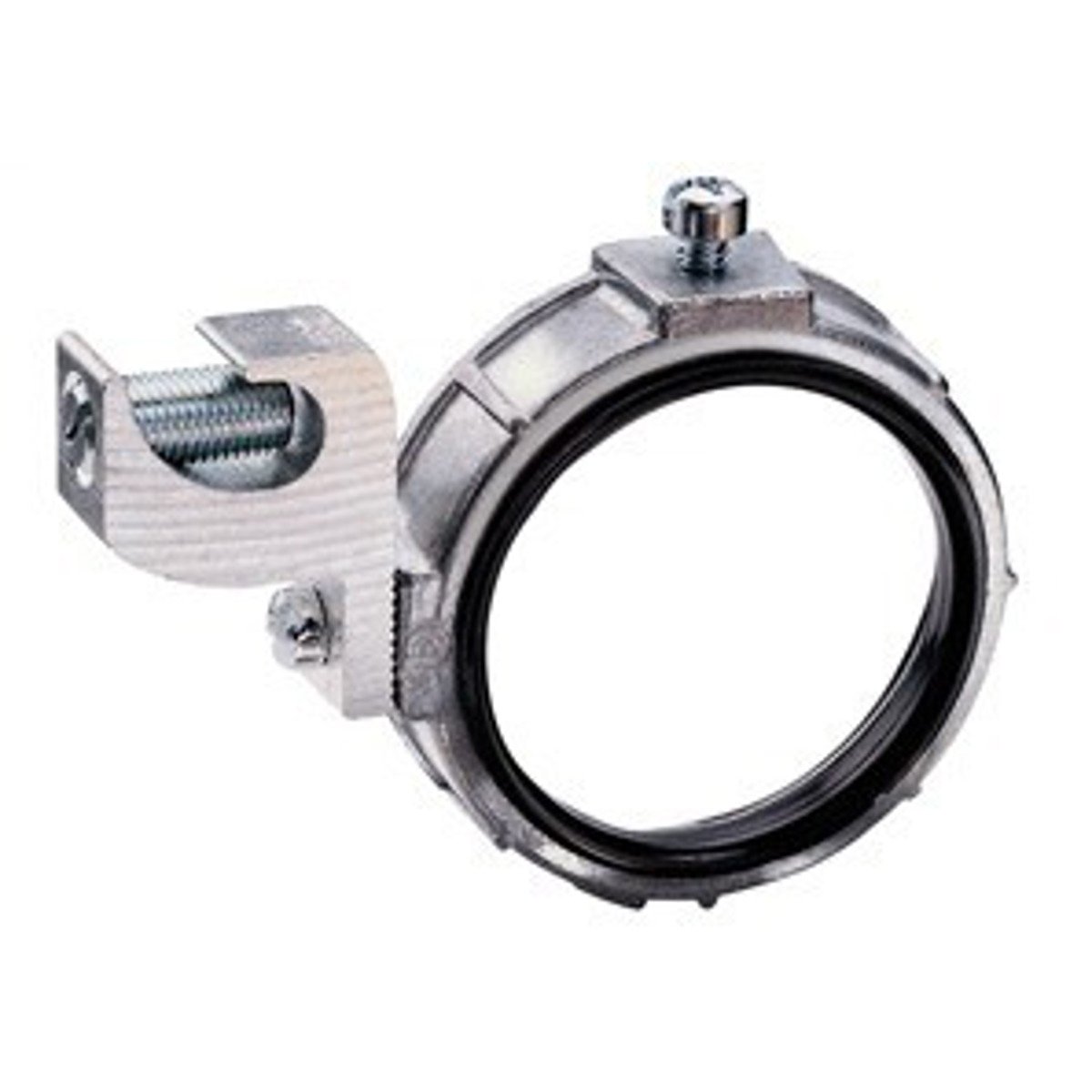

Bridgeport 385-DC Rigid/IMC Insulated Grounding Bushing, 1-1/2 Inch

Product Description

The Bridgeport 385-DC is a rigid IMC insulated grounding bushing designed for use with conduit systems. This bushing fits a wire size from fourteen to one-ought American Wire Gauge (AWG) and has a trade size of one and a half inches. The unit is made of die-cast zinc and is suitable for use where corrosion resistance is needed.

• Plastic metal liner protects wire insulation
• Grounding lug facilitates bonding jumper connection to the neutral busbar
• Compatible with both rigid and IMC conduit systems

Product Highlights

This bushing provides essential grounding protection for various electrical installations, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Bridgeport
• MPN: 385-DC

Technical Specifications

• Material: Die-Cast Zinc
• AC Cable Size: 14 to 1/0 AWG
• Trade Size: 1-1/2 inch
• Temperature Rating: 150 degrees Celsius
• Color: Black/Gray
• Dimensions: 1-9/16 inch ID x 2-1/8 inch OD x 9/16 inch W
• Finish: Ball Burnished/Mirror Smooth/Electro-Plated Tin
• NEMA Rating: FB-1
• Manufacturer: Bridgeport Fittings, LLC
