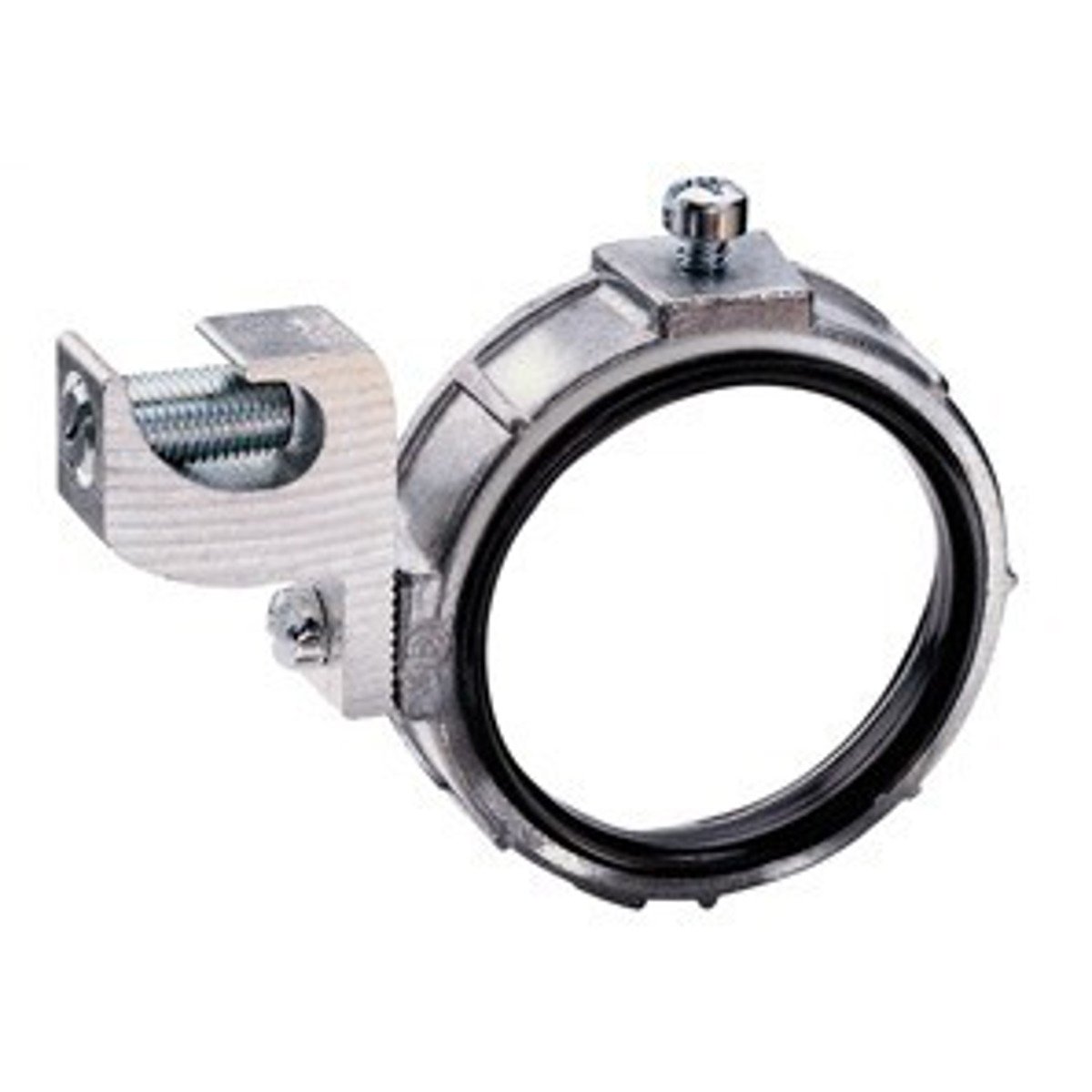

Bridgeport 382-DC Rigid/IMC Insulated Grounding Bushing 3/4 Inch

Product Description

The Bridgeport 382-DC is a rigid and IMC insulated grounding bushing made from die-cast zinc. This product is designed to facilitate the termination of service conduit to a cabinet. The grounding bushing is compatible with various wire sizes ranging from fourteen to four AWG AC cable.

• Insulated design to prevent electrical hazards
• Aluminum alloy grounding lug included for secure attachment
• Plastic metal liner protects wire insulation

Product Highlights

This grounding bushing is rated for use at a temperature of one hundred fifty degrees Celsius and is ideal for applications requiring robust grounding solutions.

Product Information

Standard Information

• Brand: Bridgeport
• MPN: 382-DC

Technical Specifications

• Color: Black/Gray
• Finish: Ball Burnished
• Material: Die-Cast Zinc
• Application: Used with locknut to terminate service conduit
• NEMA Rating: FB-1
• Grounding Lug Capacity: #14 to #4 AWG

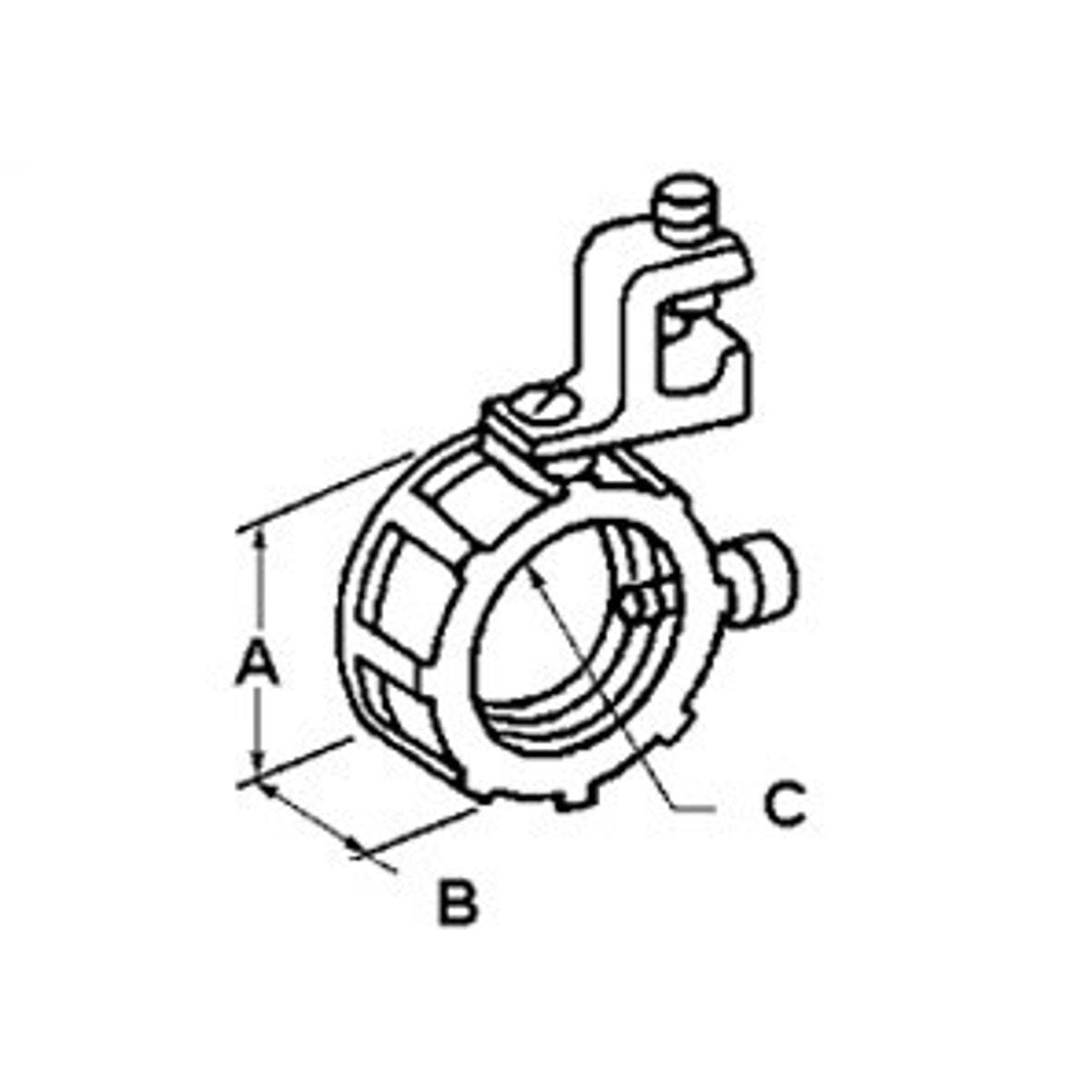

• Dimensions: 13/16 inch ID x 1-5/16 inch OD x 7/16 inch width
• UPC: 781747093820
