Product Description

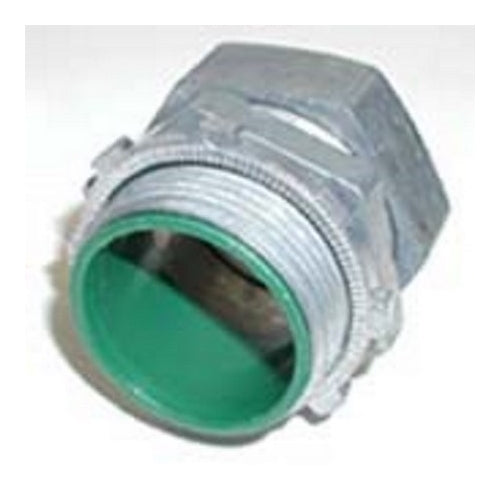

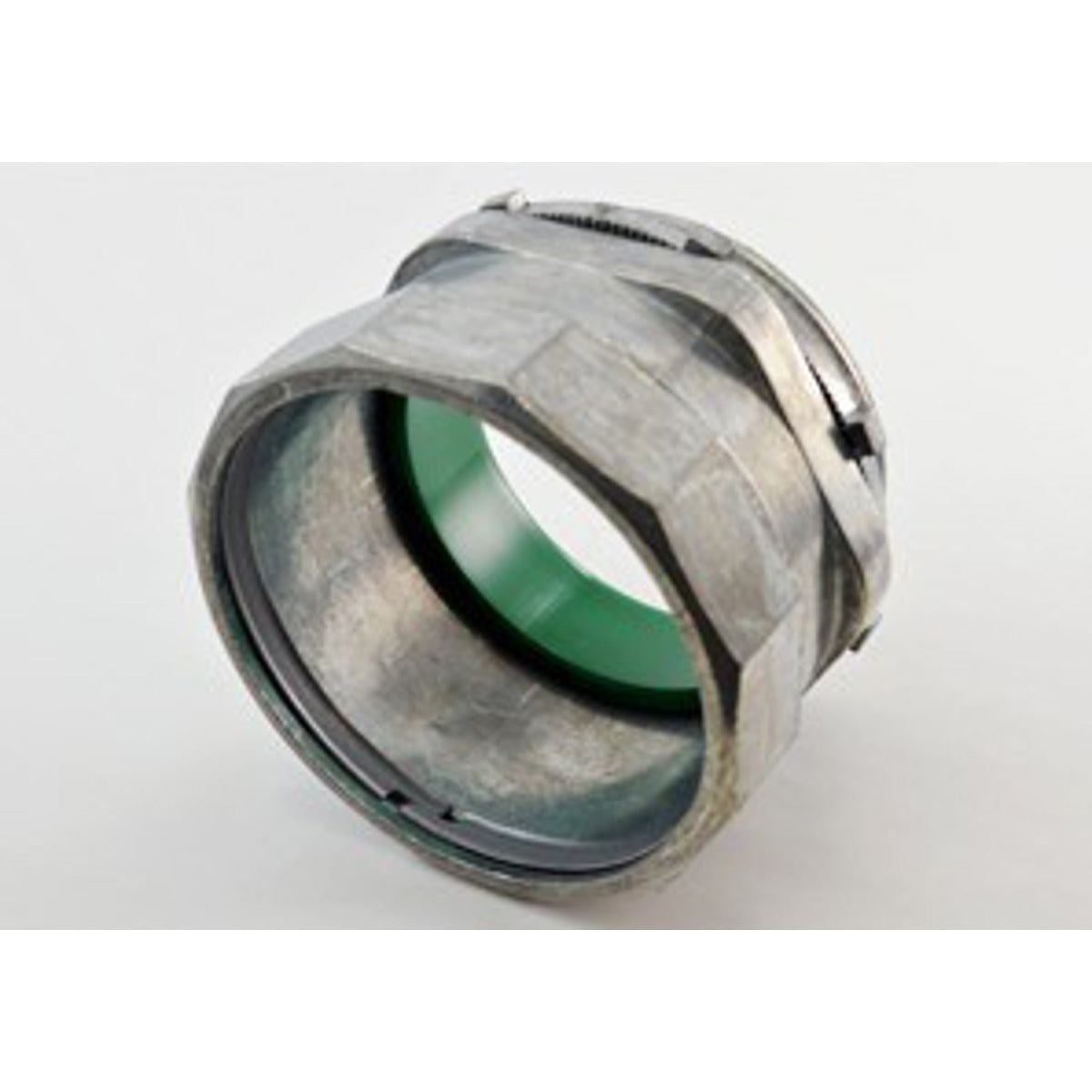

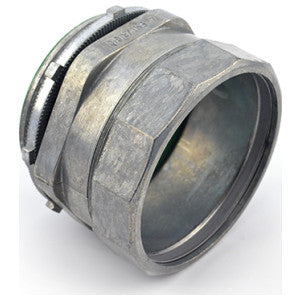

The BRIDGEPORT 259-DCI2 is a zinc die cast compression connector used to join steel EMT to a box or enclosure. It is concrete-tight and suitable for use with steel EMT. The insulator is rated to 105 degrees C and is also listed for use with steel and aluminum rigid conduit.
- Joins steel EMT to box or enclosure
- Concrete-tight and raintight construction
- Insulated throat with a 105 degrees C temperature rating
Product Highlights
This 4-inch compression connector is made from ball burnished zinc die cast and is suitable for use with steel EMT, steel, and aluminum rigid conduit.
Product Information
Standard Information
-
Brand: BRIDGEPORT
-
Manufacturer Part Number: 259-DCI2
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: 259-DCI2
-
Manufacturer: Bridgeport Fittings, LLC
-
Brand: Bridgeport
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: Used to join steel EMT to box or enclosure. Concrete-tight. 2 1/2" thru 4" suitable for use with Steel EMT. Insulator rated 105 Degrees C. 2-1/2" through 4" also listed for use with Steel and Aluminum Rigid Conduit.
-
Finish: Ball Burnished
-
Insulation: Insulated Throat
-
Material: Zinc Die Cast
-
NEMA Rating: FB-1
-
Special Features: Concrete-Tight
-
Standard: cULus
-
UPC: 781747162595
-
GTIN: 00781747162595
-
Item Type: Connector
-
Size: 4 in
-
Temperature Rating: 105 Degrees C
-
Type: Compression
-
Trade Size: 4 Inch
-
Diameter: 5-9/16 Inch
-
Length: 2-9/16 Inch
-
Thread Length: 1-9/16 Inch
-
Constructional Feature: Concrete-Tight, Raintight
-
Approval: UL 514B, UL (Canada and US), CSA
-
Used On: IMC/Rigid Conduit
-
ROHS Compatible: True
-
Applicable Standard: Federal Specification A-A-50553, NEMA FB-1
-
Connection Type: Compression
-
Use With: Rigid Conduit
