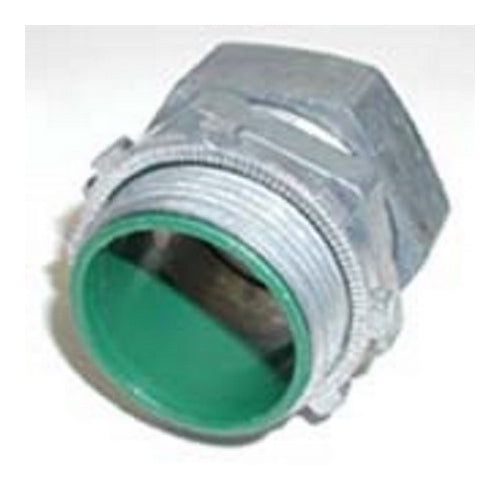

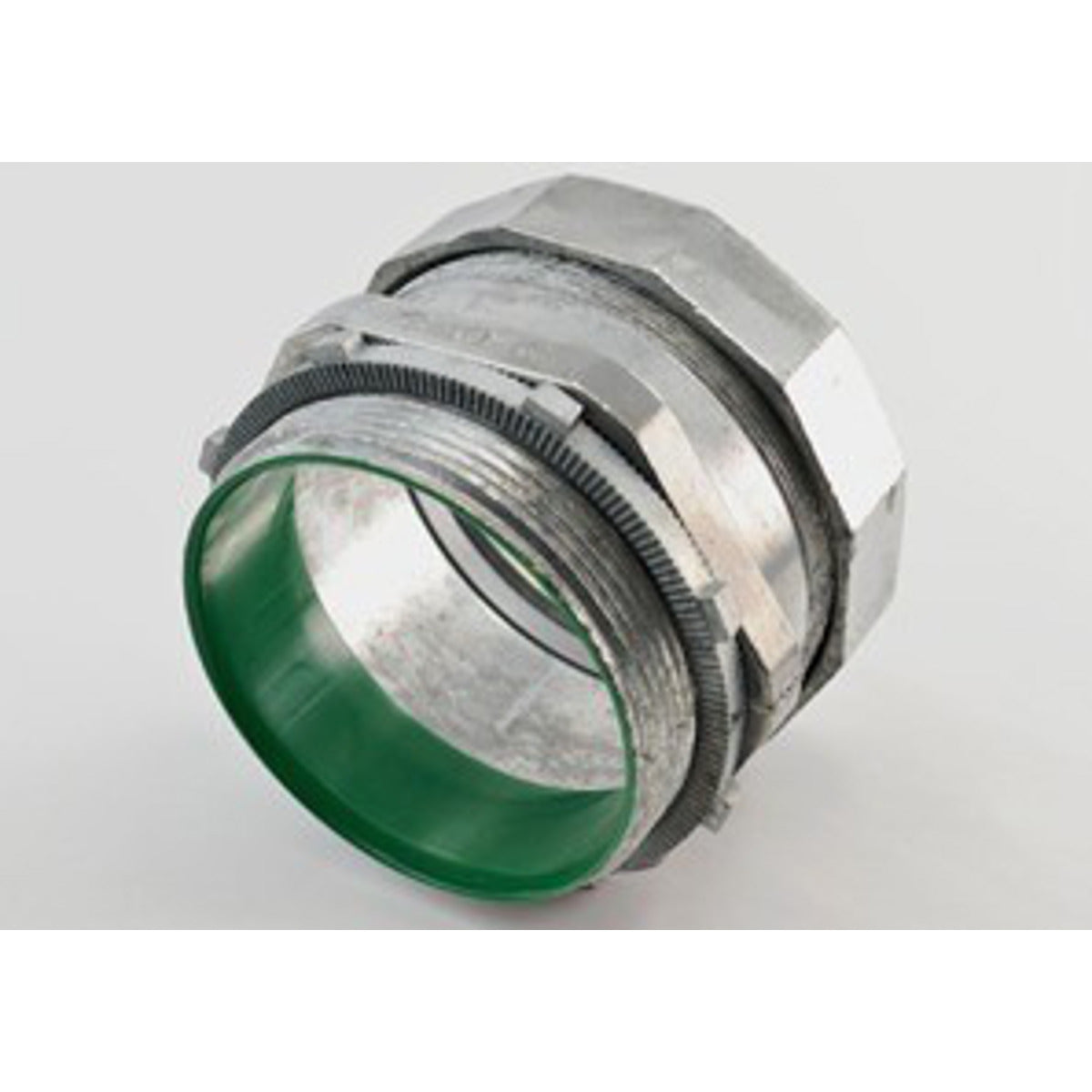

Bridgeport 258-DCI2 Connector, Compression, Zinc Die Cast, 3 1/2 Inch

Product Description

The BRIDGEPORT 258-DCI2 is a zinc die cast compression connector used to join steel EMT to a box or enclosure. It is concrete-tight and suitable for use with Steel EMT. The insulator is rated at 105 degrees C and is listed for use with Steel and Aluminum Rigid Conduit.

• Used to join steel EMT to box or enclosure
• Concrete-tight construction
• Insulator rated 105 Degrees C

Product Highlights

This zinc die cast compression connector features an insulated throat and is suitable for use with steel EMT, steel, and aluminum rigid conduit.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 258-DCI2
• Country of Origin: United States

Technical Specifications

• Catalog Number: 258-DCI2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: United States
• Made in USA: Yes
• Application: Used to join steel EMT to box or enclosure. Concrete-tight. 2 1/2" thru 4" suitable for use with Steel EMT. Insulator rated 105 Degrees C. 2-1/2" through 4" also listed for use with Steel and Aluminum Rigid Conduit.
• Finish: Ball Burnished
• Insulation: Insulated Throat
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Special Features: Concrete-Tight
• Standard: cULus
• UPC: 781747162588
• GTIN: 00781747162588
• Item Type: Connector
• Size: 3 1/2 in
• Temperature Rating: 105 Degrees C
• Type: Compression
• Throat Type: Insulated
• Trade Size: 3-1/2 Inch

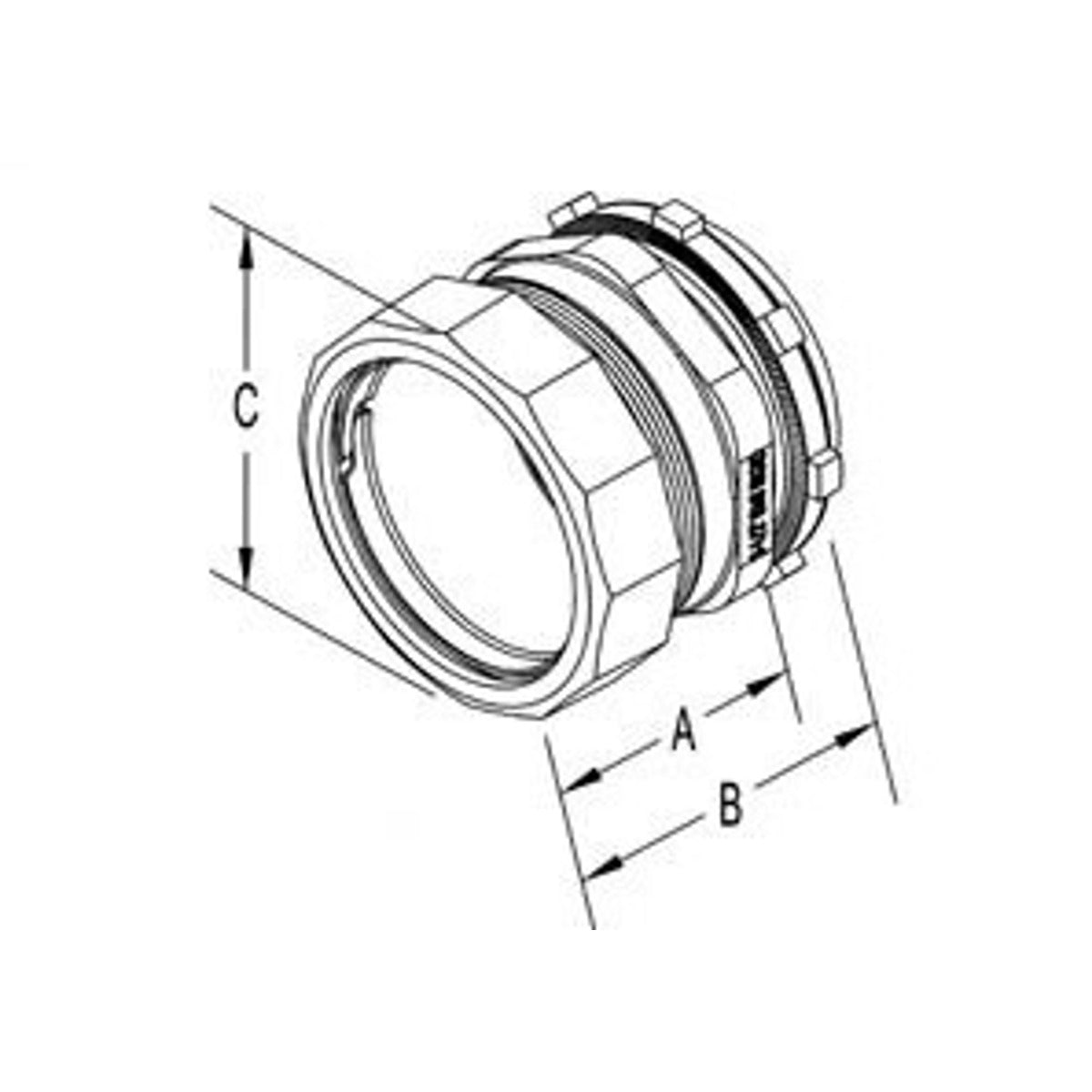

• Diameter: 5 Inch
• Length: 2-1/4 Inch
• Thread Length: 1-1/4 Inch
• Constructional Feature: Concrete-Tight, Raintight
• Approval: UL 514B, UL (Canada and US), CSA
• Used On: IMC/Rigid Conduit
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50553
