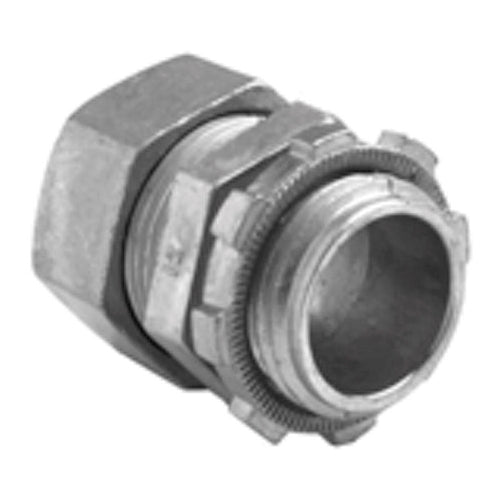

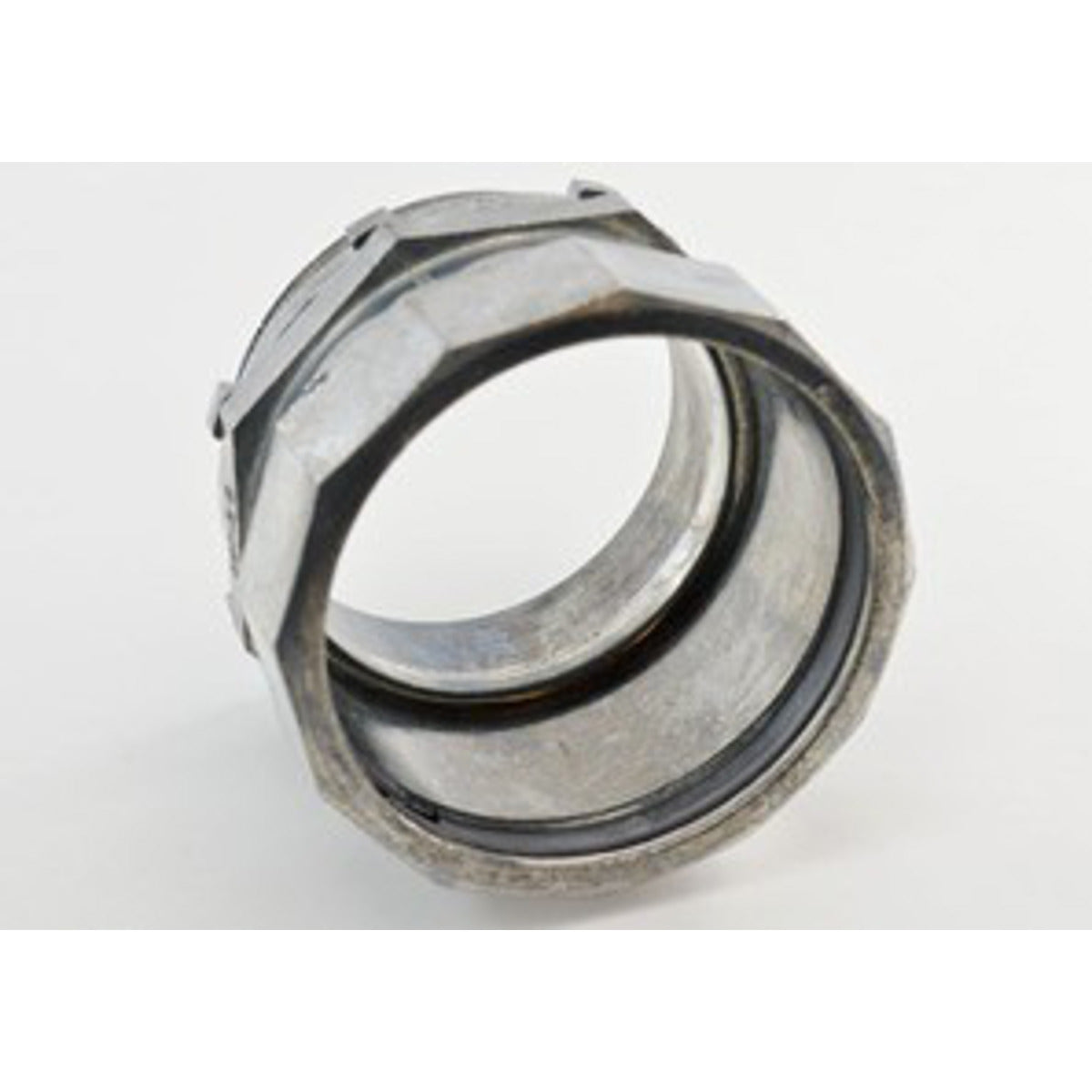

Bridgeport 257-DC2 EMT Die Cast Compression Connector, 3 Inch

Product Description

The Bridgeport 257-DC2 offers a die cast compression connector designed for joining steel EMT conduits to a box or enclosure. This connector supports a conduit size of three inches and is made from die cast zinc. It is suitable for use with steel and aluminum rigid conduits within the size range of two and a half to four inches. This product is perfect for electricians who require robust and reliable connections in their installations.

• Die cast zinc material for enhanced durability
• Suitable for use in concrete-tight applications
• Fits EMT conduit sizes from two and a half to four inches

Product Highlights

This connector is known for its strong construction. It is designed to prevent moisture ingress in tight spaces, making it ideal for both indoor and outdoor use.

Product Information

Standard Information

• Brand: Bridgeport
• MPN: 257-DC2

Technical Specifications

• Type: Non-Insulated Compression Connector
• Finish: Ball Burnished
• Diameter: 4-1/4 inches
• Dimensions: 3-1/4 inches long
• Material: Zinc Die Cast
• Application: Used to join steel EMT to box or enclosure
• Insulation: No insulation
• NEMA Rating: FB-1
• UPC: 781747152572
