Bridgeport 254-DCI2 Connector, Compression, Zinc Die Cast, 1 1/2 Inch

Product Description

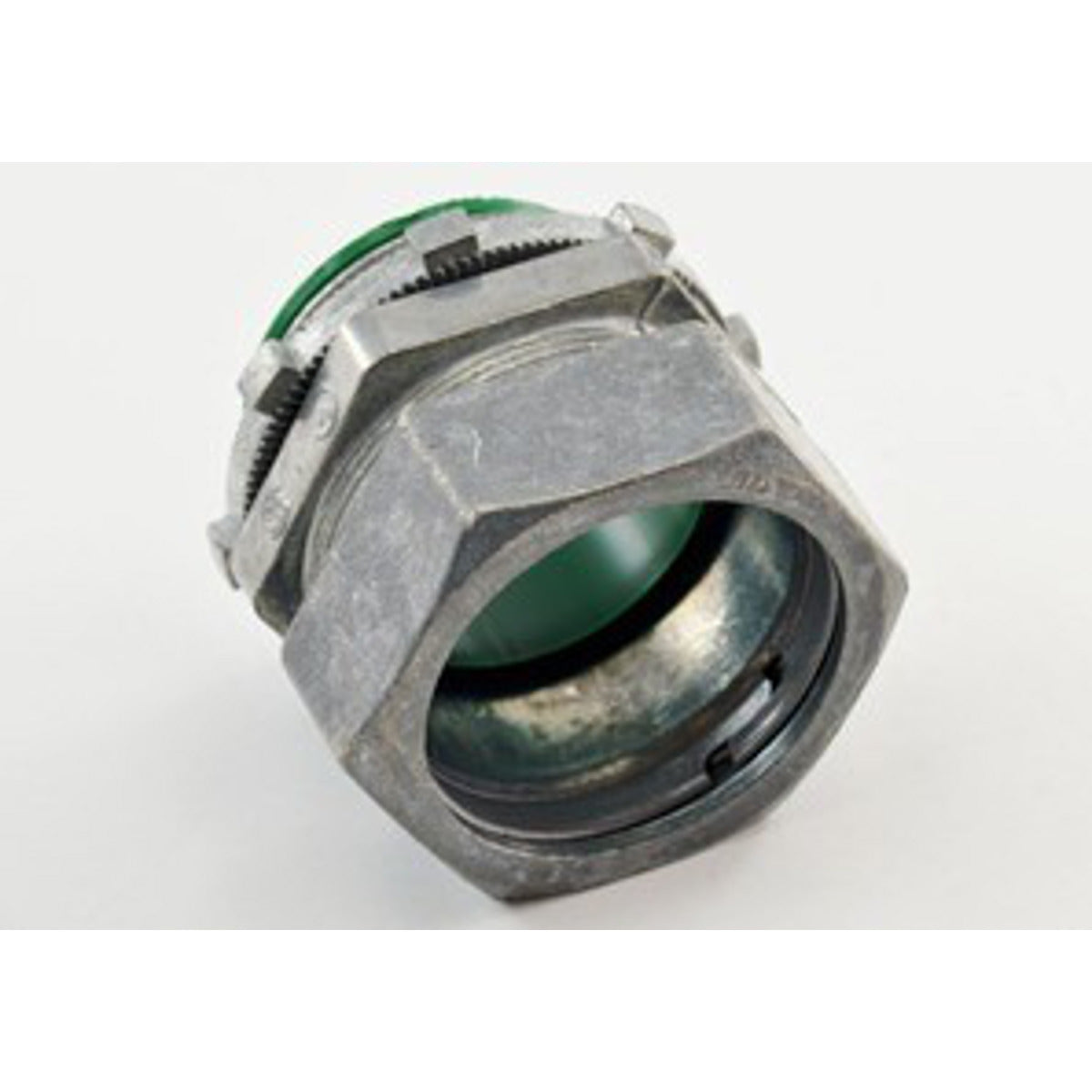

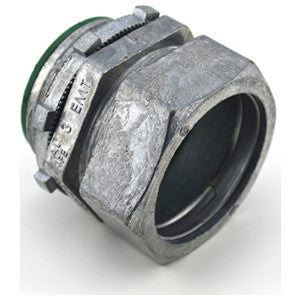

The BRIDGEPORT 254-DCI2 is a compression connector used to join steel EMT to a box or enclosure. It is concrete-tight and suitable for use with steel or aluminum EMT. The connector features an insulated throat and is rated for 105 degrees C. It is made from zinc die cast with a ball burnished finish.

• Used to join steel EMT to box or enclosure
• Concrete-tight
• Suitable for use with Steel or Aluminum EMT

Product Highlights

This zinc die cast compression connector is designed for EMT conduit, offering a secure and raintight connection with its insulated throat.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 254-DCI2
• Country of Origin: United States

Technical Specifications

• Catalog Number: 254-DCI2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: United States
• Made in USA: Yes
• Application: Used to join steel EMT to box or enclosure. Concrete-tight. 1/2" thru 2" suitable for use with Steel or Aluminum EMT. Insulator rated 105degree C.
• Finish: Ball Burnished
• Insulation: Insulated Throat
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Special Features: Concrete-Tight
• Standard: UL, CSA
• Item Type: Connector
• Size: 1 1/2 in
• Temperature Rating: 105 Degrees C
• Type: Compression
• Throat Type: Insulated
• Trade Size: 1-1/2 Inch
• Diameter: 2-7/16 Inch
• Length: 1-5/16 Inch
• Thread Length: 11/16 Inch
• Constructional Feature: Concrete-Tight, Raintight
• Approval: UL 514B, CSA
• Used On: EMT Conduit
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50553, NEMA FB-1
• ECCN: EAR99
• UNSPSC: 39121434
• Connection Type: Compression
• Use With: EMT Conduit
