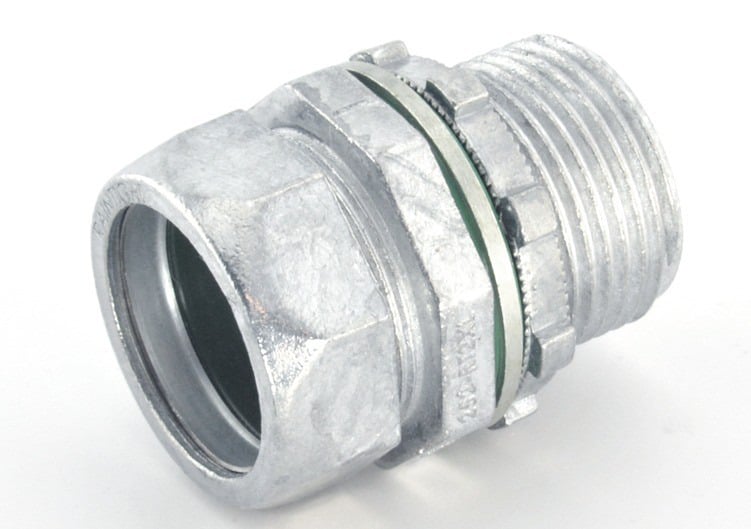

Bridgeport 252-RT2XL 1 Raintight Compression Connector with Extra Long Threads

Product Description

The Bridgeport 252-RT2XL is a compression style connector designed for making raintight connections between EMT conduits and boxes or enclosures. It includes an internal sealing ring and a knockout gasket which ensures a secure seal against moisture. The connector features extra long threads measuring one point zero eight inches, ideal for applications requiring increased wall thickness, such as solar combiner boxes.

• Compression style connector with sealing features
• Extra long threads for better fitting
• Suitable for various applications including solar installations

Product Highlights

The Bridgeport 252-RT2XL is built for reliable connections in demanding environments, making it a preferred choice for electrical fittings.

Product Information

Standard Information

• Catalog Number: 252-RT2XL
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Brand: Bridgeport
• Material: Zinc Die Cast
• Finish: Ball Burnished
• NEMA Rating: FB-1
• Application: Raintight connector for EMT
• UPC: 781747925206
• GTIN: 00781747925206
• Item Type: Raintight Compression Connector
• Size: 1 inch
