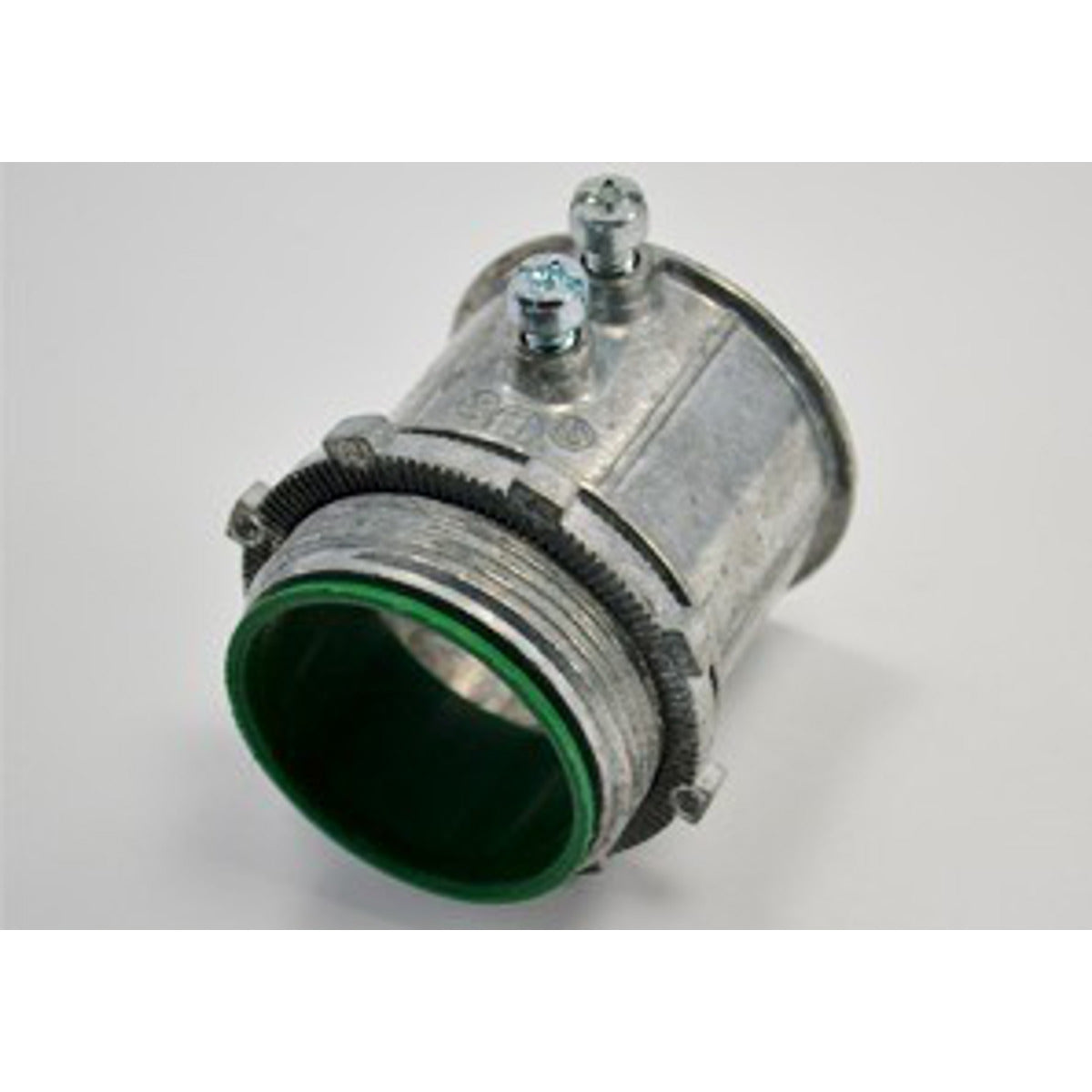

Bridgeport 234-DCI2 Connector, Set Screw, Zinc Die Cast, 1-1/2 Inch

Product Description

The BRIDGEPORT 234-DCI2 is a connector used to secure EMT to a box or enclosure. It is concrete-tight when taped and suitable for use with steel or aluminum EMT. The plastic insulator is rated at 105 degrees Celsius and it features a Tri-Drive Slotted/Phillips/Robertson Screw. It is made of zinc die cast with a ball burnished finish.

• Used to secure EMT to box or enclosure
• Concrete-tight when taped
• Suitable for use with steel or aluminum EMT

Product Highlights

This zinc die cast set screw connector has an insulated throat and is suitable for securing EMT to boxes or enclosures.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 234-DCI2
• Country of Origin: United States

Technical Specifications

• Catalog Number: 234-DCI2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: United States
• Made in USA: Yes
• Application: Used to secure EMT to box or enclosure. 1/2" thru 1" concrete-tight, 1-1/4" thru 4" concrete-tight when taped. 2" thru 4" suitable for use with steel or aluminum EMT. Plastic insulator rated 105degreeC.
• Finish: Ball Burnished
• Insulation: Insulated Throat
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Special Features: Furnished with Tri-Drive Slotted/Phillips/Robertson Screw
• Standard: UL, CSA
• Item Type: Connector
• Size: 1 1/2 in
• Temperature Rating: 105 Degrees C
• Type: Set Screw
• Throat Type: Plastic Insulated
• Trade Size: 1-1/2 Inch

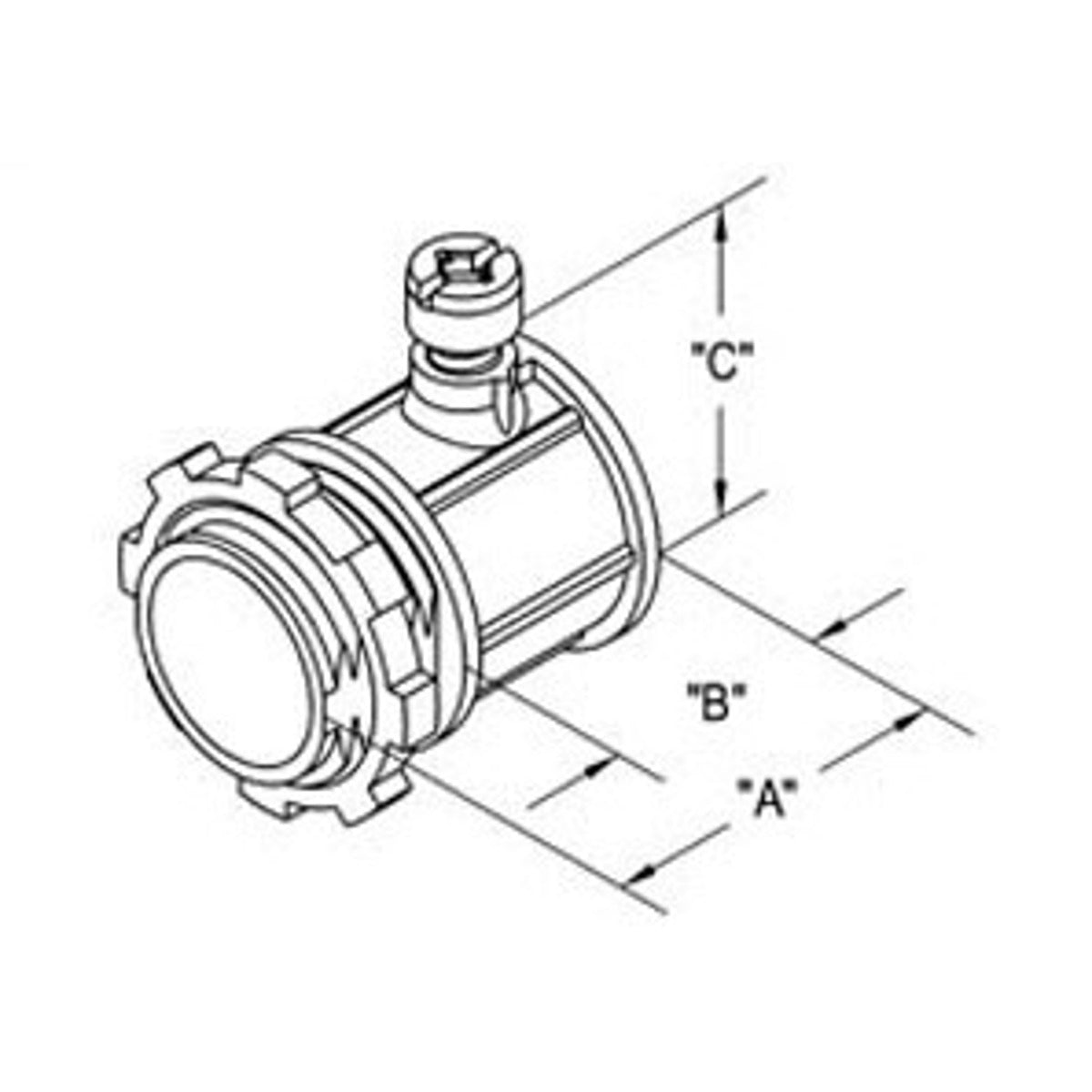

• Diameter: 2.06 Inch
• Length: 2.31 Inch
• Thread Length: 0.75 Inch
• Constructional Feature: Concrete-Tight
• Approval: UL 514B, CSA
• Used On: EMT Conduit
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50553, NEMA FB-1
• Includes: Tri Drive Slot/Phillips/Robertson Head Screw
• Connection Type: Set-Screw
• Use With: To Join EMT to Box or Enclosure
• Connector Type: Set Screw
