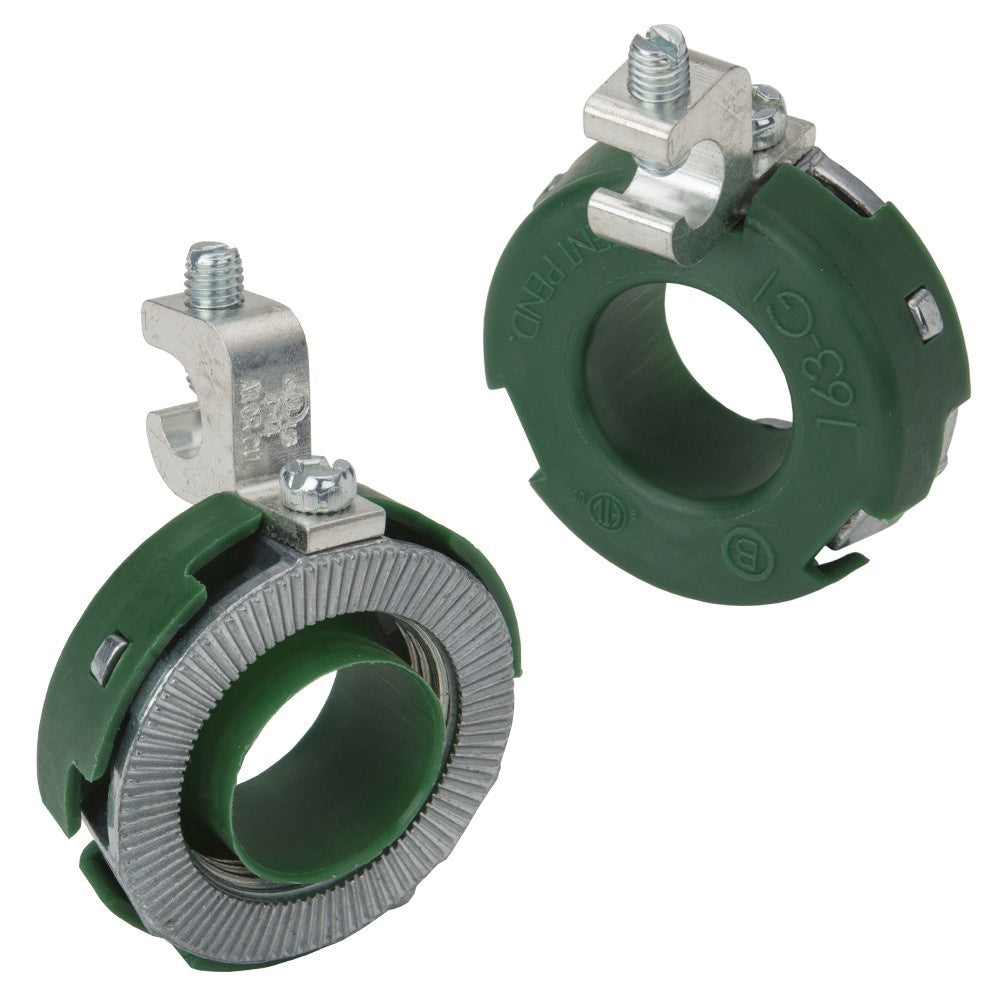

Bridgeport 163-GI Ball Burnished Mirror Smooth Tin Plated Aluminum Die Cast Zinc Insulated Grounding Locknut 1 Inch Mighty-Bond

Product Description

The Bridgeport 163-GI is an insulated grounding locknut designed for secure connections in electrical systems. This product is suitable for use with all types of Bridgeport fittings, including EMT and rigid conduit connectors, as well as threaded rigid and IMC conduit. The patented Mighty-Bond technology provides an insulated bond to the enclosure, enhancing system safety. The locknut features three tapped mounting pads for flexibility in installation, making it ideal for tight spots.

• Compatible with various conduit types and fittings
• Provides a secure insulated connection
• Designed for confined spaces

Product Highlights

The Bridgeport 163-GI locknut is engineered to overcome issues with connector or conduit thread lengths, especially when thick enclosure walls are involved. It can replace grounding bushings and locknuts when the threads are insufficient. This makes it a practical solution for electrical installations in both indoor and outdoor settings.

Product Information

Standard Information

• Brand: Bridgeport
• Manufacturer: Bridgeport

Technical Specifications

• Material: Tin Plated Aluminum, Die Cast Zinc
• Trade Size: 1 Inch
• Thickness: 0.64 inches
• Width Across Flats: 1.9 inches
• Temperature Rating: 105 degrees Celsius
• Standards: cETLus Listed, Federal Specification A-A-50553, NEMA FB-1, ETL Conforms to UL 514B Listed to CAN/CSA C22.2 No. 18.3, RoHS Compliant
