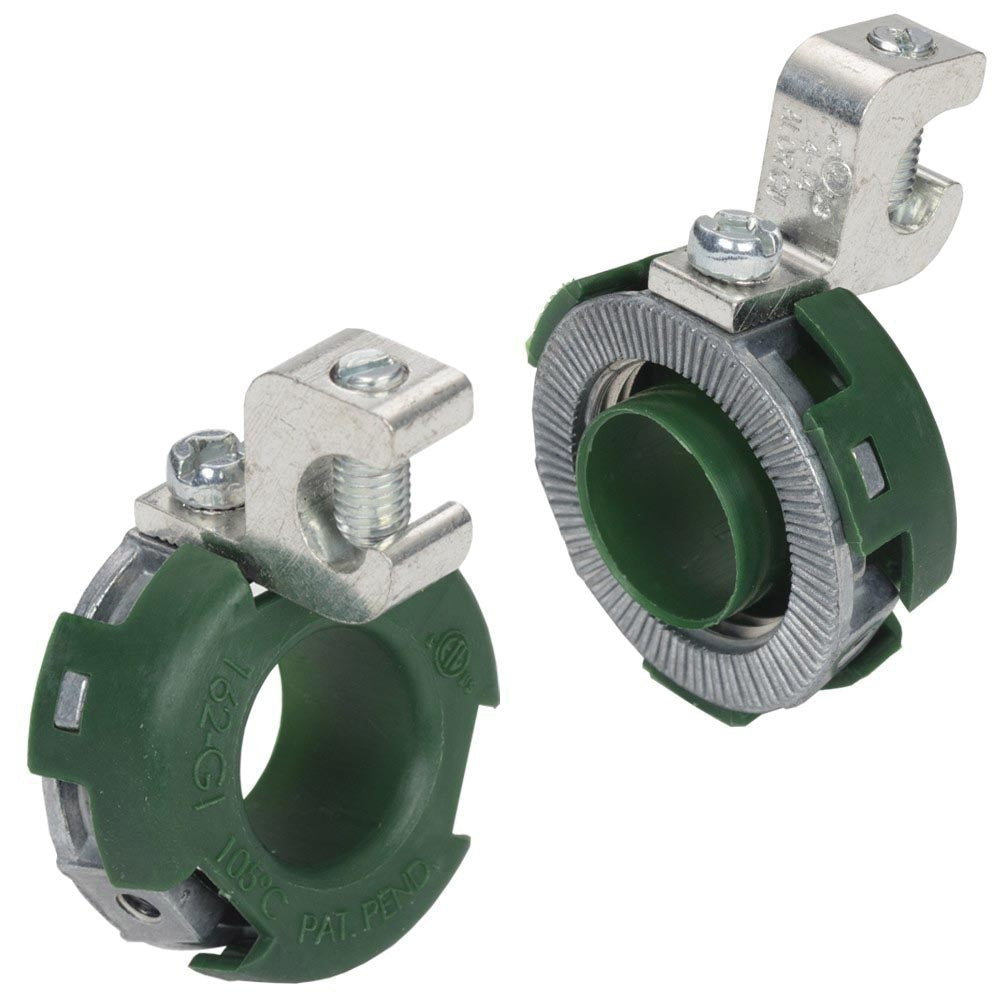

Bridgeport 162-GI Ball Burnished Mirror Smooth Tin Plated Aluminum Die Cast Zinc Insulated Grounding Locknut 3/4-Inch Mighty-Bond

Product Description

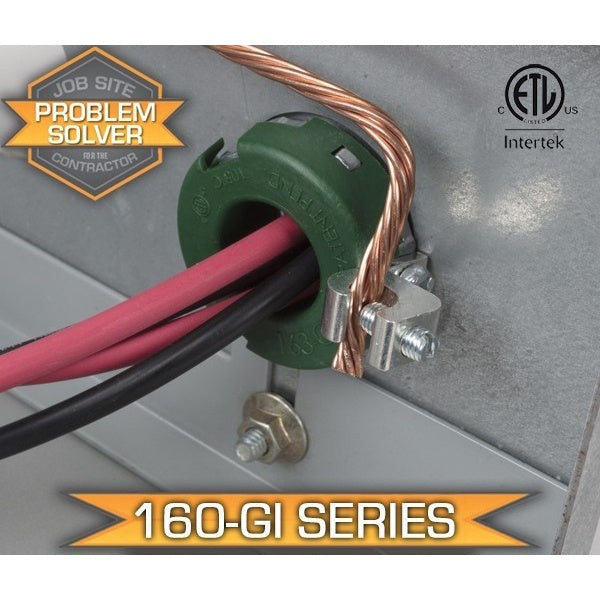

Bridgeport offers the 162-GI insulated bonding and grounding locknut. This product is ideal for use with EMT and rigid conduit connectors, as well as threaded rigid/IMC conduit. It provides secure connections to enclosures and features three tapped mounting pads for ease of installation in tight spaces.

• Used to fasten threaded connectors or nipples to boxes or enclosures.
• Provides additional bonding and grounding paths.
• Listed for use with all Bridgeport fittings.

Product Highlights

This locknut is designed to solve common issues in tight spaces where connector thread lengths are limited due to thick enclosure walls. It can substitute grounding bushings and locknuts in cases where threads are too short for both components.

Product Information

Standard Information

• Brand: Bridgeport
• Country of Origin: China

Technical Specifications

• Material: Tin Plated Aluminum, Die Cast Zinc
• Finish: Ball Burnished, Mirror Smooth
• Type: Insulated
• Trade Size: 3/4 Inch
• Standards: cETLus Listed, Federal Specification A-A-50553, NEMA FB-1, ETL Conforms to UL 514B, Listed to CAN/CSA C22.2 No. 18.3, RoHS Compliant
• Thickness: 0.573 inches
• Temperature Rating: 105 deg C
• UPC: 78174791162
