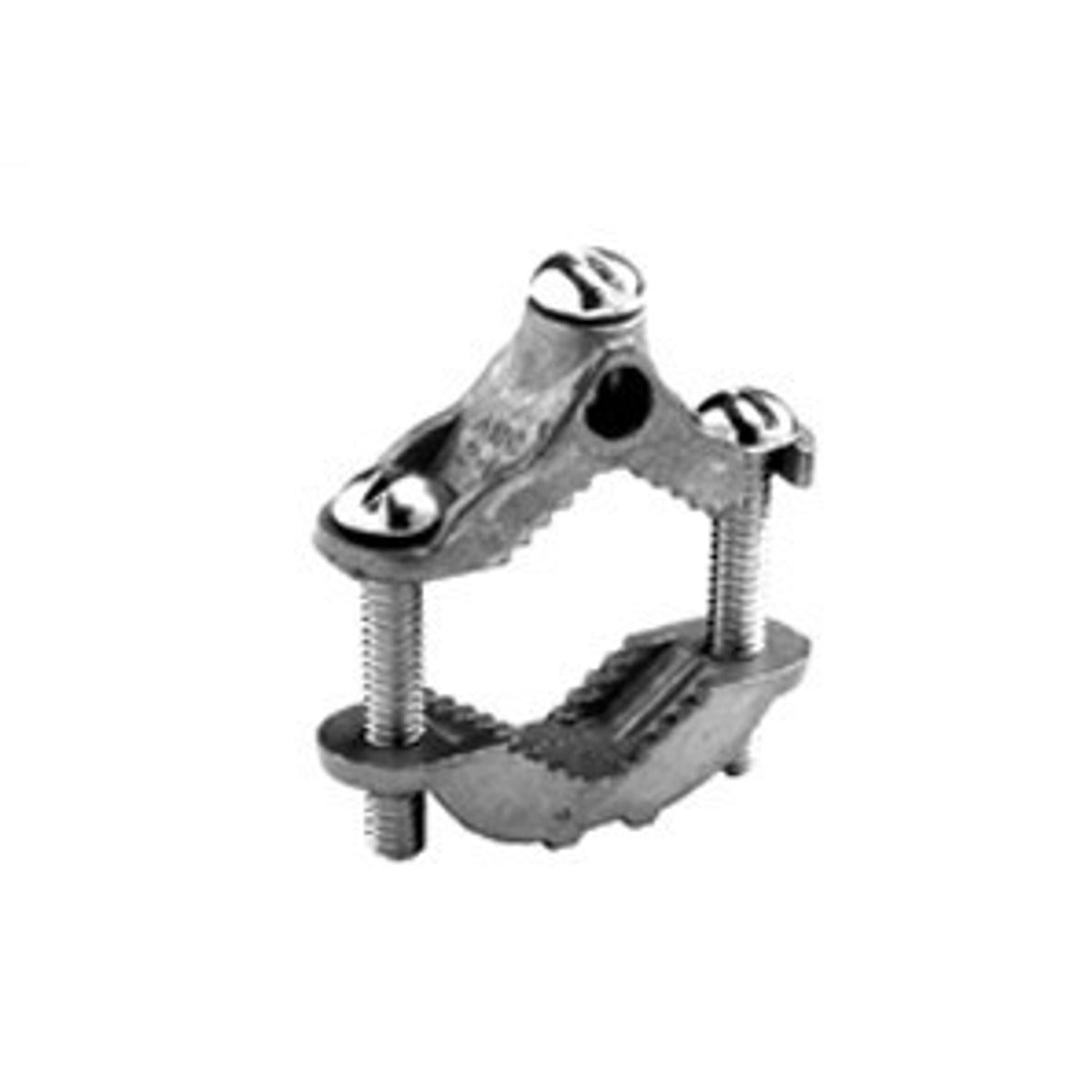

Bridgeport 1309-DC Clamp GND 8 TO 4AWG DIE CAST ZINC
Bridgeport 1309-DC Clamp GND 8 TO 4AWG DIE CAST ZINC

Bridgeport 1309-DC Clamp GND 8 TO 4AWG DIE CAST ZINC

Brand: BRIDGEPORT
SKU: 1309-DC
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$21.99
$21.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Bridgeport 1309-DC is a ground clamp designed for use with conductors ranging from eight AWG to four AWG. This clamp is made of die cast zinc, providing durability and reliability for electrical connections.

  • Compatible with 1/2 inch to 1 inch pipes
  • Accepts bare copper conductors
  • Easy installation with steel strap

Product Highlights

The Bridgeport 1309-DC clamp ensures secure grounding connections in electrical systems.

Product Information

Standard Information

  • Brand: Bridgeport
  • Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

  • Catalog Number: 1309-DC
  • Application: Connects No. 4, 6 or 8 AWG bare copper ground wire to grounding pipes
  • Pipe Sizes: 1/2 inch, 3/4 inch, and 1 inch
  • Material: Zinc die cast
  • Finish: Ball burnished/mirror smooth
  • NEMA Rating: FB-1
  • Conductor Material: Steel
  • Country of Origin: China
