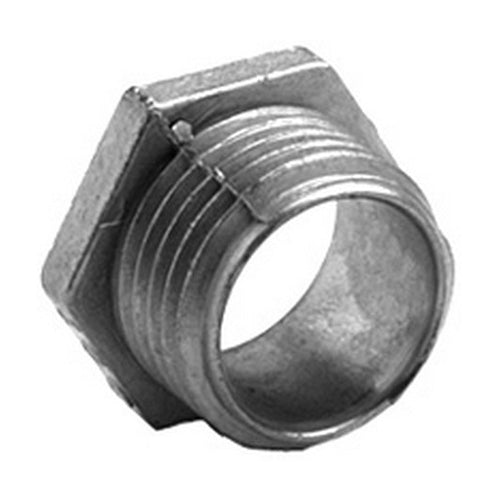

Bridgeport 1111 Conduit Chase Nipple 4 Inch

Product Description

The BRIDGEPORT 1111 is a 4-inch malleable iron conduit chase nipple designed to create a short raceway connection between electrical enclosures. Finished in zinc for corrosion resistance, this fitting pairs with a standard locknut to secure conduit runs at panel knockouts, junction boxes, and other enclosures. At 1.625 inches in length, it is sized for close-proximity connections where a full conduit section is not required. Electricians and electrical contractors use this fitting in commercial and industrial wiring installations where code-compliant, low-profile conduit entry points are needed.

This chase nipple is suited for use in conduit installations requiring a direct, flush connection between two enclosures or between an enclosure and a wall surface. Typical applications include panel board entries, pull box connections, and equipment enclosure knockouts. The 4-inch trade size accommodates larger conduit runs common in commercial, industrial, and utility electrical systems. When installed with a locknut on each side of the enclosure wall, it provides a secure, rigid conduit termination point.

Key Features

• 4-inch trade size for large conduit installations in commercial and industrial applications
• Malleable iron construction provides strength and durability at enclosure connection points
• Zinc finish offers corrosion resistance in typical indoor and protected outdoor environments
• 1.625-inch body length enables close-clearance enclosure-to-enclosure connections
• Designed for use with a standard locknut to secure fitting at enclosure knockouts

Compatibility

Designed as an OEM-style conduit fitting for use with standard 4-inch trade size conduit systems and compatible enclosure knockouts requiring a short nipple raceway connection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits and verify the enclosure is fully powered down before beginning work. Thread the nipple through the enclosure knockout and secure with a locknut on each side; do not overtighten to the point of cracking the fitting. Inspect the zinc finish for damage after installation and apply supplemental corrosion protection if the fitting will be exposed to moisture.

Technical Specifications

• Trade Size: 4 inches
• Body Length: 1.625 inches
• Material: Malleable Iron
• Finish: Zinc
• Type: Conduit Chase Nipple
• UPC: 781747011114

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 1111
