Bridgeport 1106 1-1/2 inch Mall Bushed Nip

Product Description

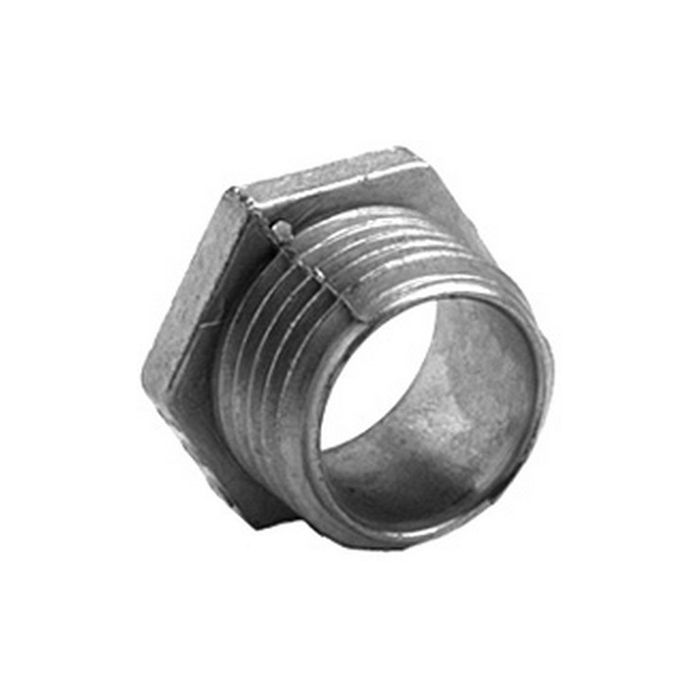

The BRIDGEPORT 1106 is a 1-1/2 inch IMC/Rigid conduit nipple with a threaded male/hex head. Constructed from zinc electroplated malleable iron, it measures 2-5/16 inches in diameter and 1-1/8 inches in length. This non-insulated throat type nipple is suitable for use with IMC/Rigid conduit.

• Features die-cast zinc construction
• Has trade size of 1-1/2 inches
• When used with a locknut, the conduit nipple serves as a short raceway between enclosures

Product Highlights

This conduit nipple is ideal for rigid and IMC conduit fittings, serving as a short raceway between enclosures when used with a locknut.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 1106
• Country of Origin: IND

Technical Specifications

• Trade Size: 1-1/2 Inch
• Diameter: 2-5/16 Inch
• Length: 1-1/8 Inch
• Throat Type: Non-Insulated
• Material: Zinc Electroplated Malleable Iron
• Approval: UL 514B, CSA
• Used On: IMC/Rigid Conduit
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50553, NEMA FB-1
• Manufacturer: Bridgeport
• Part Number: 1106-DC
• Suitable For Use With: Rigid and IMC Conduit
