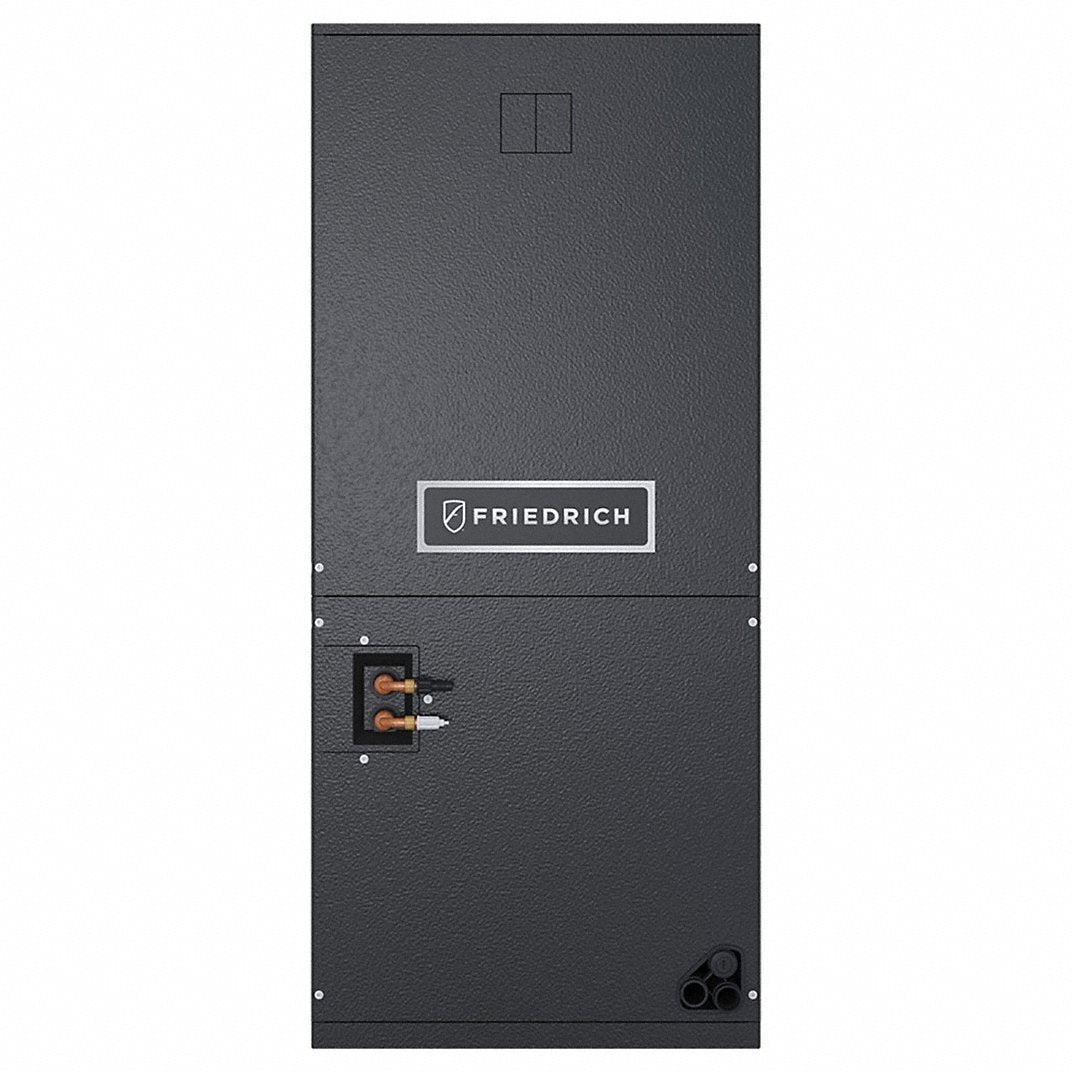

Breeze WFH48Z223C Communicating Indoor Air Handler with A-Coil 4 Ton 1 PH 230V

Product Description

The Breeze WFH48Z223C is an efficient way to upgrade from traditional ducted unitary HVAC equipment to an inverter heat pump system. It can be paired with virtually all existing HVAC systems, regardless of brand. Its high-performance compressor accommodates linesets of up to 246 ft. and height differentials of up to 98 ft. Operates in temperatures down to -13� F in heat pump mode.

• Universal Compatibility: Can be paired with virtually all existing HVAC systems, regardless of brand.
• Accommodates Long Lineset Runs: Can be installed with linesets of up to 246 ft. and height differentials of up to 98 ft.
• Space Saving Slim Design: Ultra-compact design features a smaller footprint.

Product Highlights

This air handler features universal compatibility, long lineset runs, and a space-saving slim design.

Product Information

Standard Information

• Brand: BREEZE
• Manufacturer Part Number: WFH48Z223C

Technical Specifications

• Ton: 4
• Brand: Breeze
• Hertz: 60 Hz
• Phase: 1
• Voltage: 230 V
• Amperage: 21.8 A
• Decibels: 64
• Horsepower: 3/4 HP
• Width: 22 in
• BTU Cooling: 48000
• BTU Heating: 52000
• Refrigerant: R-410A
• Height: 53-7/8 in
• Length: 24 in
• Number of Speeds: Variable
• Manufacturers Part Number: WFH48Z223C
• Certifications: AHRI Certified, UL Listed, CSA, Energy Star, ETL Listed
• Cooling Capacity: 48,000 Btu/h
• Heating Capacity Range: 52,000 Btu/h
• Airflow Rate Rated: 1588 CFM
• Liquid Connection Size: 3/8��_
• Gas Connection Size: 7/8��_
• Max Circuit Breaker: 15
• MCA: 6.8
• Rated Load Amperage (RLA): 21.8
• Cooling ��� �F (�C): 61�F to 86�F (16�C to 30�C)
• Heating ��� �F (�C): 61�F to 86�F (16�C to 30�C)
• Moisture Removal pints/h: 4.6
• SEER2: 17.50
• EER2: 10.10
• HSPF2: 8.50
• COP2 @ 5 �F: 1.90
• ENERGY STAR�: Yes
• Product Height (in.): 53.875�۝
• Product Width (in.): 22�۝
• Product Depth (in.): 24�۝
• Unit Weight: 187.2 lbs
