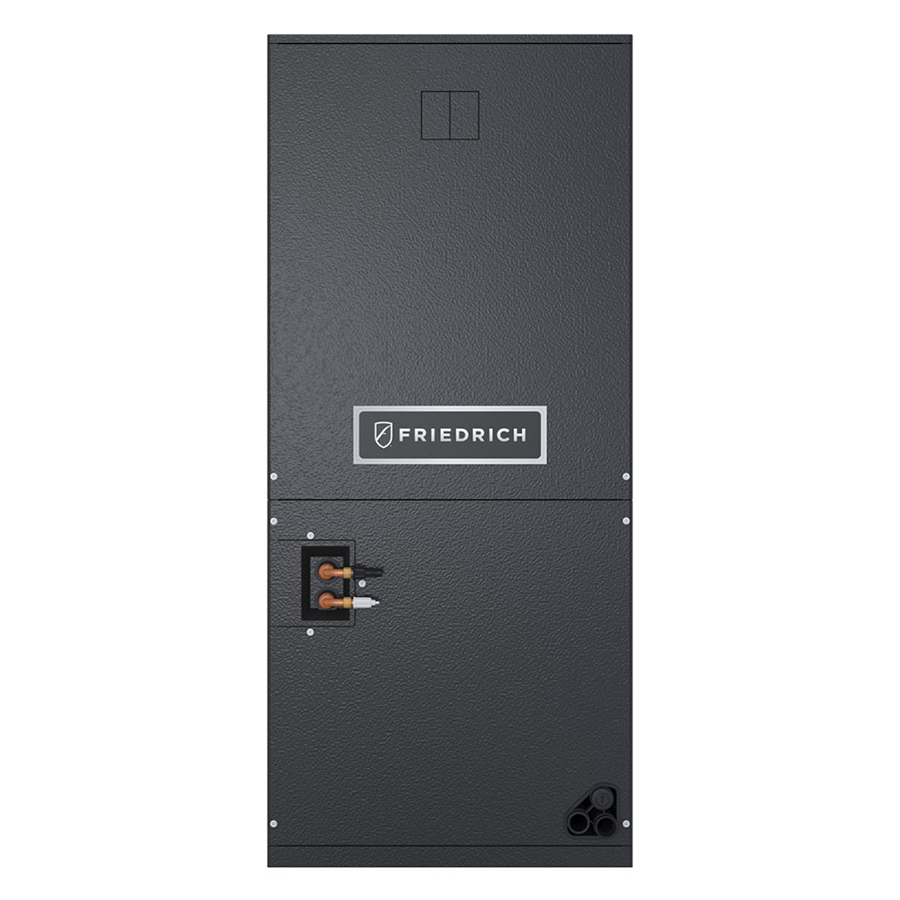

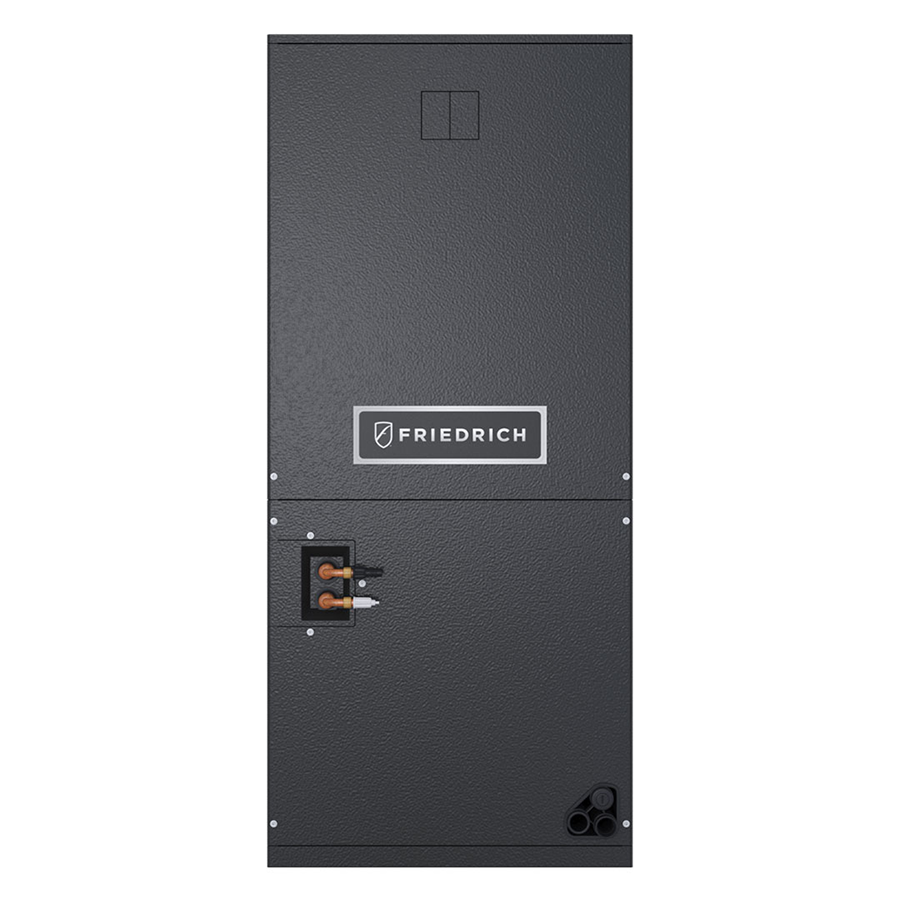

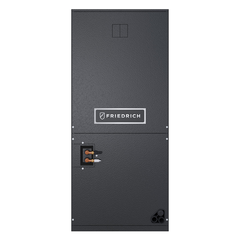

Breeze WFH24Y193D Air Handler 22000 Btu/h 230V R454B

Product Description

The BREEZE WFH24Y193D is a 22,000 BTU/h communicating air handler designed for split-system residential cooling and heating applications. It operates on 230 volts and uses R454B refrigerant, a lower-GWP alternative to R-410A that is increasingly specified in new installations. The unit features a copper A-coil, which offers reliable heat transfer and long-term durability in humid or corrosive environments. A 24-volt communicating interface allows the air handler to exchange status and control data with a compatible outdoor unit or thermostat, supporting more precise system operation. Licensed HVAC technicians are the primary installers for this equipment.

This air handler is suited for residential split-system installations where R454B refrigerant is required or specified. The 22,000 BTU/h capacity and 230-volt power supply place it in the range of whole-home or large-zone cooling and heating systems. The 24V communicating design is intended for use with matched communicating outdoor condensing or heat pump units. Installers working in jurisdictions that have adopted updated refrigerant regulations will find this unit aligned with current equipment standards for new system construction and approved replacements.

Key Features

• 22,000 BTU/h capacity for residential split-system applications
• R454B refrigerant — lower global warming potential than R-410A
• Copper A-coil construction for durable heat transfer performance
• 24-volt communicating interface for system-level control and diagnostics
• 230-volt power supply compatible with standard residential electrical service

Compatibility

Designed as an OEM-style communicating air handler for residential split-system installations using R454B refrigerant and a 24-volt communicating control interface. Specific compatible outdoor unit model numbers were not provided in the available product data.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling refrigerants. Disconnect and lock out all electrical power at the breaker before beginning any work on the unit. Follow local mechanical and electrical codes, including applicable sections of the International Mechanical Code and NEC, for wiring, refrigerant line sizing, and drain line installation. Do not use R-410A or any refrigerant other than R454B in this system.

Technical Specifications

• Capacity: 22,000 BTU/h
• Voltage: 230 volts
• Control Voltage: 24 volts communicating
• Refrigerant: R454B
• Coil Material: Copper
• Coil Type: A-Coil
• Item Type: Air Handler

Standard Information

• Brand: BREEZE
• Manufacturer Part Number: WFH24Y193D
