Breeze AUX10KW Electric Heat Kit 10 Kw 240V Air Handler

Product Description

The BREEZE AUX10KW is a 10 kW, 240-volt single-phase electric heat kit designed for installation in compatible air handlers. It includes an integrated circuit breaker that serves as an electrical disconnect for service personnel and helps protect internal components against short circuits and ground faults. Relay or contactor control keeps the design compatible with standard air handler control boards. A plug-in wiring harness simplifies the installation process and reduces field wiring time. Licensed HVAC technicians handling electric heat kit changeouts or new installations will find this kit straightforward to commission.

This electric heat kit is intended for use with air handlers in residential or light-commercial split-system applications where supplemental or primary electric heat is required. Per the manufacturer, compatible air handler models include WFH24Z193C, WFH36Z193C, and WFH48Z223C. It is suited for installations where a self-contained electrical disconnect is required at the air handler for NEC compliance during service.

Key Features

• 10 kW heating capacity at 240 volts, 1-phase
• Integrated circuit breaker provides on-unit electrical disconnect for service personnel
• Circuit breaker range covers 15 through 60 amps depending on configuration to protect internal components from short circuit or ground fault conditions
• Relay or contactor control compatible with standard air handler control systems
• Plug-in wiring harness for faster, cleaner installation into the air handler cabinet

Compatibility

Confirmed compatible air handler models: WFH24Z193C, WFH36Z193C, and WFH48Z223C. Verify the target air handler model before ordering, as electric heat kits are model-specific.

Installation Notes

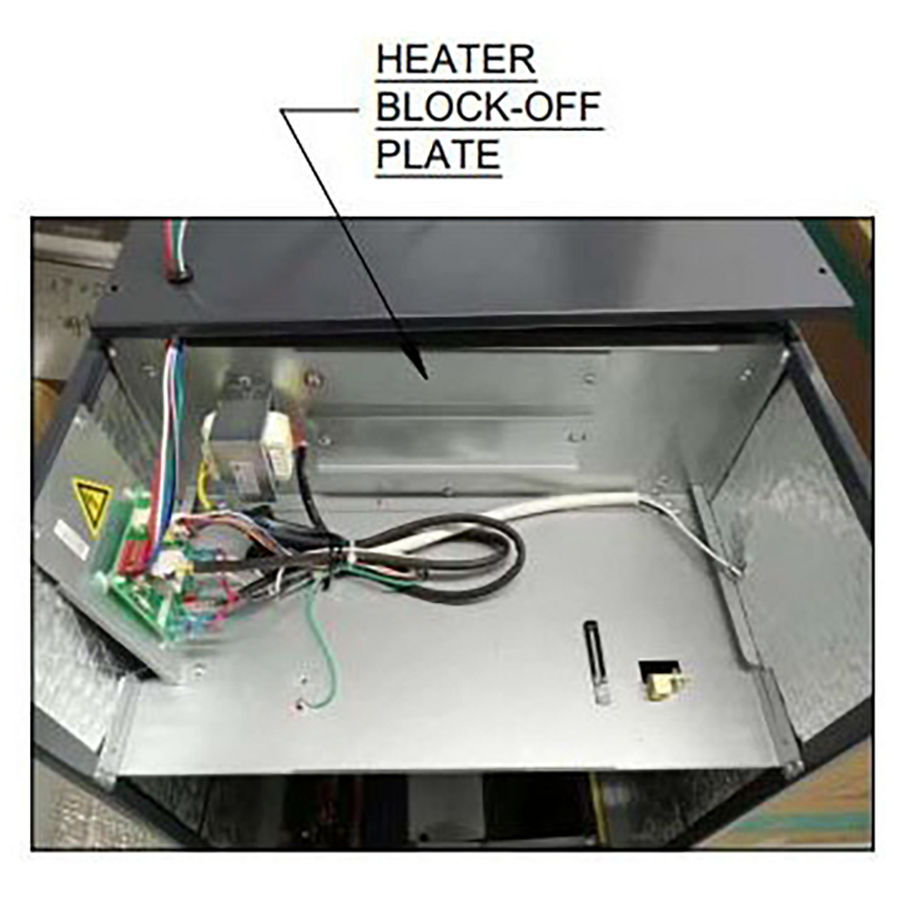

Installation must be performed by a qualified HVAC technician in accordance with NEC requirements for electric heat and the air handler manufacturer instructions. Disconnect and lock out all power to the air handler before inserting or removing the heat kit. The integrated circuit breaker serves as the local disconnect but does not replace upstream overcurrent protection sized per NEC Article 424. Do not energize the kit outside of the air handler cabinet.

Technical Specifications

• Heating Capacity: 10 kW
• Voltage: 240 volts
• Phase: 1-Phase
• Circuit Breaker Range: 15 to 60 amps
• Item Type: Electric Heat Kit
• Used On: Air Handler

Standard Information

• Brand: BREEZE
• Manufacturer Part Number: AUX10KW
