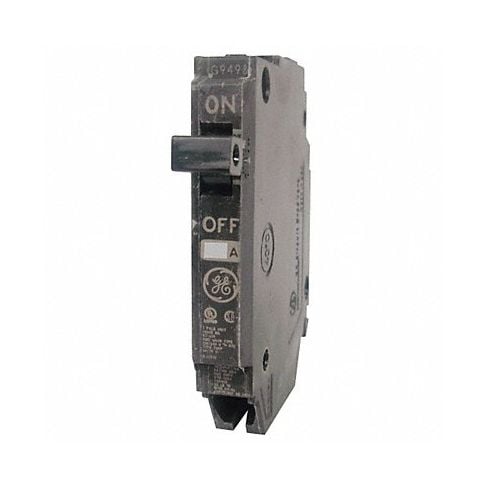

Breakers Unlimited THQP120 Circuit Breaker 20A Plug In 120/240V 1P

Product Description

The BREAKERS UNLIMITED THQP120 circuit breaker is a miniature circuit breaker designed for electrical systems. Its plug-in design eliminates the need for DIN rail installation, simplifying replacements in panelboards and load centers. UL listed for use in HACR applications, it's suitable for heating, air conditioning, and refrigeration systems. Rated at 20A and 120/240V AC, it fits lighting circuits, machine tools, and appliances.

• Plug-in design for easy installation
• AC voltage rating of 120/240V for versatility
• UL listed for use in HACR applications

Product Highlights

Offers an affordable solution for circuit protection in residential and commercial installations. Compact design suitable for small-scale electrical projects.

Product Information

Standard Information

• Brand: BREAKERS UNLIMITED
• Manufacturer Part Number: THQP120
• Country of Origin: ZZ

Technical Specifications

• Item: Miniature Circuit Breaker
• Amps: 20 A
• AC Voltage Rating: 120/240V AC
• Circuit Breaker Type: Standard
• Number of Poles: 1
• DC Voltage Rating: Not Rated
• Circuit Breaker Actuator: Toggle
• Circuit Breaker Mounting Style: Plug In
• Phase: Single
• Series: THQP
• Max. AIR Rating: 10kA at 120/240V AC
• For Use With: GE Panelboards
• Terminal Connection: Lug
• Frame Size: 100A/THQ
• Length: 3.28 in
• Width: 0.5 in
• Depth: 2.38 in
• Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
• Max. Wire Size: 8 AWG
• Standards: UL
• Manufacturer: GE
• Condensed Mfg Number: THQP120
• MPN: THQP120
• Hazardous Material: N
• Green Material Flag: N
