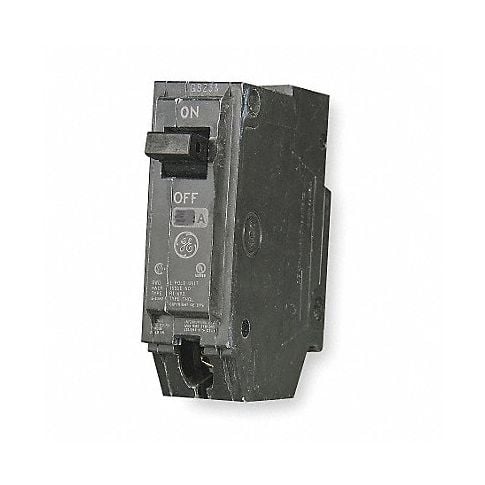

BREAKERS UNLIMITED THQL1115 Circuit Breaker 15A Plug In 120/240V 1P

Product Description

The BREAKERS UNLIMITED THQL1115 is a miniature circuit breaker designed for easy installation in panelboards and load centers. This breaker connects directly to the power supply through bus bars, removing the need for pigtail wiring and simplifying panel organization. It automatically interrupts current during faults to protect the circuit.

• Installs easily in panelboards and load centers without a DIN rail.
• Provides fault protection by interrupting current.
• UL listed for use in HACR applications.

Product Highlights

This 15A breaker operates at 120/240V AC and ensures reliable performance in various electrical systems.

Product Information

Standard Information

• Item: Miniature Circuit Breaker
• Amps: 15 A

Technical Specifications

• AC Voltage Rating: 120/240V AC
• Circuit Breaker Type: Standard
• Number of Poles: 1
• Max. AIR Rating: 10kA at 120/240V AC
• For Use With: Power Mark Gold Load Centers and AQ Lighting Panels
• Terminal Connection: Screw Clamp
• Frame Size: 100A/THQ
• Min. Wire Size: 14 AWG
• Max. Wire Size: 8 AWG
• Standards: UL
• Manufacturer: GE
• MPN: THQL1115
