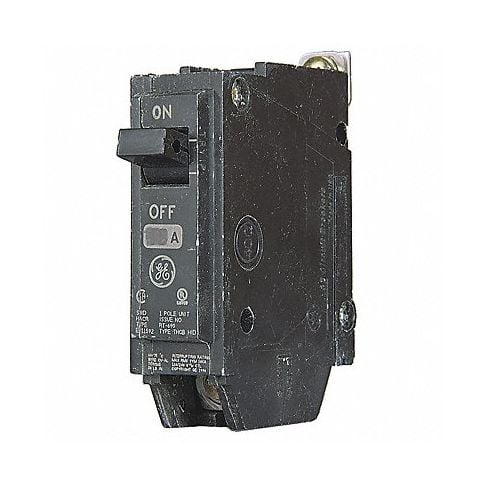

BREAKERS UNLIMITED THQB1120 Circuit Breaker 20A Bolt On 120/240V 1P

Product Description

The BREAKERS UNLIMITED THQB1120 circuit breaker is suitable for residential, commercial, and industrial use. This miniature circuit breaker is rated at twenty amperes and is designed for bolt-on installation in panelboards and load centers. It interrupts current during faults to protect electrical systems. The power supply connects via bus bars, simplifying installation by eliminating pigtail wiring.

• Bolt-on installation enhances stability
• Interrupts faulty currents to prevent equipment damage
• Utilizes bus bar for a cleaner connection

Product Highlights

This circuit breaker is UL listed and compatible with HVAC applications, making it a reliable choice for heating, air conditioning, and refrigeration units.

Product Information

Standard Information

• Item: Miniature Circuit Breaker
• Amps: 20 A

Technical Specifications

• AC Voltage Rating: 120/240V AC
• Type: Standard
• Number of Poles: 1
• DC Voltage Rating: Not Rated
• Actuator: Toggle
• Mounting Style: Bolt On
• Phase: Single
• Series: THQB
• Max AIR Rating: 10kA at 120/240V AC
• For Use With: Lighting Panels, Load Centers
• Terminal Connection: Screw Clamp
• Frame Size: 100A/THQ
• Length: 3.53 in
• Width: 1 in
• Depth: 3.28 in
• Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
• Max. Wire Size: 8 AWG
• Standards: UL Listed
• Manufacturer: GE
• Condensed Mfg Number: THQB1120
• MPN: THQB1120
• Hazardous Material: No
• Green Material Flag: No
• Country of Origin: ZZ
• CA Prop 65 Wht Label: No
• Harmonization Code: 8536200020
• GDS Category Name: Miniature Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
