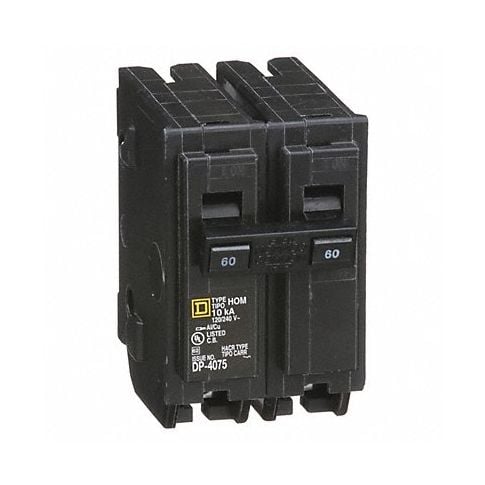

Breakers Unlimited HOM260 60A 2-Pole Plug-In Circuit Breaker

Product Description

The Breakers Unlimited HOM260 is a 60A, 2-pole circuit breaker made for plug-in installation in compatible load centers. This circuit breaker provides essential protection against overloads and short circuits in electrical systems. It connects directly to power using bus bars, eliminating the need for pigtail wires and making installation easier.

• Plug-in mounting style for quick setup.
• Offers protection from overloads and short circuits.
• Compatible with 120/240V AC single-phase circuits.

Product Highlights

This circuit breaker is suitable for use in Homeline load centers and ensures reliable performance for your electrical systems.

Product Information

Standard Information

• Brand: Breakers Unlimited
• MPN: HOM260

Technical Specifications

• Amperage: 60 A
• Voltage: 120/240V AC
• Poles: 2
• Circuit Breaker Type: Standard
• Actuator Type: Paddle
• Mounting Style: Plug In
• Compatible Load Center Series: HOM
• Phase: Single
• Max AIR Rating: 10kA at 120/240V AC
• For Use With: Homeline Load Center
• Terminal Connection: Lug
• Frame Size: 100A/HOM
• Length: 3.13 inches
• Width: 2 inches
• Depth: 2.98 inches
• Operating Temperature: 104 Degrees F
• Wire Size: 8 AWG - 2 AWG
• Standards: CSA Certified, HACR, UL Listed
• Manufacturer: Square D
• Harmonization Code: 8536200020
