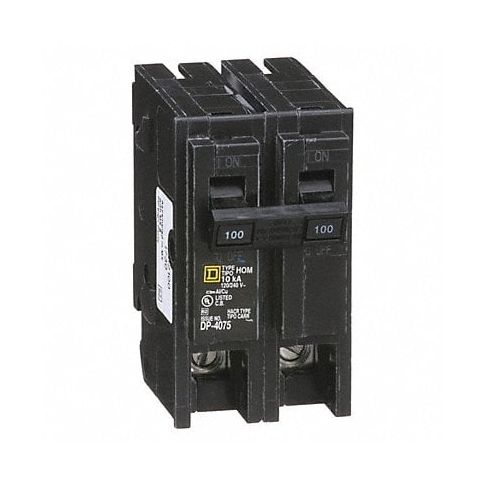

Breakers Unlimited HOM2100 Circuit Breaker 100A Plug-In

Product Description

The Breakers Unlimited HOM2100 is a 100 amp plug-in miniature circuit breaker suitable for installation in Homeline load centers. It operates on 120/240 volts AC for single-phase systems. This 2-pole circuit breaker effectively interrupts currents when low-level faults are detected. It connects directly to the power supply via bus bars, removing the requirement for pigtail wires. This product is UL Listed and CSA Certified.

• Amperage: 100 A
• Voltage: 120/240V AC
• Type: Plug-In Miniature Circuit Breaker

Product Highlights

This circuit breaker is suitable for use in residential and commercial applications. It helps protect electrical systems by interrupting faults efficiently.

Product Information

Standard Information

• Item: Miniature Circuit Breaker
• Manufacturer: Square D

Technical Specifications

• MPN: HOM2100
• Number of Poles: 2
• Max. AIR Rating: 10kA at 120/240V AC
• Compatible Panelboard/Load Center Series: HOM
• Terminal Connection: Lug
• Frame Size: 100A/HOM
• Min. Operating Temp.: 104 Degrees F
• Max. Operating Temp.: 104 Degrees F
• Min. Wire Size: 4 AWG
• Max. Wire Size: 2 AWG
• Standards: CSA Certified, HACR, UL Listed
• Country of Origin: Mexico
• Dimensions: 3.13 inches x 2 inches x 2.98 inches
