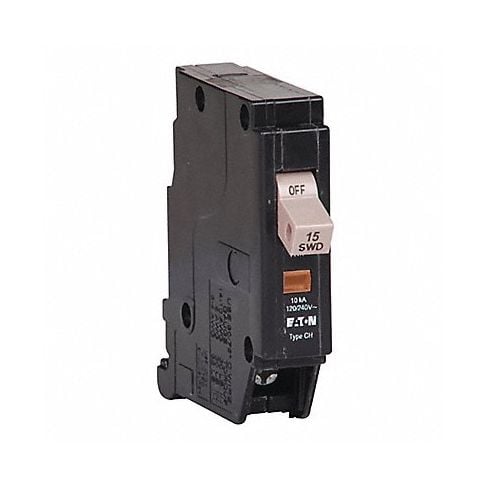

BREAKERS UNLIMITED CHF115 Breakers Unlimited Circuit Breaker 15A 1-Pole

Product Description

The BREAKERS UNLIMITED CHF115 is a circuit breaker designed for use in panelboards and load centers. This breaker is part of the CH series and is built to interrupt current during circuit faults. The connection to the power supply occurs via bus bars, helping to keep the panelboard tidy.

• 15A standard circuit breaker.
• Toggle actuator for easy operation.
• Compatible with CH series load centers for reliable installation.

Product Highlights

This circuit breaker provides essential protection against electrical faults in residential and commercial applications.

Product Information

Standard Information

• Type: Circuit Breaker
• Amps: 15 A

Technical Specifications

• AC Voltage Rating: 120/240V AC
• Circuit Breaker Type: Standard
• Number of Poles: 1
• DC Voltage Rating: Not Rated
• Circuit Breaker Actuator: Toggle
• Circuit Breaker Mounting Style: Plug In
• Compatible Panelboard/Load Center Series: CH
• Phase: Single
• Max. AIR Rating: 10kA at 120/240V AC
• For Use With: Type CH Loadcenters
• Length: 0.7 inches
• Width: 0.75 inches
• Depth: 2.6 inches
• Min. Wire Size: (1) 8 AWG, (2) 10 AWG (Cu/Al)
• Max. Wire Size: 14 AWG (Cu/Al)
• Standards: UL 489, HACR Rated
