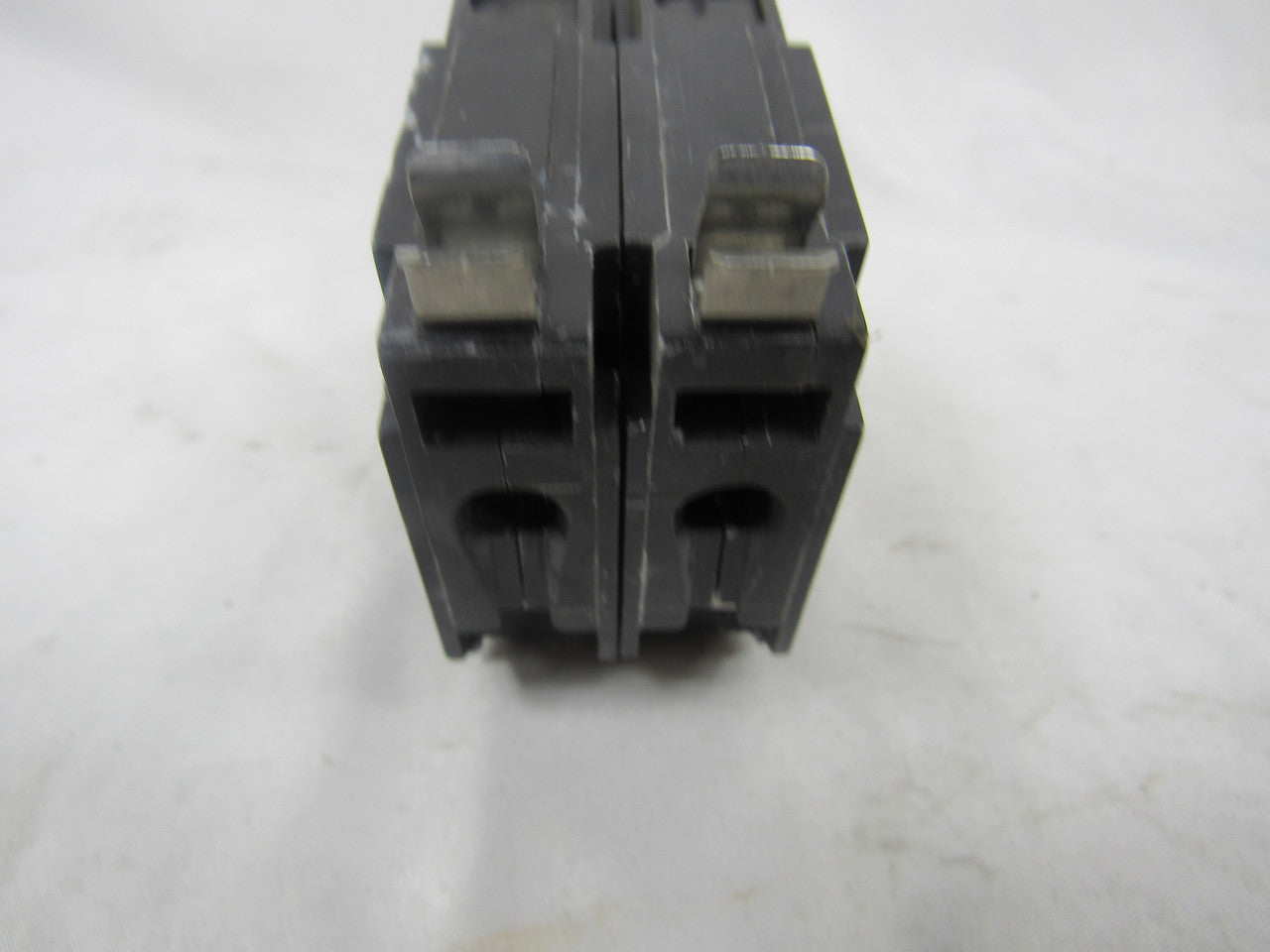

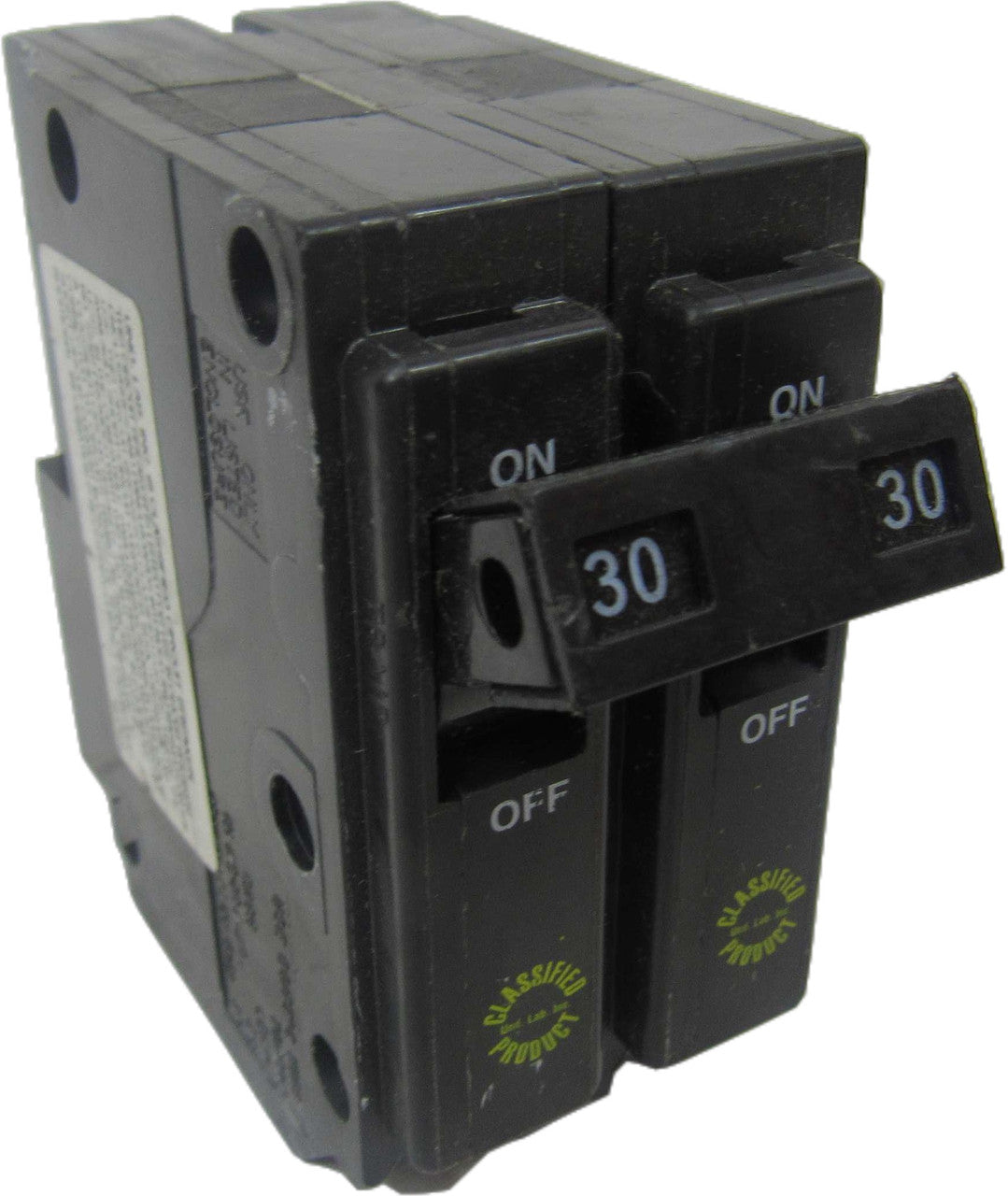

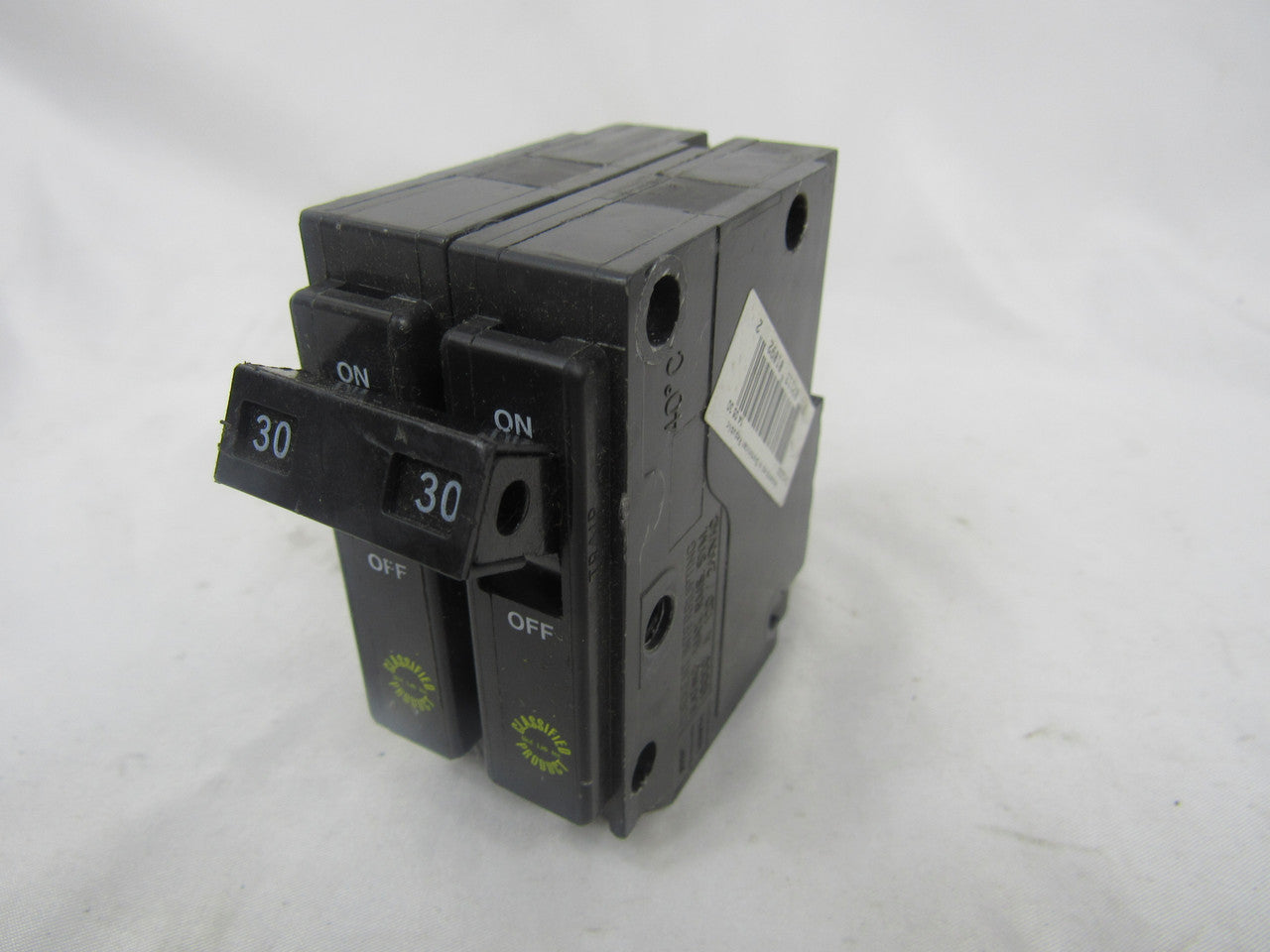

BREAKERS UNLIMITED CH-CHQ230 Circuit Breaker 30 A 3/4 Inch Replacement

Product Description

The BREAKERS UNLIMITED CH-CHQ230 is a thermal magnetic circuit breaker with a rating of thirty amps. It serves as a direct replacement for Square D Type QO breakers. Designed for use in residential applications, it fits into two three-quarter inch spaces. The unit offers thermal magnetic protection and includes a common breaker trip feature.

• Classified as a three-quarter inch thermal magnetic circuit breaker
• Two-pole design suitable for residential use
• UL classified for CH-type load centers

Product Highlights

This circuit breaker is engineered to provide reliable protection across different electrical systems with its common trip function.

Product Information

Standard Information

• Catalog Number: CHQ230
• UPC: 782113010922
• GTIN: 00782113010922

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 120/240 V AC
• Interrupt Rating: 10 kAIC
• Poles: 2
• Trip Type: Common breaker trip
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Circuit Breaker Type: CH
• Connection: Plug-On
