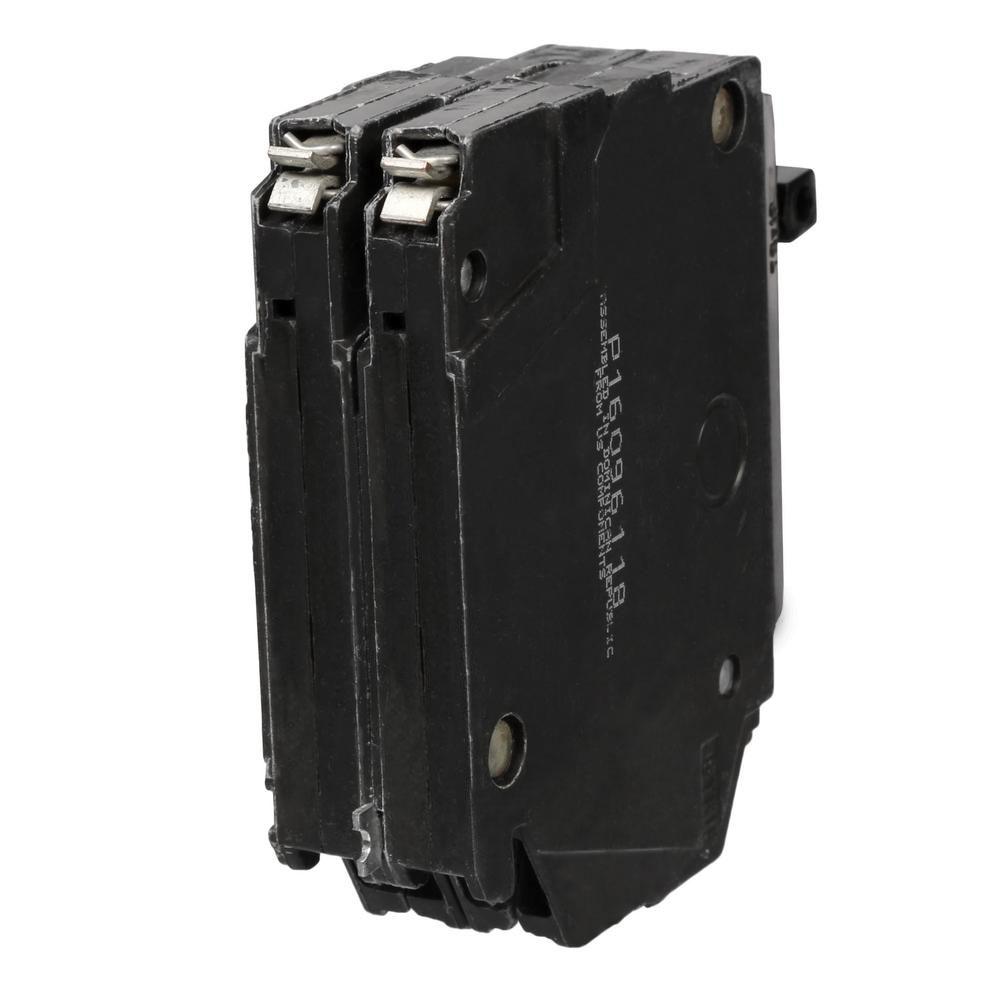

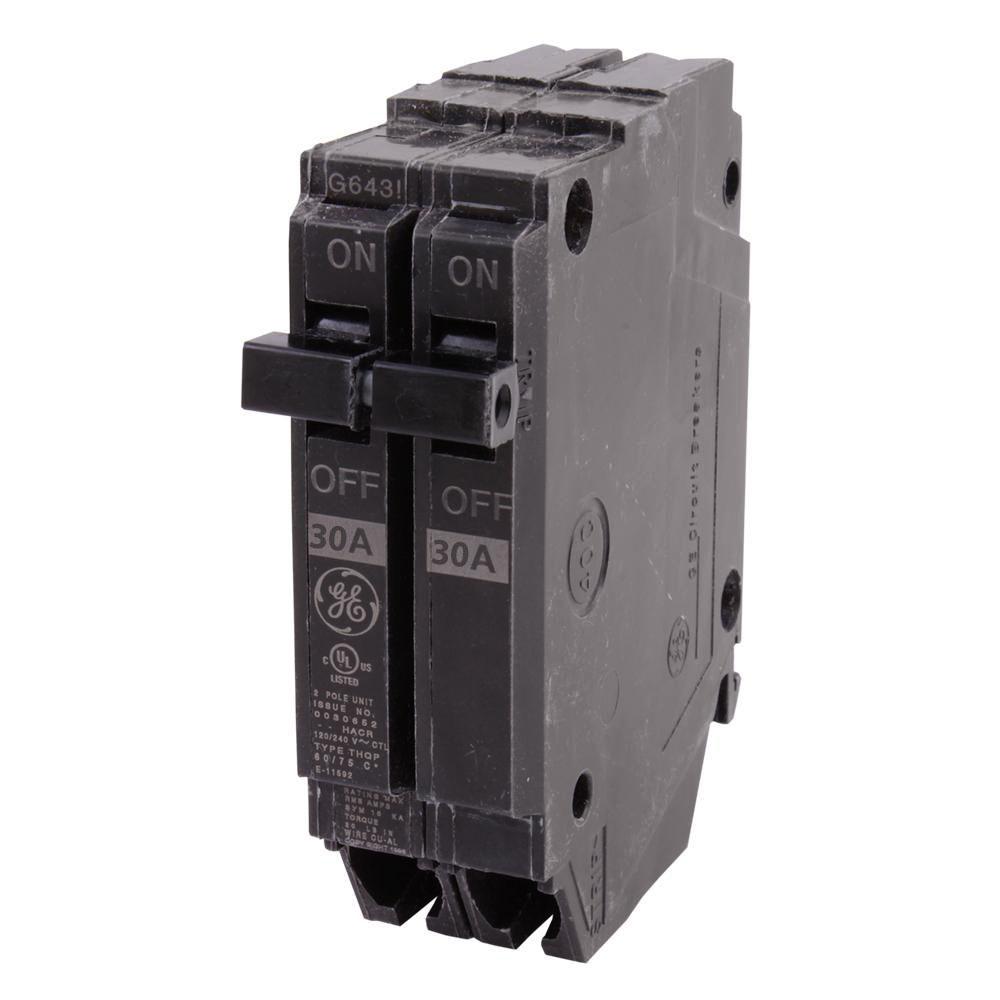

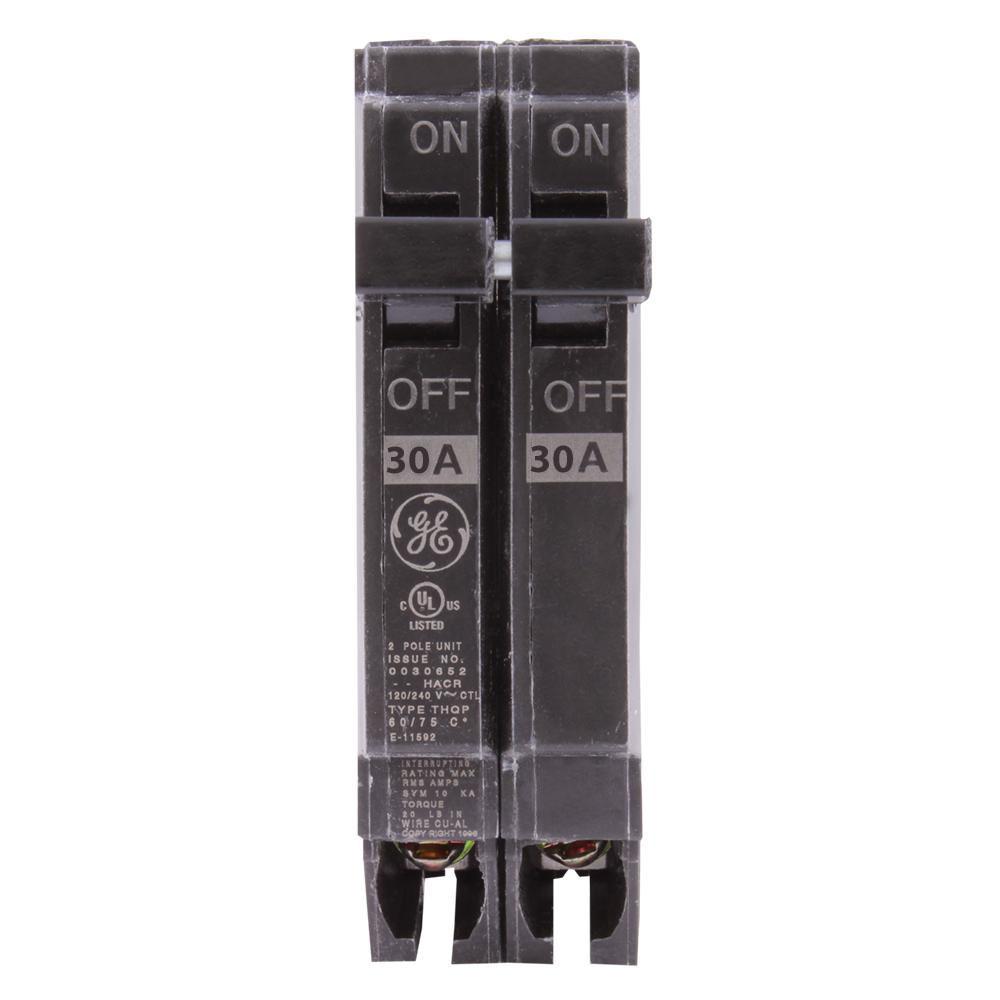

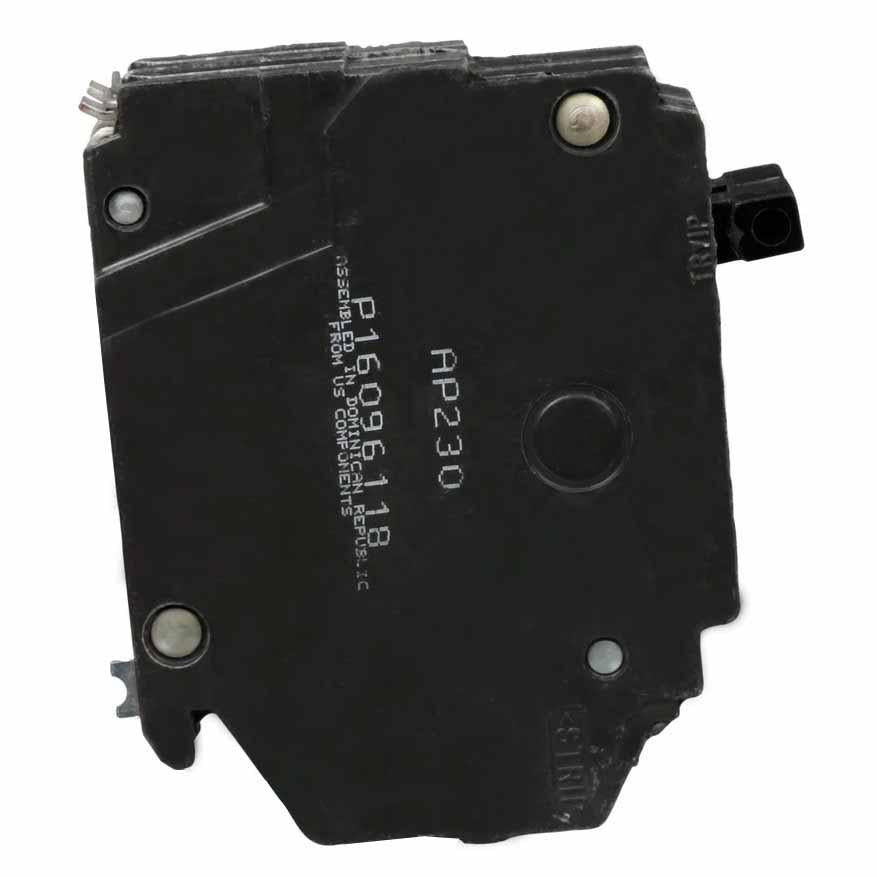

BREAKER THQP230 - GE THQP230 Circuit Breaker - 30 Amp 2-Pole

Product Description

The BREAKER THQP230 is a General Electric THQP series circuit breaker. It features a two-pole design and is rated for thirty Amps. This device operates at 120/240VAC and is made for use in GE residential panels. The circuit breaker employs thermal magnetic protection with both long-time and instantaneous trip functionalities.

• Half-width design enables space-saving installation.
• Compatible with GE residential panels.
• Certified under CSA and UL standards.

Product Highlights

This circuit breaker is engineered for reliable performance and efficient circuit management in residential settings.

Product Information

Standard Information

• Manufacturer: General Electric
• Family: THQP (Spacesaver) Series

Technical Specifications

• Cat. No.: THQP230
• Pole: 2 Pole
• Amperage: 30 Amp
• Voltage: 120/240VAC
• Connection: Plug-In
• Phase: 1
• Interrupting Rating: 10kAIC at 120/240VAC
• Dimensions (H x W x L): 3 inches x 1 inch x 3 inches
• Approval: UL
• Max Wire Size: 4 MCM
• Min Wire Size: 8 MCM
• Terminal Connection: Load Side Lug
• Actuator Type: Toggle
