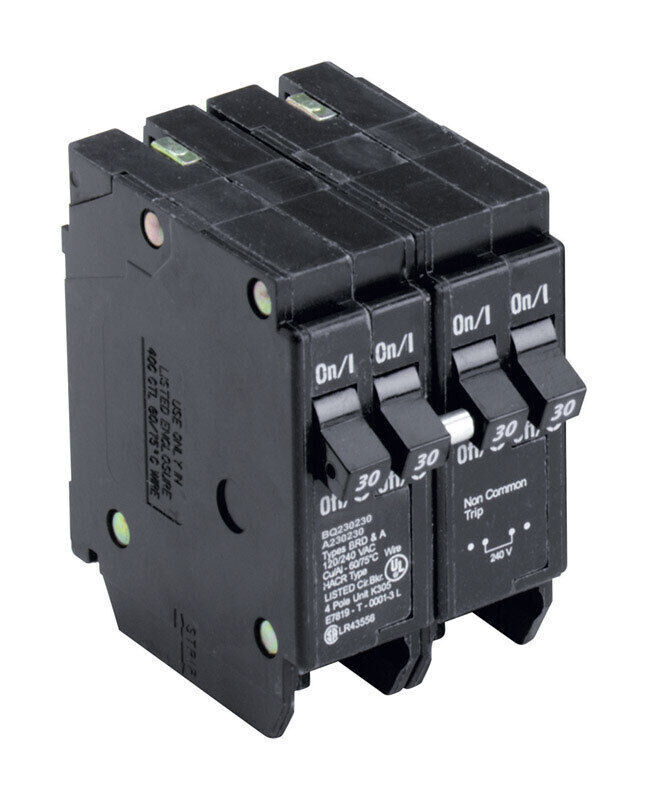

BREAKER BQ230230 Circuit Breaker 10 kAIC 120/240V AC

Product Description

The BREAKER BQ230230 is a thermal-magnetic circuit breaker ideal for use in BR-style load centers. This four-pole breaker has a ten kAIC interrupt rating and is suitable for both one hundred twenty and two hundred forty volts AC systems. It mounts using a plug-on method and supports wire sizes from fourteen to four AWG, both copper and aluminum. Each pole of this breaker operates independently, ensuring enhanced safety and control within electrical systems.

• Four-pole circuit breaker with independent trip feature
• Plug-on installation compatible with BR load centers
• Rated for 120/240V AC applications

Product Highlights

Product Information

Standard Information

• Brand: BREAKER
• MPN: BQ230230

Technical Specifications

• Series: BQ
• Length: 1.4 inches
• Height: 3.1 inches
• Width: 3.2 inches
• Weight: 2.5 pounds
• Certifications: UL 489
• Used With: Type BR Loadcenters
• Amperage Rating: Two-Pole 30A
• Voltage Rating: 120/240V
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-On
• Wire Size: #14-4 AWG Cu/Al
• Number of Poles: 4
• Current Type: AC
• Number of Phases: 1
