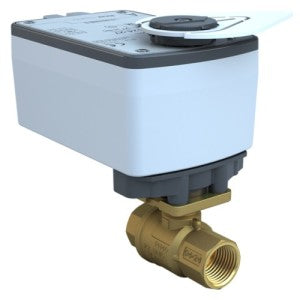

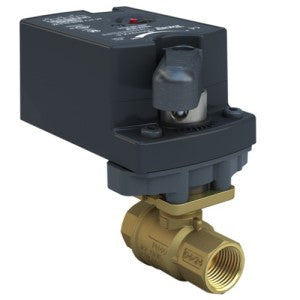

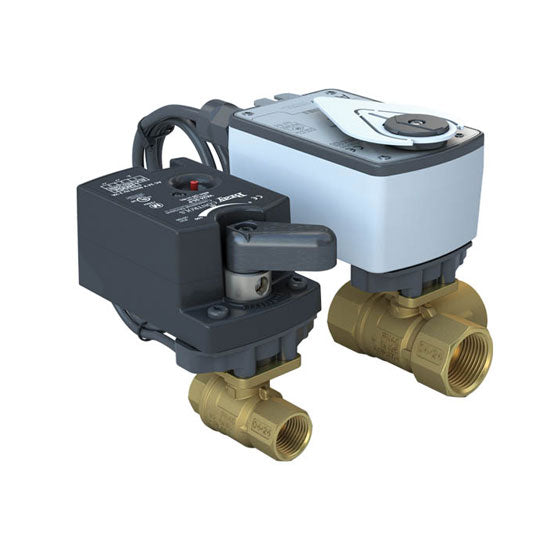

Bray ST2-1-2-12 Characterized Ball Valve

Product Description

The Bray ST2-1-2-12 is a characterized ball valve suitable for HVAC applications. This valve includes a forged brass body and stainless steel ball and stem, providing durability and reliability. It can handle water temperatures up to 284 degrees Fahrenheit and saturated steam up to fifteen PSI, ensuring effective performance in various settings.

• Forged brass body with stainless steel components.
• Suitable for both water and steam applications.
• Optimized for HVAC systems.

Product Highlights

This product is ideal for fan coils, VAV reheat coils, chilled beams, and air handling units.

Product Information

Standard Information

• Type: Assembly
• Connection: NPT Threaded

Technical Specifications

• Valve Size: 1 in
• Valve Configuration: 2-WAY
• Cv Rating: 11.7 Cv
• Close Off Pressure: 200 psi
• Actuator Type: Non-Spring Return
• Medium: Water/Glycol
• Valve Type: Standard Pressure
• Enclosure Rating: IP42, NEMA 2
• Input Voltage: 24 VAC/DC
• Pattern: 2-way
• Actuator Power Type: Electric
• Fail Position: Last
• Control Signal: Floating, Two Position
• Body Material: Brass
• Seats Material: PTFE
• Max Diff. Pressure: 50 PSI
• Max Temp: 284F
• Max Steam Pressure: 15 PSI
• Control Type: On/Off
