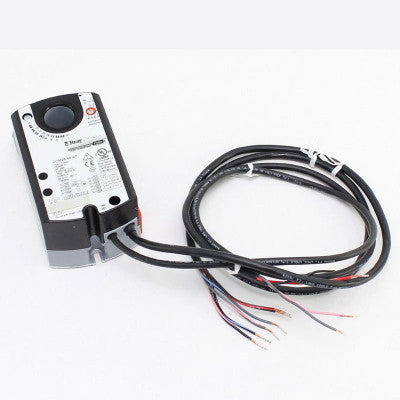

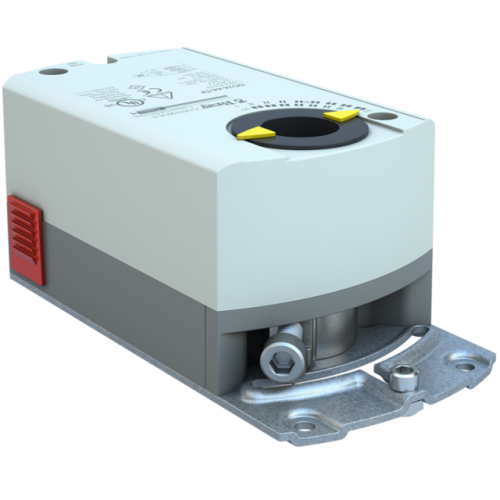

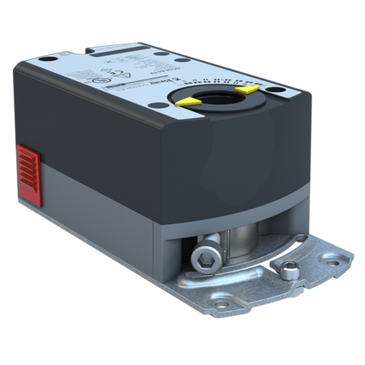

Bray DCM24-88-P Damper & Valve Actuator 24 VAC 88 lb-in

Product Description

The Bray DCM24-88-P is a reliable damper and valve actuator that functions at twenty-four volts alternating current and offers a torque of eighty-eight pound-inches. This actuator supports modulating control signals and utilizes a non-spring return mechanism for efficient operation. It is ideal for use in building automation systems and comes equipped with various selectable features through jumper or DIP switches. Designed to be maintenance-free, this actuator meets ISO 9001 and Six Sigma standards, ensuring consistent quality.

• Modulating control signal for precision control
• Non-spring return mechanism for ease of use
• Maintenance-free operation

Product Highlights

This actuator is built for versatility, making it suitable for various HVAC and automation tasks.

Product Information

Standard Information

• Brand: Bray
• MPN: DCM24-88-P

Technical Specifications

• Product Class: Actuators
• Product Type: Electric Actuators
• Actuator Control Signal: Modulating
• Actuator Action: Non-Spring Return
• Supply Voltage: 24 VAC
• Torque: 88 lb-in
• Enclosure Rating: IP54, NEMA 2
• Manual Override: Yes
