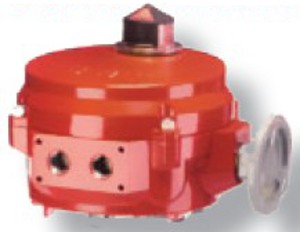

Bray BRY-S70-24-0201-SV Electric Actuator 600 in-lb N4

Product Description

The Bray BRY-S70-24-0201-SV is an electric actuator designed for use in various applications. It operates using a proportional control signal and is compatible with butterfly valves. The actuator is powered by twenty-four VAC and features a torque rating of six hundred inch-pounds.

• Control Signal Range: 0 to 10 VDC / 4 to 20 mAdc
• Auxiliary Switch: 2 SPDT
• Protection Rating: NEMA 4

Product Highlights

This actuator integrates advanced features for effective performance in controlling valve movements.

Product Information

Standard Information

• Brand: Bray
• Manufacturer: Bray International, Inc.

Technical Specifications

• Actuator Type: Electric
• Control Signal: Proportional
• Loss of Power Type: Non-Spring Return
• Power Input Voltage: 24 VAC
• Leads and Connections: Terminal Block
• Torque: 600 in-lb
• Mechanical Movement: Rotary
• Additional Features: Heater
• Product Series: Serve Pro S70
• Actuator Use: Butterfly Valves
