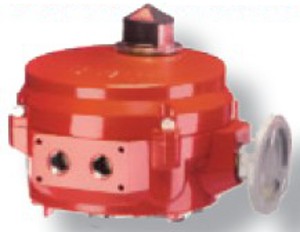

Bray BRY-S70-24-0201-H Actuator Electric 24 VAC

Product Description

The Bray BRY-S70-24-0201-H is an electric actuator designed for precise control of valves. This model operates using a twenty-four volt alternating current (VAC) and is engineered for two-position control, enabling reliable on/off operation. The actuator is also equipped with a non-spring return feature, making it suitable for various applications that require consistent operation.

• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Torque: 600 in-lb

Product Highlights

This actuator is optimized for butterfly valves, featuring a robust design with an auxiliary switch for added functionality. The NEMA 4 protection rating ensures reliability in demanding environments.

Product Information

Standard Information

• Brand: Bray
• Model: BRY-S70-24-0201-H

Technical Specifications

• Power Input Voltage: 24 VAC
• Mechanical Movement: Rotary
• Leads and Connections: Terminal Block
• Auxiliary Switch: 2 SPDT
• Protection Rating: NEMA 4
• Product Line: Serve Pro S70
