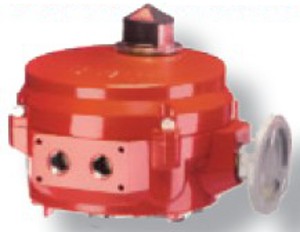

Bray BRY-S70-120-0301-H Electric Actuator 120 VAC

Product Description

The Bray BRY-S70-120-0301-H is an electric actuator designed for controlling butterfly valves in various applications. This actuator operates on 120 VAC and features a two-position control signal, ideal for on/off operations. The actuator utilizes a terminal block for leads and connections, ensuring simple wire management.

• Torque rating of 600 in-lb allows effective valve operation.
• Non-spring return mechanism enhances safety during power loss.
• NEMA 4 protection rating makes it suitable for outdoor or damp environments.

Product Highlights

This actuator is part of the Serve Pro S70 series from Bray, known for reliability and versatility in operation.

Product Information

Standard Information

• Manufacturer: Bray International, Inc.
• Product Line: Serve Pro S70

Technical Specifications

• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Non-Spring Return
• Power Input Voltage: 120 VAC
• Leads and Connections: Terminal Block
• Torque: 600 in-lb
• Mechanical Movement: Rotary
• Auxiliary Switch: 2 SPDT
• Additional Features: Heater
• Protection Rating: NEMA 4
