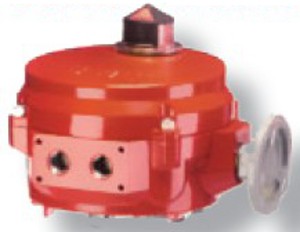

Bray BRY-S70-120-0121-SV Electric Actuator 120 VAC Butterfly Valves

Product Description

The Bray BRY-S70-120-0121-SV is a reliable electric actuator designed for controlling butterfly valves. It operates with a power input of 120 VAC and utilizes a proportional control signal in the range of zero to ten VDC or four to twenty mAdc. This unit features a non-spring return mechanism and is suitable for various applications in North America.

• Electric actuator type for efficient valve control
• Torque rating of six hundred in-lb for robust performance
• NEMA 4 protection rating for enhanced durability

Product Highlights

This actuator is ideal for automatic reset applications with an IP56 degree of protection. Its rotary motion and high torque make it suitable for demanding environments.

Product Information

Standard Information

• Brand: Bray
• Manufacturer: Bray International, Inc.

Technical Specifications

• Control Signal: Proportional
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Non-Spring Return
• Power Input Voltage: 120 VAC
• Torque: 600 in-lb
• Mechanical Movement: Rotary
• Auxiliary Switch: 2 SPDT
• Protection Rating: NEMA 4
• Actuator Use: Butterfly Valves
