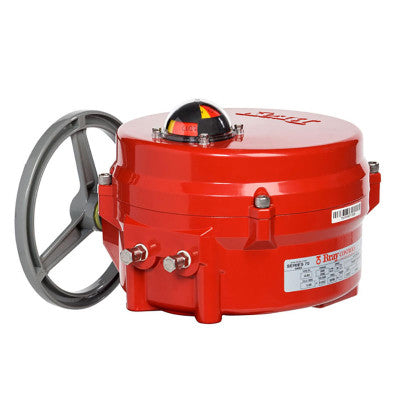

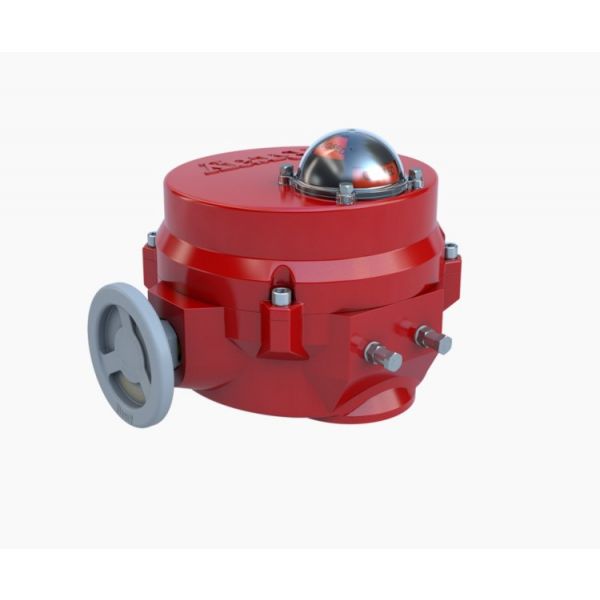

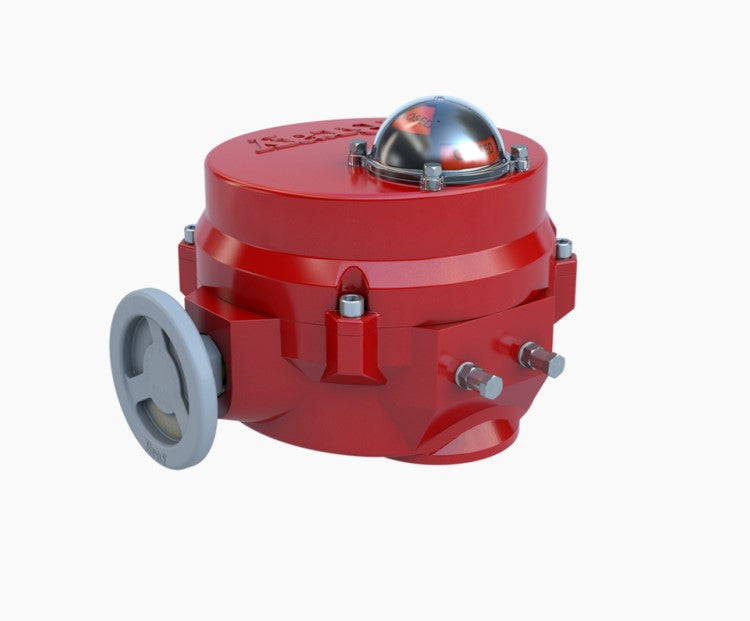

BRAY 70-0081H Industrial Electric Actuator

Product Description

The Bray 70-0081H is an electric actuator designed for quarter-turn operation, operating at 120 VAC. It delivers a torque output of eight hundred lb-in, making it effective for various industrial applications. The unit features a two-position control signal for ease of use and is enclosed in a NEMA 4 rated housing that protects against dust and water ingress.

• Operates on a 120 VAC power supply.
• Provides 800 lb-in of torque.
• Features a NEMA 4 enclosure for protection.

Product Highlights

This actuator is suitable for various industrial environments and applications where reliable and efficient operation is required.

Product Information

Standard Information

• Manufacturer: Bray Commercial
• Part Number: 70-0081H

Technical Specifications

• Actuator Type: Actuator Only
• Input Voltage: 120 VAC
• Torque: 800 in-lb
• Enclosure Rating: IP65, IP67, NEMA 4, NEMA 4X
• Control Signal: Two Position
• Actuator Power Type: Electric
• Fail Position: Normally Open
• With Auxiliary Switch: Yes
• Options: Heater, Manual Override Handwheel
• Close Off Pressure: 50 psi
• Actuator Action: Non-Fail Safe
• Conduit Connection: 2 x 3/4 NPT
• Weight: 13 lbs
