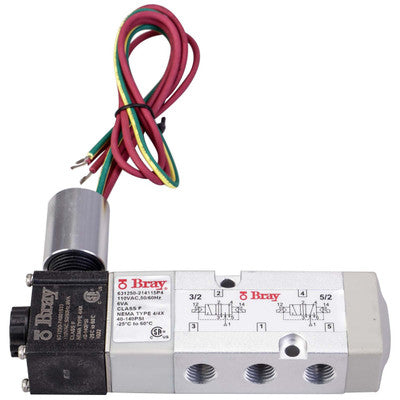

Bray 63125A-214115P4 Single Coil Solenoid 110V Replaces 621250-21410536

Product Description

The BRAY 63125A-214115P4 is a single coil solenoid operating at 110 VAC with a 6 Watt/VA power consumption. Designed for electric on/off control of S92/93 pneumatic actuators, this solenoid features a NEMA 4/4X rating and is CSA certified. It provides a CV of 1.4 and includes flying leads for connection, along with a manual override for operational flexibility. This unit replaces MPN 621250-21410536.

• Designed for electric on/off control of S92/93 pneumatic actuators.
• Operates on 110 VAC with 6 Watt/VA power consumption and flying leads.
• Features NEMA 4/4X rating, CSA certification, and a manual override.

Product Highlights

Single coil solenoid for pneumatic actuator control with 110 VAC operation and NEMA 4/4X rating.

Product Information

Standard Information

• Brand: BRAY
• Manufacturer Part Number: 63125A-214115P4

Technical Specifications

• Input Voltage: 110 VAC
• Coil Type: Single Coil
• Power Consumption: 6 Watt/VA
• NEMA Rating: 4/4X
• CV Value: 1.4
• Certifications: CSA Certified
• Replaces MPN: 621250-21410536
• Connection: Flying Leads
• Manual Override: Yes
