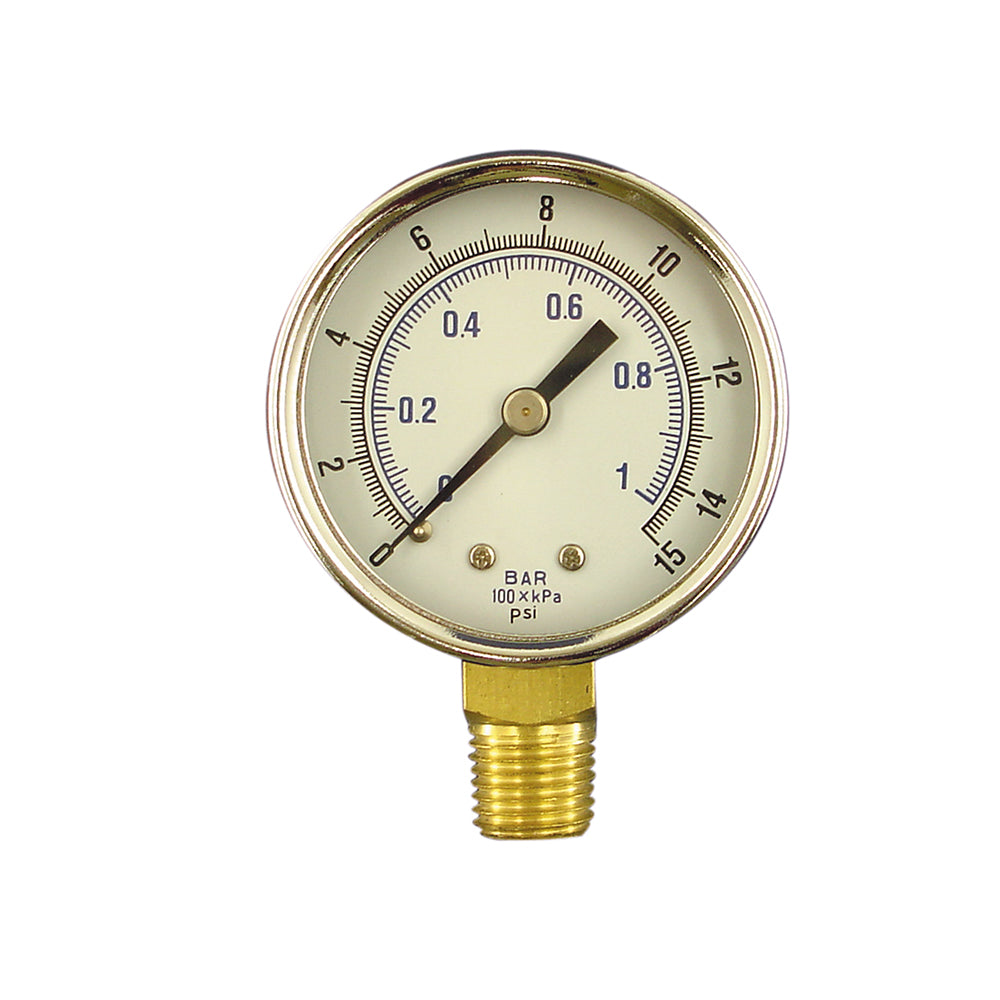

Braxton Harris Company PG2-15 Pressure Gauge 2 inches x 15 lb

Product Description

The Braxton Harris Company PG2-15 is a 2-inch pressure gauge with a 15 lb range and a 1/4-inch MIP brass lower connection. It features a steel case and a shatterproof face with graduations at 1/5 lb increments. The gauge measures pressure in air, water, oil, gas, and other media not corrosive to brass. It connects via its lower 1/4-inch MIP brass fitting for inline installation.

• 2-inch face with 15 lb range and 1/5 lb graduations
• 1/4-inch MIP brass lower connection for inline mounting
• Steel case and shatterproof face; compatible with air, water, oil, gas and non-corrosive media

Product Highlights

Compact 2-inch pressure gauge with 15 lb range, 1/4-inch MIP brass lower connection, steel case, and shatterproof face.

Product Information

Standard Information

• Brand: BRAXTON HARRIS COMPANY
• Manufacturer Part Number: PG2-15

Technical Specifications

• Brand: Braxton Harris Company
• Part Number: PG2-15
• Product Type: Pressure Gauge
• Face Size: 2"
• Range: 15 lb
• Graduation: 1/5 lb increments
• Connection: 1/4" MIP brass lower connection
• Case Material: Steel
• Face: Shatterproof
• Compatible Media: Air, water, oil, gas or any medium not corrosive to brass
• UPC: 693374009993
• Unit of Measure: Each
• Catalog Page: D20
