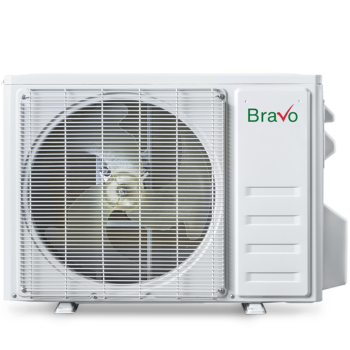

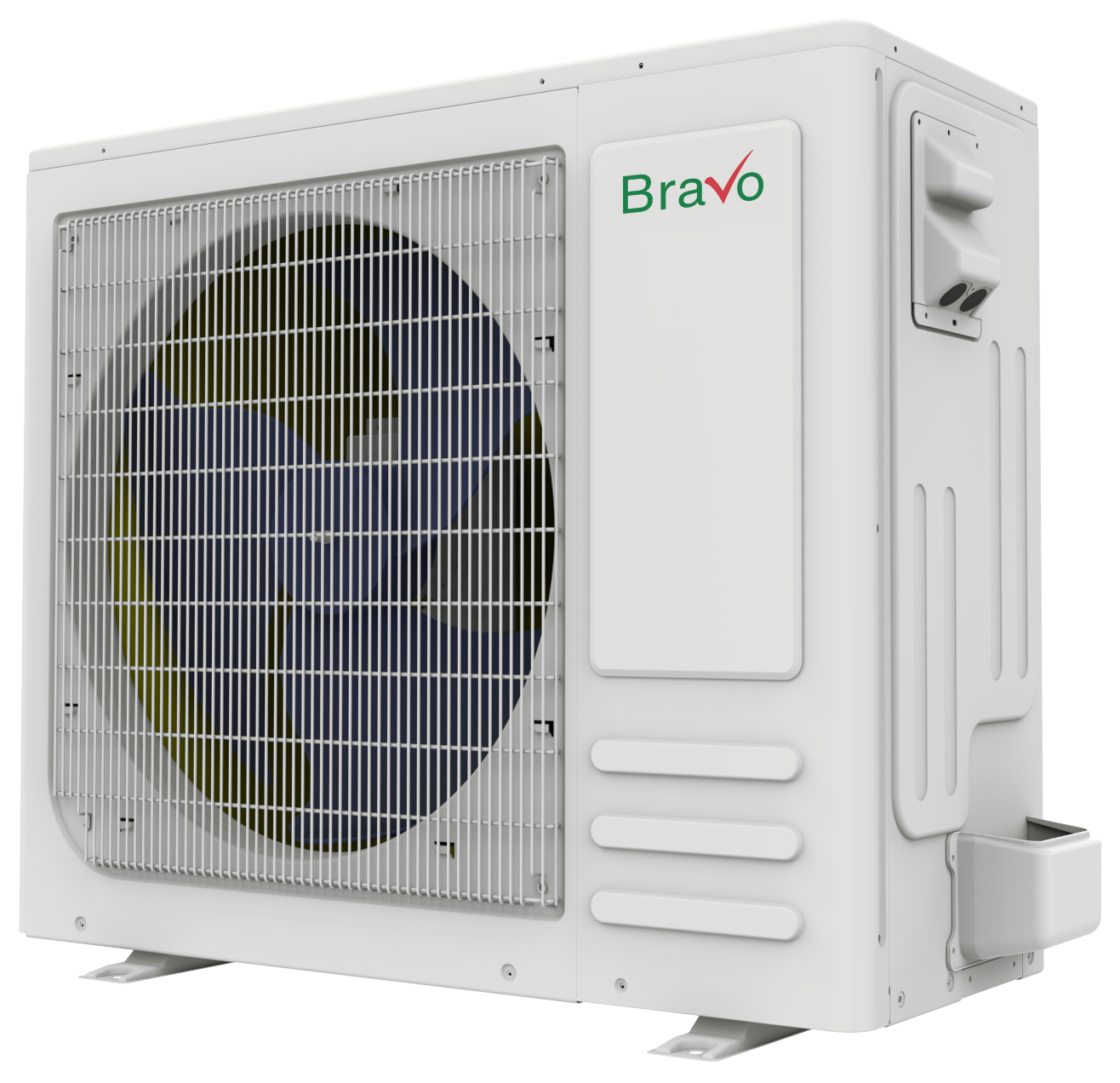

Bravo BRV-SD48HI-230VO Outdoor Heat Pump Unit 48000 Btu/h Single Zone Inverter R32 208-230V

Product Description

The Bravo BRV-SD48HI-230VO is a 48,000 BTU/h single-zone inverter-driven heat pump outdoor unit designed for year-round heating and cooling in larger residential and light commercial applications. Running on R32 refrigerant at 208-230 volts single phase, this side-discharge outdoor unit pairs with a compatible Bravo multi-position ducted air handler to form a complete central ducted mini split system. Rated at 16.5 SEER2 and 8.5 HSPF2, it delivers efficient performance across a broad operating range. Licensed HVAC technicians handle installation, refrigerant charging, and commissioning.

This outdoor unit is engineered for single-zone ducted applications where a central air handler is preferred over a wall-mounted indoor unit. It suits larger living spaces, open-plan commercial suites, and retrofit ducted installations where duct runs already exist or are being added. The system operates down to low ambient temperatures, making it suitable for heating-dominant climates in addition to mixed-use cooling applications. Confirmed paired indoor unit is the BRV-MP48AHUW-230VI multi-position air handler.

Key Features

• 48,000 BTU/h cooling and heating capacity for larger single-zone applications
• 16.5 SEER2 efficiency rating reduces operating costs in cooling-dominant climates
• 8.5 HSPF2 heating efficiency supports year-round heat pump operation
• R32 refrigerant with lower global warming potential compared to R410A
• Inverter-driven compressor modulates capacity to match load demand
• Side-discharge airflow configuration suits equipment yard and rooftop placements where top-discharge clearances are restricted
• 208-230V single-phase power supply compatible with standard residential and light commercial electrical services

Compatibility

Confirmed compatible paired indoor unit is the Bravo BRV-MP48AHUW-230VI multi-position ducted air handler. Designed as a matched single-zone heat pump system component — do not mix with indoor units outside the Bravo matched system pairing.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to the use of R32 refrigerant, which is classified as mildly flammable (A2L). Disconnect and lock out all electrical power before servicing the unit. Follow NEC requirements for disconnect sizing, wire gauge, and overcurrent protection based on the unit minimum circuit ampacity. Outdoor unit placement must maintain manufacturer-specified clearances on all sides, and refrigerant line sets must be sized, leak-tested, and evacuated to proper vacuum before charging.

Technical Specifications

• Cooling Capacity: 48,000 BTU/h
• SEER2: 16.5
• EER: 9
• HSPF2: 8.5
• Voltage: 208-230 volts, 1-phase, 60 Hz
• Refrigerant: R32
• System Type: Single Zone Inverter Heat Pump
• Discharge Type: Side Discharge
• Unit Function: Outdoor Unit

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-SD48HI-230VO
